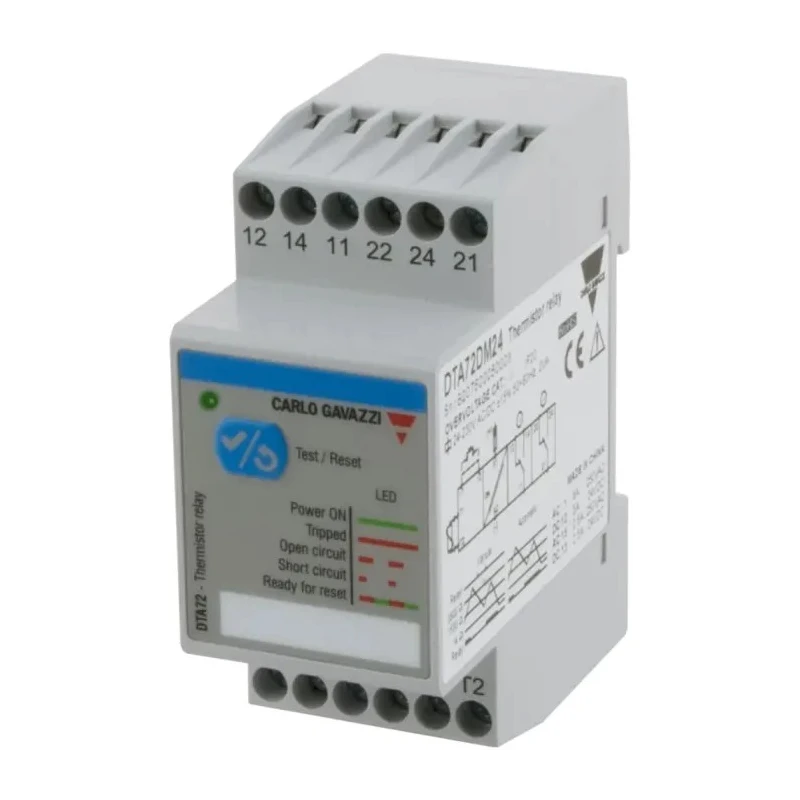

Carlo Gavazzi Monitoring Relay 1 Phase SPDT DIN Rail 24V AC 240V AC DTA72DM24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Carlo Gavazzi |
| Height | 81mm |
| Length | 67.2mm |
| Model | DTA72DM24 |
| IP Rating | IP20 |
| Width | 35.5mm |
| Mount Type | DIN Rail |
| Series | DTA72 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Standards/Approvals | RoHS, UL, CE, EMC, CSA |
| Contact Current | 8A |
| Supply AC Voltage | 24, 240V ac |
Key Features
- Monitors up to 6 motor temperatures via internal motor sensors.
- Includes 2 outputs, a TEST switch, and local or remote manual RESET function.
- Bi-colour front LED shows power status, alarm, and reset readiness through colors and blinking.
- Features screw-type terminals for secure electrical connections.
- Compact design with low profile DIN rail mounting for easy installation.
- IP20 rated for electrical safety and protection against solid objects.
- Supports contact current of up to 8A for reliable switching.
- Operates within a temperature range of -60°C to +60°C for industrial environments.
Product Description
Carlo Gavazzi DTA72DM24 Monitoring Relay is a single-phase, SPDT configuration device engineered for DIN Rail mounting. Operating at supply AC voltages of 24V and 240V, this relay is designed for industrial applications requiring reliable motor thermistor monitoring with up to 6 motor temperature inputs sourced internally.
The relay is equipped with two outputs, a TEST switch, and both local and remote manual RESET options. Its bi-colour LED indicator on the front panel provides clear visual feedback for power status, PTC failures, alarms, and reset readiness through distinct colors and blinking signals, improving operational safety and troubleshooting efficiency.
Featuring a compact, low-profile design measuring 81mm in height, 35.5mm in width, and 67.2mm in length, the DTA72DM24 relay fits standard DIN Rail mounting systems facilitating straightforward installation in control panels and industrial automation setups.
The device includes screw terminal connections providing secure and stable wiring connections. With an IP20 rating, it offers protection against solid foreign objects while maintaining easy access for maintenance. Operating reliably within a temperature range up to 60°C, it suits various ambient environments encountered in manufacturing, HVAC, electrical automation, and monitoring systems.
Rated for contact currents up to 8A, this relay complies with widely recognized safety and quality standards including RoHS, UL, CE, EMC, and CSA. Manufactured in China, it forms part of the trusted DTA72 series known for robustness and precise monitoring performance.
Monitors multiple motor temperatures through internal sensing up to six channels. Equipped with dual outputs and manual RESET facilitating flexible control. Distinct bi-colour LED indicator for real-time status and fault diagnostics.
Compact DIN Rail mounting design for efficient panel integration. Screw terminal connectivity for secure and reliable wiring. IP20 protection rating suitable for industrial settings. Thermal operating range ensures functionality under varied temperature conditions.
Complies with global industry standards: RoHS, UL, CE, EMC, CSA. Contact current capacity rated to 8 amperes ensures reliable switching. Ideal for electrical automation, manufacturing, HVAC monitoring, and industrial process control applications.
Explore the range of Monitoring Relays at EnvMart for tailored industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The monitoring relay features a single-pole double-throw (SPDT) contact configuration.
This model can operate at a maximum temperature of 60°C.
It operates at supply AC voltages of 24V and 240V.
The relay can monitor up to six motor temperatures via internal sensors.
It is rated for contact currents up to 8A.
It features screw-type terminals for secure electrical connections.
The relay has an IP20 rating, providing protection against solid foreign objects.
The dimensions are 81mm in height, 35.5mm in width, and 67.2mm in length.
It is designed for DIN Rail mounting, allowing for easy installation in control panels.
It complies with RoHS, UL, CE, EMC, and CSA standards.
Yes, it includes both local and remote manual RESET options.
The monitoring relay is manufactured in China.
