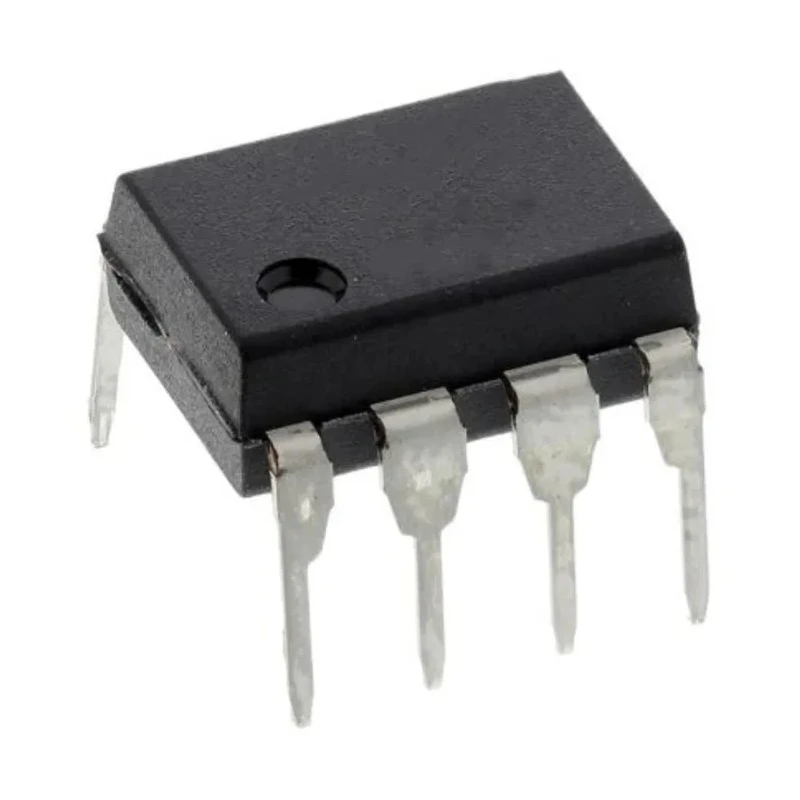

Maxim Integrated Operational Amplifier, Surface Mount, DIP Package, 8-Pin, 10V Supply, 40 kHz Gain Bandwidth MAX406BCPA+
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Height | 4.45mm |
| Length | 9.91mm |
| Model | MAX406BCPA+ |
| Width | 7.87mm |
| Mount Type | Surface |
| Series | MAX |
| Output Current | 600μA |
| Maximum Operating Temperature | 70°C |
| Package Type | DIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 10V |
| Minimum Supply Voltage | 2.5V |
| GBP - Gain Bandwidth Product | 40kHz |
| Input Bias Current | 10 pA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 20V/ms |
| Input Offset Current | 200 μA |
Key Features
- Operates with a supply voltage range from 2.5 V to 10 V.
- Single channel with 8-pin DIP surface mount package design.
- Low input bias current of 10 pA ensures precision in signal amplification.
- Slew rate of 20 V/ms enables fast response suitable for dynamic signals.
- Wide operating temperature range from 0°C to 70°C for various environmental conditions.
- Output current capability of 600 μA with rail-to-rail output swings.
- Compact dimensions with length 9.91 mm, width 7.87 mm, and height 4.45 mm.
- Low quiescent current of max 1.2 μA per amplifier conserves power.
Product Description
Maxim Integrated MAX406BCPA+ is a precision operational amplifier designed for low power and high accuracy applications. It features a 40 kHz gain bandwidth product and operates with a single supply voltage ranging from 2.5 V up to 10 V. Encased in an 8-pin Dual Inline Package (DIP) suitable for surface mounting, this operational amplifier delivers reliable performance in industrial, laboratory, and medical semiconductor settings.
The device offers an exceptionally low input bias current of 10 picoamperes, making it ideal for electrometer amplifiers and precision measurement systems. Its input offset voltage of 3 mV and a slew rate of 20 V/ms allow for fast signal processing while maintaining accuracy.
This operational amplifier features rail-to-rail output swings and an output current up to 600 microamperes, suitable for driving loads in embedded and field applications. With quiescent current consumption maxing at 1.2 microamperes per amplifier, this component is energy efficient, perfect for battery-operated devices such as cordless phones, glucose meters, and pH meters.
Its operational temperature range of 0°C to 70°C ensures functionality in controlled industrial environments and embedded medical instruments. The small form factor with precise dimensions (9.91 mm length, 7.87 mm width, 4.45 mm height) facilitates integration into compact PCB designs.
Operates at low supply voltage from 2.5 V to 10 V. Precision electrometer and glucose meter applications. Battery-powered system compatibility with minimal power drain. Rail-to-rail output for maximum signal flexibility.
Suitable for medical instruments and panel meters. Compact 8-pin DIP surface mount package. Robust single channel amplifier with 40 kHz bandwidth. Fast slew rate supports dynamic signals. Low input offset and bias currents ensure measurement accuracy.
Widely used in sensors, PLCs, and intrinsically safe systems.
This Maxim Integrated operational amplifier provides dependable performance for high-precision analog signal conditioning and amplification needs in electronics manufacturing, embedded systems, and medical device contexts. It is a critical component in semiconductor amplifier product lines focused on energy efficiency and signal integrity. For more products in Operational Amplifiers and semiconductor components, explore the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a supply voltage range from 2.5 V to 10 V.
The gain bandwidth product is 40 kHz.
It has an output current capability of 600 μA.
The input bias current is 10 pA, ensuring precision in signal amplification.
The slew rate is 20 V/ms, which enables fast response suitable for dynamic signals.
It has compact dimensions of 9.91 mm in length, 7.87 mm in width, and 4.45 mm in height.
It operates within a temperature range from 0°C to 70°C.
It is encased in an 8-pin Dual Inline Package (DIP) suitable for surface mounting.
The input offset voltage is 3 mV.
It is suitable for precision electrometer amplifiers and various medical instruments such as glucose meters and pH meters.
The maximum quiescent current consumption is 1.2 μA per amplifier, which conserves power.
It features a single channel design.
