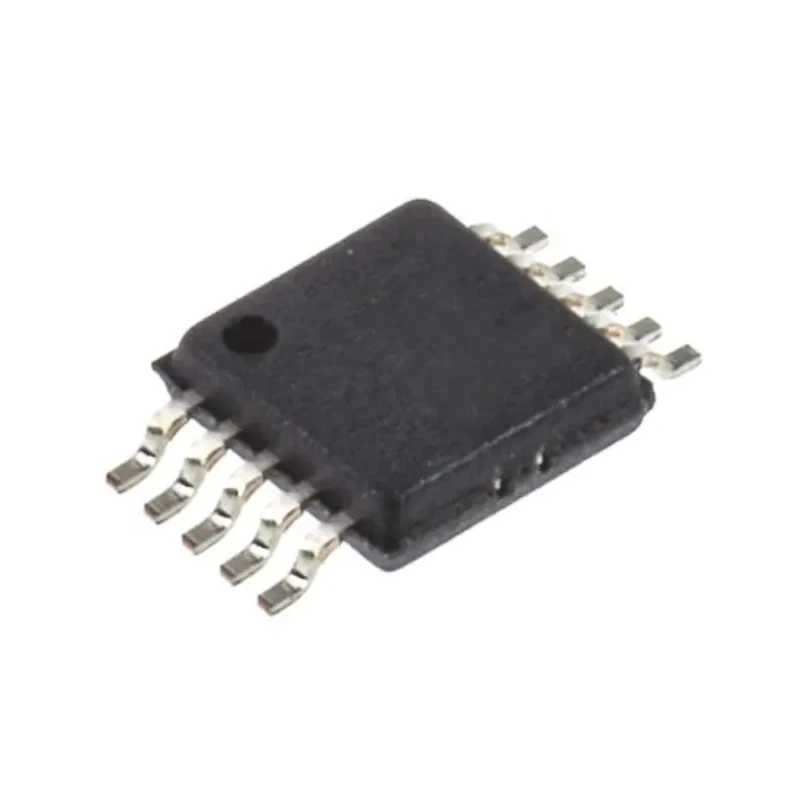

Maxim Integrated Operational Amplifier 1.4 MHz Gain Bandwidth Product, 10-Pin Surface Mount μMAX Package MAX9924UAUB+T

Maxim Integrated MAX9924UAUB+T is a surface mount operational amplifier featuring a 1.4 MHz gain bandwidth product, designed for precision amplification and analog signal processing in electronic circuits. This device comes in a compact 10-pin μMAX package, enabling use in space-constrained environments and standard surface mount technology (SMT) processes.

This single-channel amplifier provides low input offset voltage of 3 mV which supports accurate signal conditioning. It also features low input bias current (6 nA) and low input offset current (2 nA), making it ideal for applications demanding minimal input error currents.

The amplifier supports a power supply range from 4.5 V to 5.5 V, ensuring stable operation across varying voltage environments common in automotive and industrial electronics. A slew rate of 2.3 V/μs ensures the device can respond quickly to rapid input signal changes, delivering precise amplification for dynamic signals.

Physically, the MAX9924UAUB+T measures 3.16 mm in length, 3.12 mm in width, and 0.95 mm in height, complying with modern compact electronic component size requirements. It is engineered to operate across a wide temperature range from -40°C to 125°C, suitable for demanding industrial, automotive, and commercial applications.

This operational amplifier is well suited for automotive sensor interfaces such as camshaft, crankshaft, and vehicle speed VRS interfaces, where reliable signal comparison and noise immunity are critical. Its differential input stage enhances noise rejection, and the adaptive peak threshold supports precise signal detection and zero-crossing detection functionalities for accurate phase information.

Key features include the precision amplifying capability and user-enabled internal adaptive peak thresholds or external flexible thresholds, enabling application-specific tuning for enhanced performance.

Gain bandwidth product of 1.4 MHz delivers versatile signal amplification. Low input offset voltage and bias current reduce measurement error. Wide supply voltage operation at 4.5 V to 5.5 V. Wide operating temperature range supports automotive and industrial use.

Compact 10-pin μMAX surface mount package promotes PCB space efficiency. Enhanced noise immunity with differential input stage for improved performance. User-configurable adaptive peak threshold improves signal detection accuracy.

Zero crossing detection ensures precise phase determination. Package includes one 10-pin μMAX operational amplifier MAX9924UAUB+T, mounted for surface mount applications.

The Maxim Integrated MAX9924UAUB+T Operational Amplifier is a robust solution for industrial, automotive, and commercial electronic circuit designers requiring reliable amplification, low noise, and compact form factor. Explore additional electronic components and amplifiers in the Electronics & Electricals category at EnvMart.
