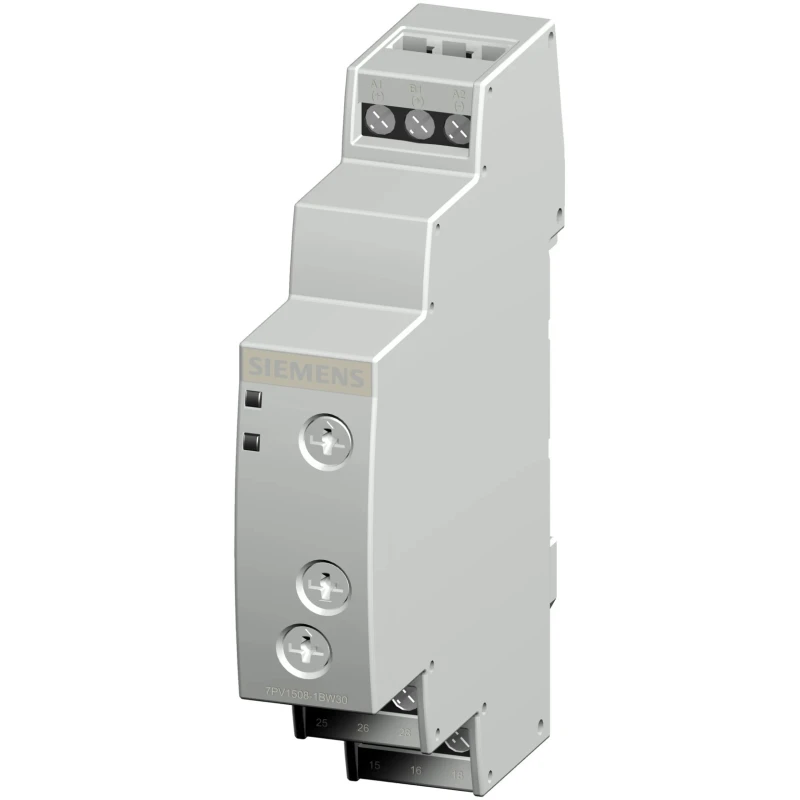

Siemens 7PV15 Series Multifunction DIN Rail Timer Relay, 2-Contact DPDT, 12 to 240 V AC/DC, 0.05 to 360000 s 7PV1508-1BW30

Siemens 7PV1508-1BW30 is a multifunction DIN rail timer relay designed for precise timing applications in industrial, automation, and electrical control systems. It features two change-over (DPDT) contacts capable of switching up to 3A at 300V, suitable for diverse control tasks. The relay supports a wide supply voltage range from 12 to 240 V both in AC and DC, providing flexible integration options.

Its timing range is extensively adjustable from 0.05 seconds to 360000 seconds (100 hours), enabling accurate control for complex automation sequences. The compact form factor with dimensions of 17.5 mm length, 67 mm width, and 90.5 mm height ensures easy installation in standard control panels with DIN rail mounting. Screw terminals facilitate secure and stable electrical connections.

The device is rated IP20, providing protection against solid objects and ensuring safety in industrial environments. It operates reliably over a temperature range of -25°C to 55°C, making it suitable for harsh conditions. Certified to international standards EN 61000-6-2 and IEC 61812-1, this timer relay guarantees electromagnetic compatibility and performance integrity.

Typical use cases for the Siemens 7PV1508-1BW30 include industrial automation, manufacturing process control, HVAC systems, water treatment automation, and electrical panel control where precise timing is crucial. Its multifunction capability allows switching between different timer functions tailored to specific control needs.

Manufactured in the Czech Republic, Siemens ensures consistent quality and durability. This timer relay is ideal for engineers and technicians requiring a reliable timing solution with broad voltage and timing ranges combined with robust build quality.

Multifunction Timer Relay suitable for various industrial applications. Operates from 12 to 240 V AC/DC supply voltage range. Two change-over DPDT contacts with 3A contact current capacity. Wide timing range from 0.05 seconds up to 360000 seconds (100 hours).

Robust DIN rail mounting with screw terminal connections. IP20 rated protection ensures safe operation in control panels. Compact size: 17.5 mm length, 67 mm width, and 90.5 mm height. Operating temperature ranges from -25°C to 55°C.

Conforms to EN 61000-6-2 and IEC 61812-1 standards for reliability. Manufactured in Czech Republic with quality assurance. Explore the complete range of Siemens relays and timer solutions in EnvMart for advanced industrial and automation needs.
