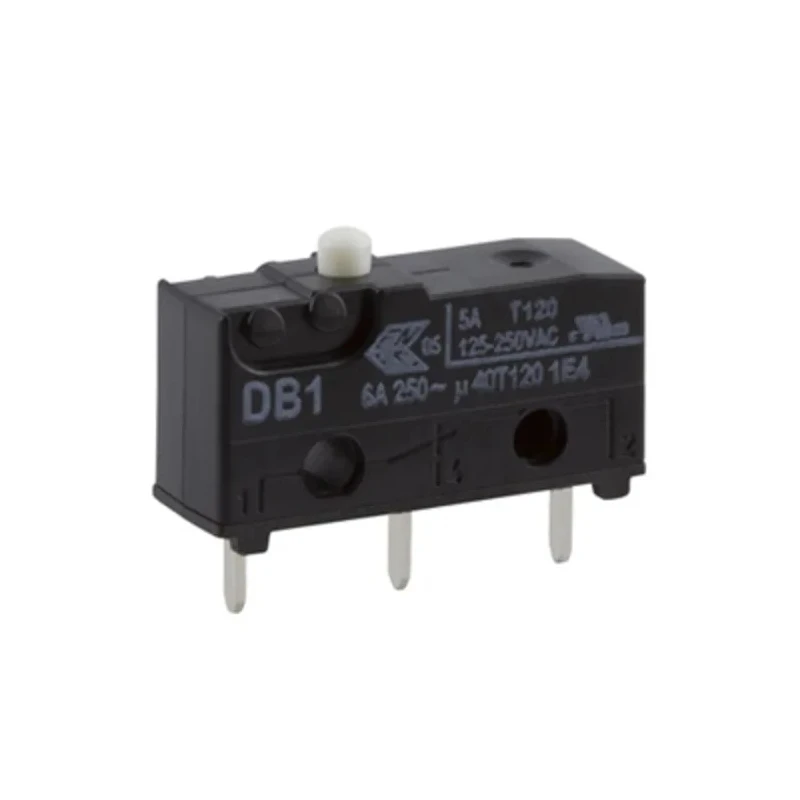

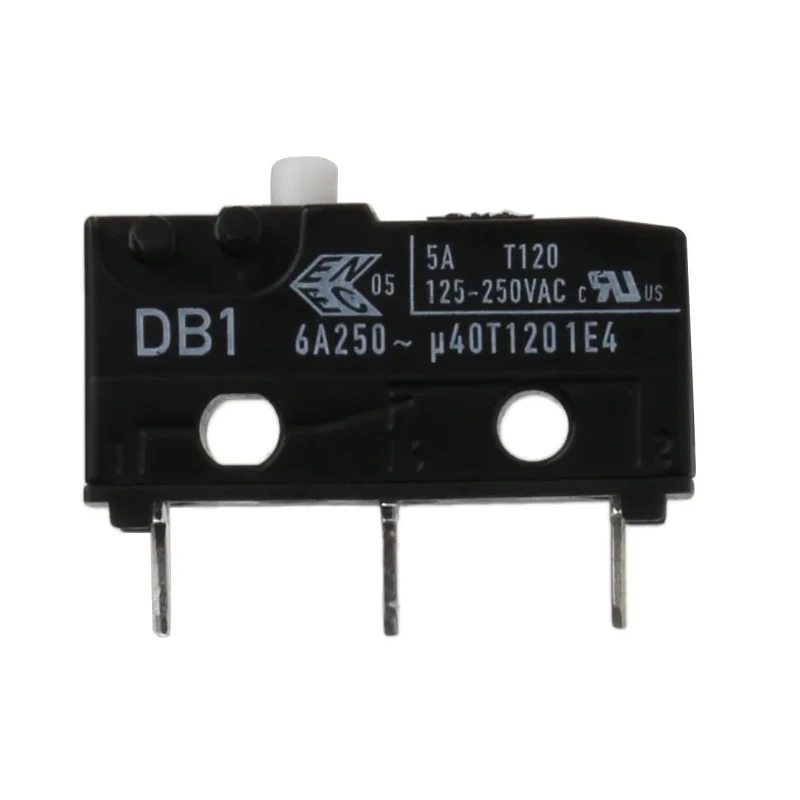

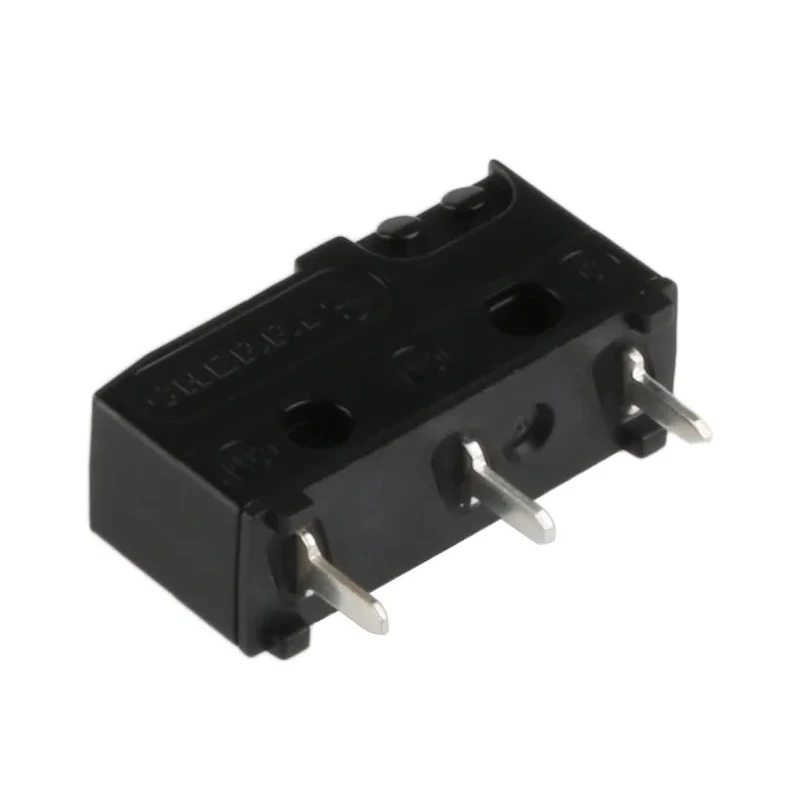

ZF Button Micro Switch, Through Hole Terminal, 6A, 250 V AC, SPDT, IP50 DB1C-C1AA
Specifications
| Country of Origin | India |
|---|---|
| Brand | ZF |
| Model | DB1C-C1AA |
| IP Rating | IP50 |
| Housing Material | Polyethylene Terephthalate, Polyamide |
| Series | DB1 |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Actuator Type | Button |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Contact Current | 6A |
| Operating Force | 1.47N |
| Mechanical Life | 15000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | DB Subminiature |
| PCB BUTTON MICROSWITCHBrand | NEUTRAL |
| ZF Button Micro Switch, PCB Terminal Terminal, 10.1A, 250 V ac, SPDT, IP50Brand | ZF |
| Crouzet Plunger Micro Switch, Solder Terminal, 5A, 250 V ac, SPDTBrand | Crouzet |
Key Features
- Designed with a button actuator for precise manual operation.
- Through hole terminal ensures durable PCB mounting stability.
- Supports 6A switch contact current at 250 V AC for various electrical applications.
- Constructed with polyethylene terephthalate and polyamide housing materials for robustness.
- Features single pole double throw (SPDT) contact configuration.
- IP50 rated for moderate protection against dust and contaminants.
- Operates reliably between -40°C and 120°C temperature range.
- Requires 1.47N operating force for actuation, ensuring tactile feedback.
Product Description
ZF DB1C-C1AA Button Micro Switch is a DB series miniature microswitch featuring a robust button spherical head actuator with a through hole terminal design. It supports a switch contact current of 6A at 250 V AC and uses a reliable single pole double throw (SPDT) contact configuration. The housing materials include polyethylene terephthalate and polyamide, contributing to the switch's durability and insulation performance.
This microswitch offers an operating force of 1.47 Newtons and functions over a wide temperature range from -40°C to 120°C, making it suitable for harsh industrial conditions. With a mechanical life rated over 15 million operations, it ensures long-term reliability in automated and electrical control systems.
The IP50 rating provides moderate protection against ingress of dust and solids, suitable for electrical and automation use cases. The switch is certified RoHS compliant and is well-suited for manufacturing, industrial automation, HVAC controls, and general electrical switching applications.
Button actuator design for effective user control. Through hole terminals for secure PCB mounting and connectivity. 6A contact current rating at 250 V AC accommodates various electrical loads. High mechanical endurance exceeding 15 million actuations.
Wide operating temperature supports diverse industrial environments. IP50 protection rating for environmental resistance. Reliable SPDT contact configuration for versatile switching. Housing built of polyethylene terephthalate and polyamide for strength and insulation.
Applicable in industrial, manufacturing, electrical, and automation sectors.
This product is listed under EnvMart’s comprehensive Micro Switch category. Explore more ZF microswitch models and other switching solutions to meet your industrial and manufacturing automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switch contact current for this model is 6A at 250 V AC.
This micro switch operates reliably within a temperature range of -40°C to 120°C.
It features a single pole double throw (SPDT) contact configuration.
The ZF DB1C-C1AA has an IP50 rating, providing moderate protection against dust and contaminants.
The required operating force for this micro switch is 1.47 Newtons.
The housing is constructed from polyethylene terephthalate and polyamide, which contribute to its durability and insulation performance.
It has a mechanical life rated for over 15 million operations, ensuring long-term reliability.
This model features through hole terminals, ensuring secure PCB mounting and connectivity.
Yes, this micro switch is certified RoHS compliant.
It is suitable for various applications in manufacturing, industrial automation, HVAC controls, and general electrical switching.
This micro switch belongs to the DB series.
The actuator type for this model is a button actuator, designed for precise manual operation.
