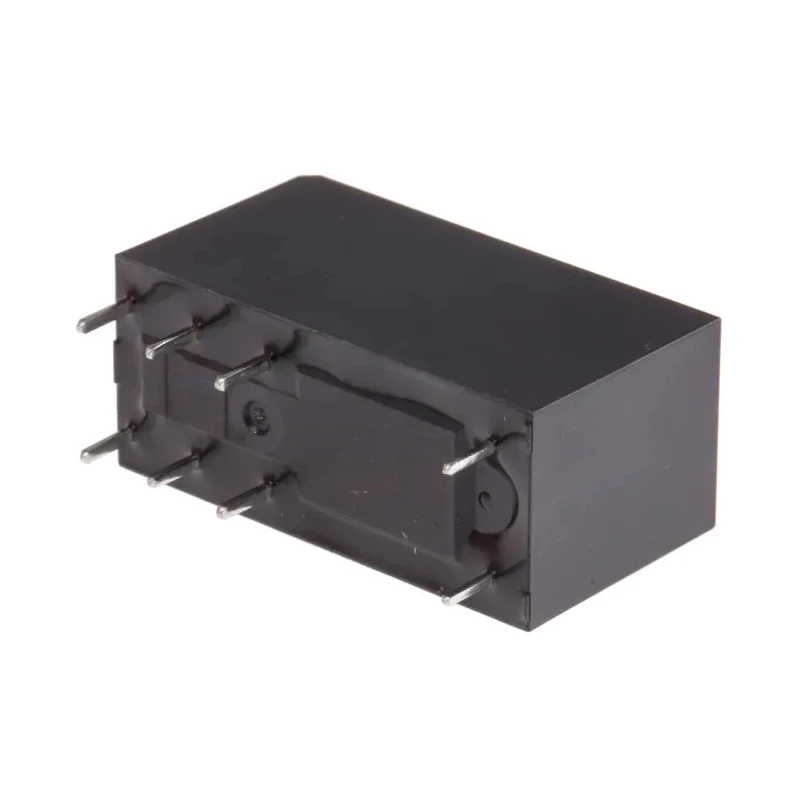

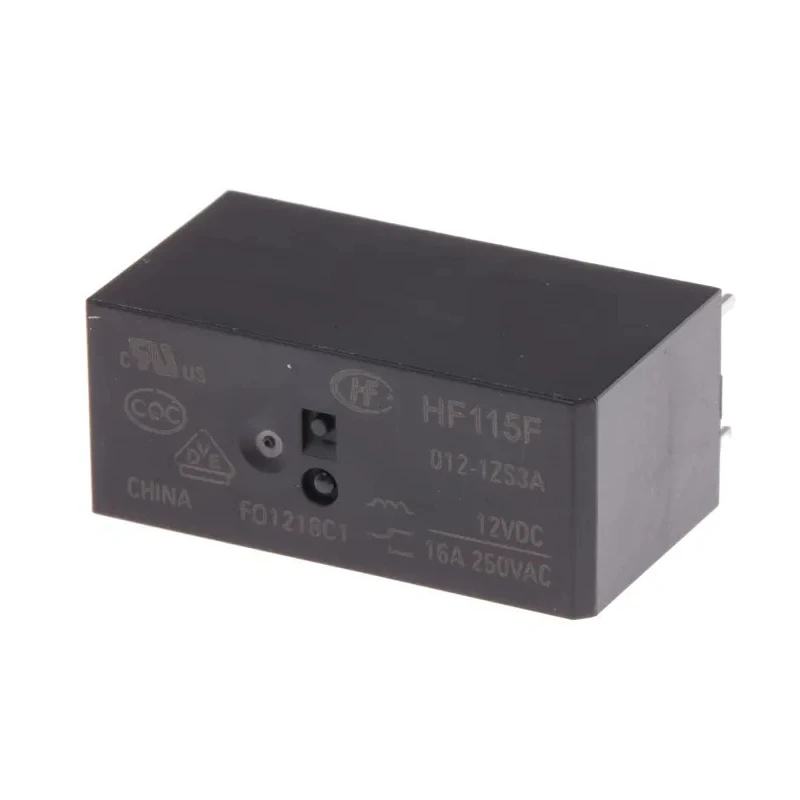

RS PRO PCB Power Relay 12V DC Coil 16A Switching Current SPDT 476-808

RS PRO 476-808 PCB Power Relay is a durable and compact electromechanical relay designed for efficient switching applications on printed circuit boards. Featuring a 12V DC coil and SPDT contact configuration, this relay supports up to 16A switching current, making it suitable for a wide range of electrical control tasks in industrial and commercial equipment.

This relay is built with a silver alloy contact material ensuring low contact resistance (100mΩ) and stable performance over its operational lifetime. Its low profile of 15.7mm height and dimensions of 29mm length and 12.7mm width allow for minimal spatial footprint on PCB assemblies.

With coil resistance at 360Ω and coil power consumption at 400mW, the RS PRO 476-808 relay maintains energy efficiency while providing reliable switching. It operates effectively within temperature limits of -40°C to 85°C, enabling use in various environmental conditions.

The relay boasts high dielectric strength rated at 5kV between coil and contacts, combined with a surge voltage handling capability up to 10kV. This ensures protection against electrical transients and contributes to enhanced durability. The relay meets international standards including RoHS, IEC 60335-1, UL, VDE, and CQC certifications, guaranteeing compliance and safety for industrial applications.

The PCB mounting type with through-hole terminals simplifies assembly and integration into control panels, automation systems, and other electrical devices. Its robust design with a creepage distance of 10mm contributes to operational safety and reduces risk of electrical faults.

Common applications include industrial automation, HVAC systems, manufacturing machinery, and electrical control circuits requiring reliable and efficient power relay switching functionality.

Equipped with a 12V DC coil for efficient actuation. Supports a switching current of up to 16A for robust performance. Single Pole Double Throw (SPDT) contact configuration ensures versatile switching. Designed for PCB mounting with through-hole terminal type for secure installation.

Operates reliably between -40°C and 85°C temperature range. Low profile design with a maximum height of 15.7mm supports compact assemblies. Contact material utilizes silver alloy to maintain low resistance and high conductivity.

Dielectric strength of 5kV between coil and contacts provides excellent isolation. Complies with RoHS standards and IEC 60335-1 for safety and environmental compliance. Surge voltage tolerance up to 10kV between coil and contacts for enhanced durability.
