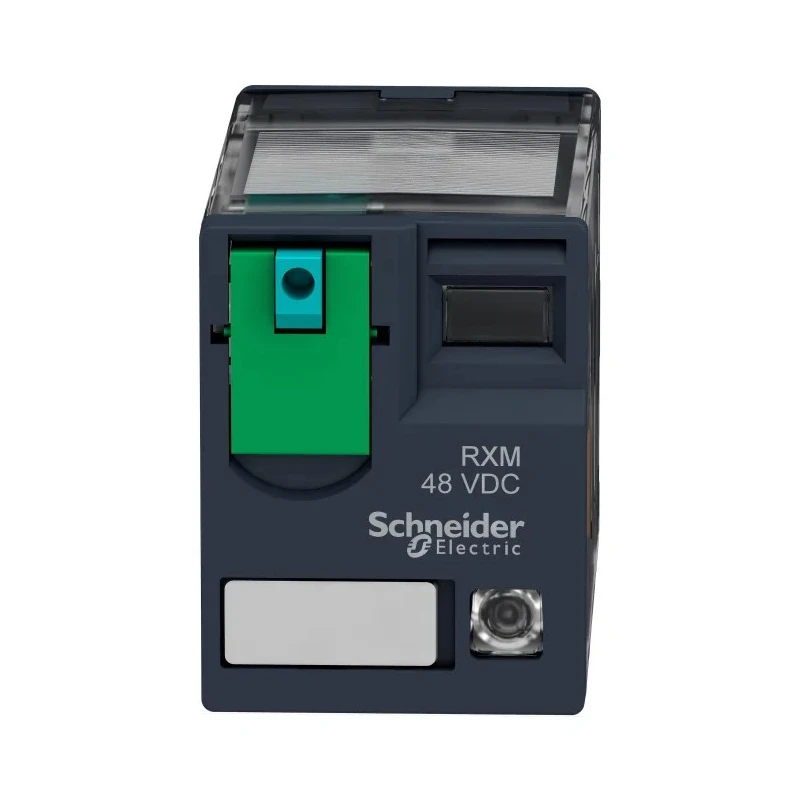

Schneider Electric Power Relay with 48V DC Coil, 8A Switching Current, 4PDT Contact Configuration RXM4AB2ED

Schneider Electric RXM4AB2ED Power Relay is a compact and robust electromechanical relay designed to enhance electrical control systems. Featuring a 48V DC coil voltage and capable of handling 8A switching current with a 4PDT contact configuration, this relay integrates seamlessly into industrial automation, HVAC systems, packaging machinery, textile equipment, and motor control panels.

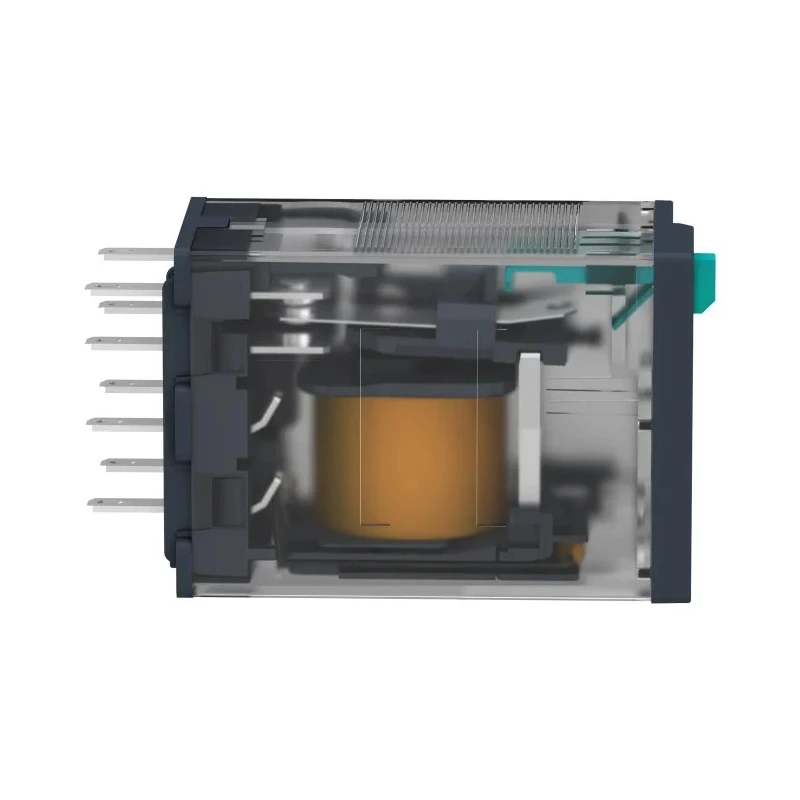

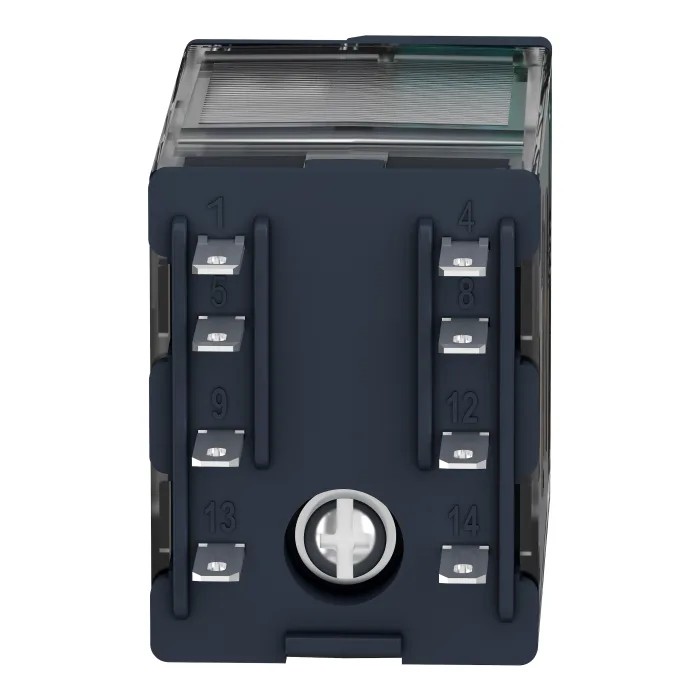

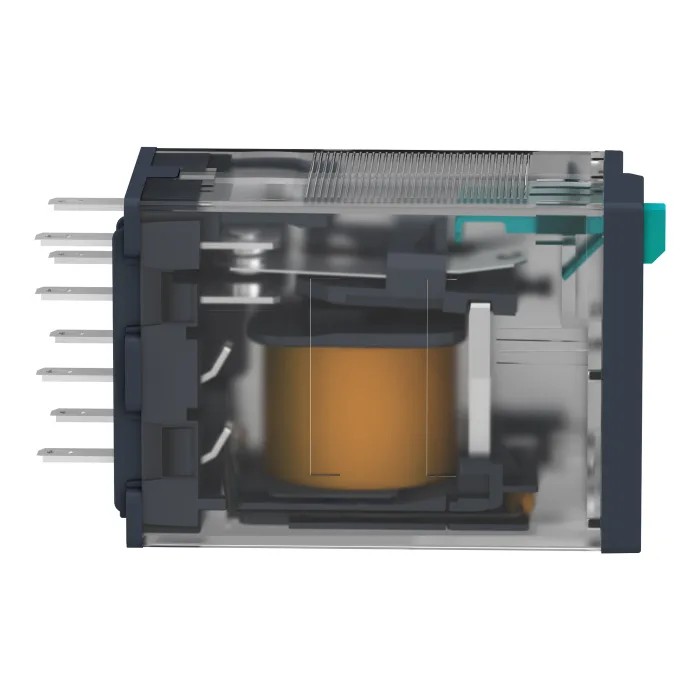

This plug-in relay is designed for mounting on the RXZE socket, providing secure and versatile installation. The coil resistance is 2.6kΩ, with a coil power consumption of 900mW, enabling efficient energy usage. The relay supports a wide operating temperature range from -40°C to 55°C, ensuring performance stability in diverse environments.

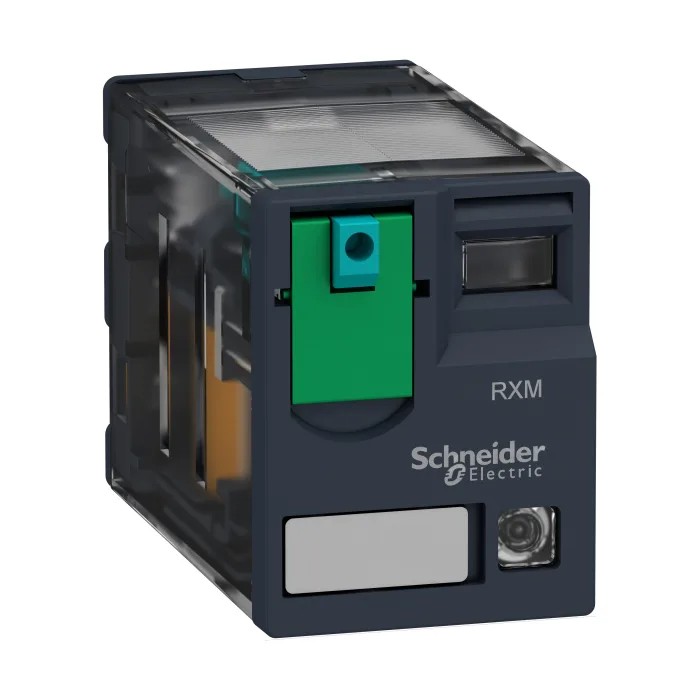

The relay contacts are made of silver alloy, which guarantees high conductivity and durability. A one-step lockable test button and mechanical indicator allow easy verification of relay status, while a green LED indicates operation clearly in any lighting condition. The relay complies with recognized international standards including CE and CSA, offering a green premium product adhering to IEC, UL, EAC, Lloyd's, RoHS, and REACH requirements.

Typical applications include industrial machinery, building equipment, power supplies, automation control panels, low/medium voltage switchgear, PLC interfaces, and lighting controls. Additional accessories such as protection modules and marking legends are available to complement the relay installation and enhance operational safety.

The RXM4AB2ED is part of the Harmony RXM series from Schneider Electric, recognized for easy integration, robust design, and adaptability to various electrical systems. It is supplied as a relay only, usually sold in lots of 10 with separate ordering for sockets and mounting bases.

Compact design with plug-in terminal type ensuring easy installation. Coil resistance of 2.6kΩ with coil power consumption of 900mW. Operating temperature range from -40°C to 55°C for robust performance. Silver alloy contact material providing reliable contact conductivity.

Suitable for industrial automation, HVAC, packaging, and motor control applications. Includes a test button and mechanical indicator for status monitoring. Compliance with international standards such as CE and CSA. Designed to be mounted on an RXZE socket for secure installation.
