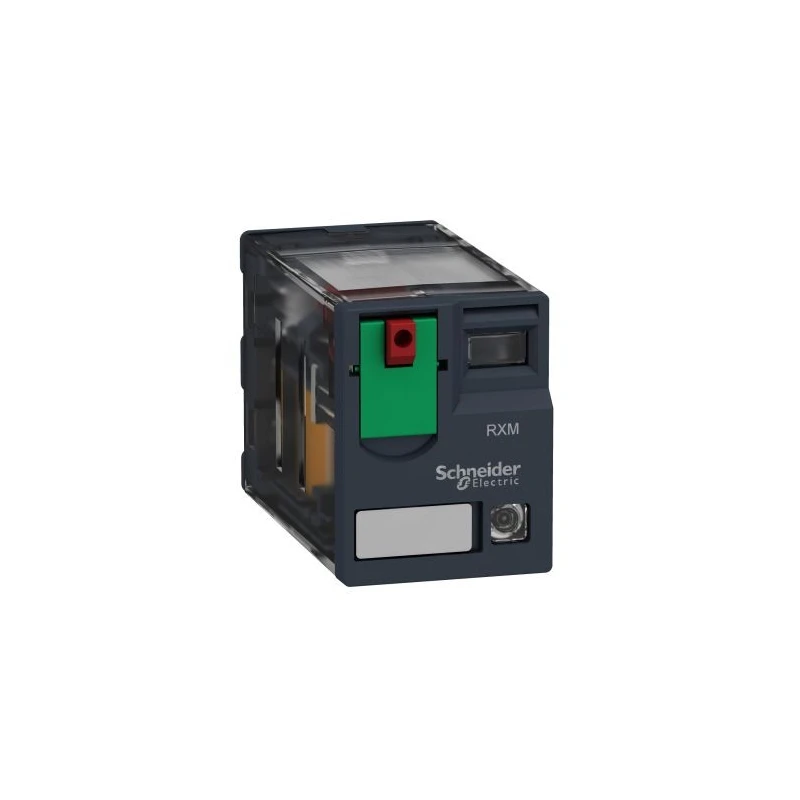

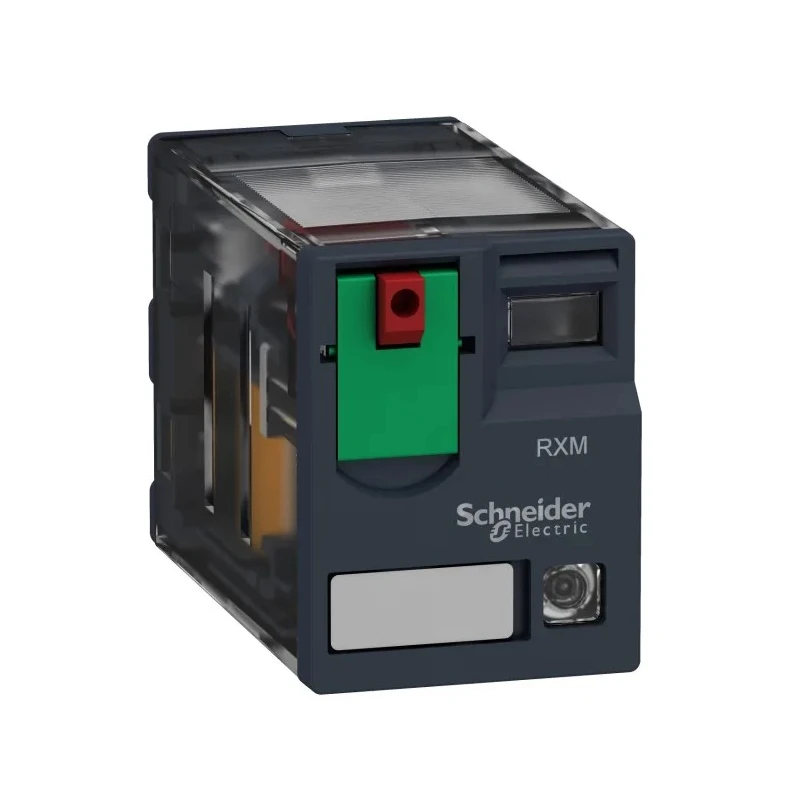

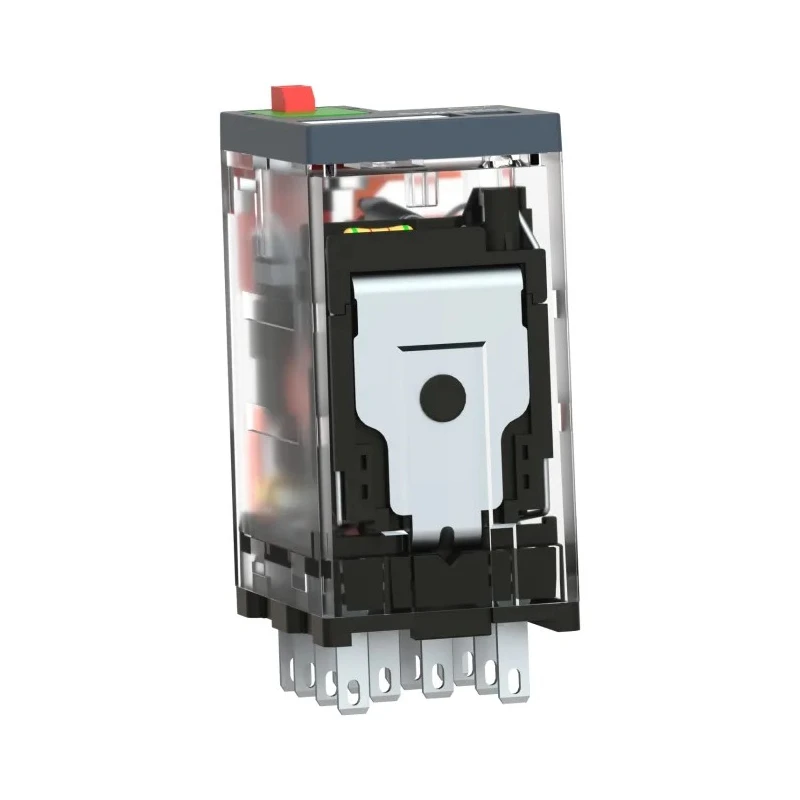

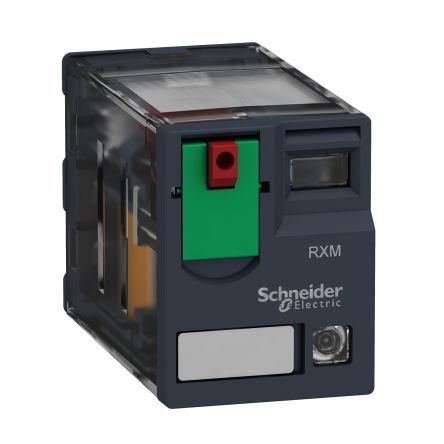

Schneider Electric Power Relay 48V AC Coil 8A Switching Current 4 CO RXM4AB2E7

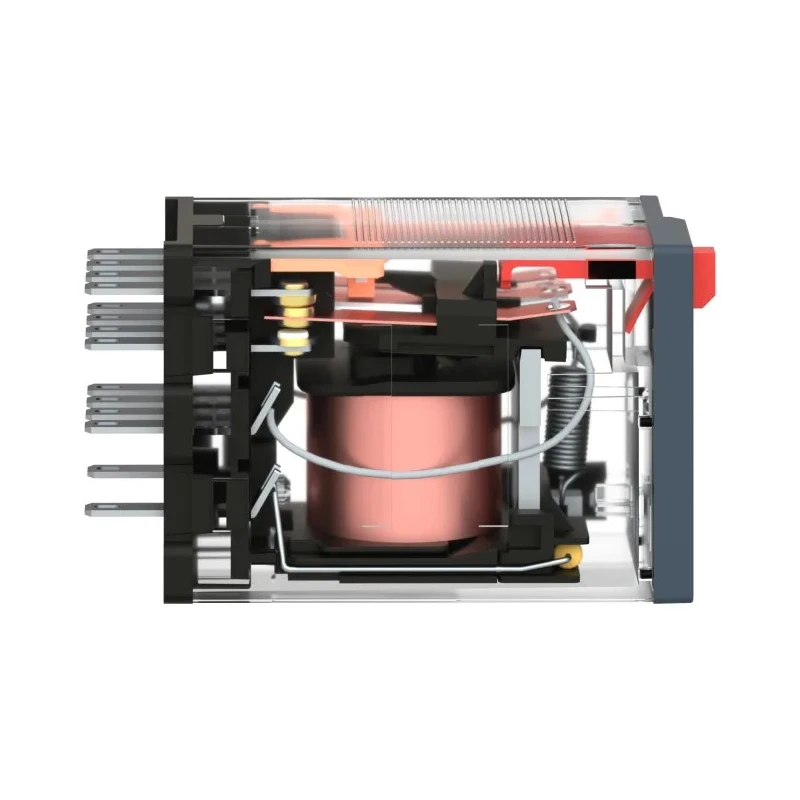

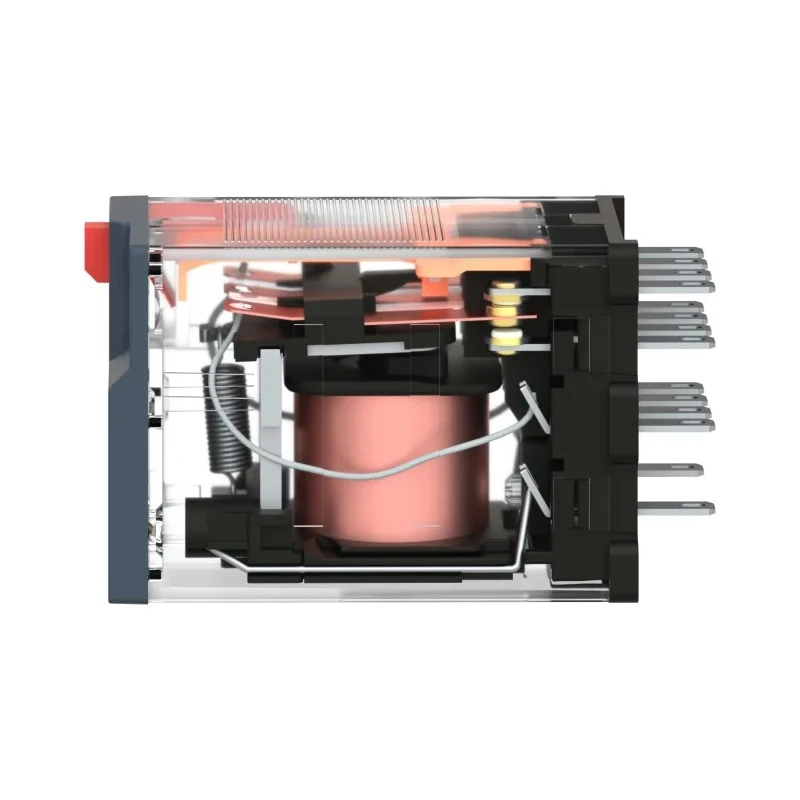

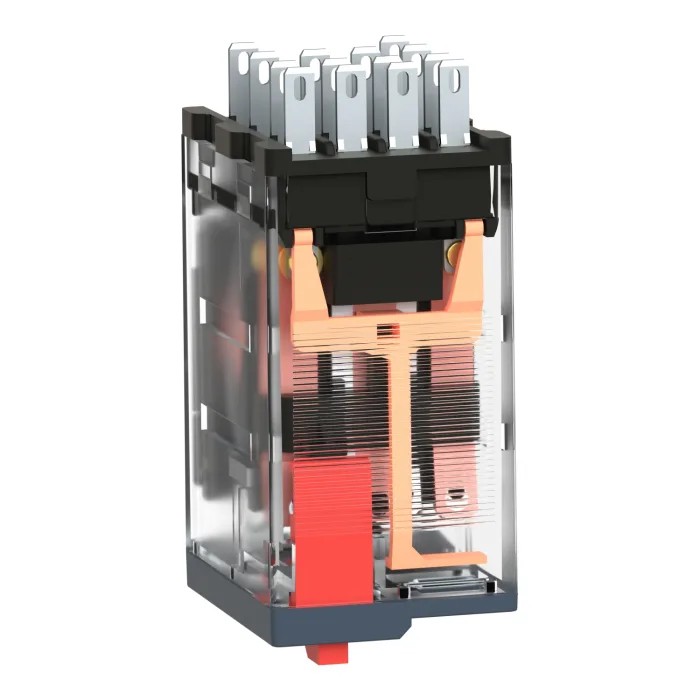

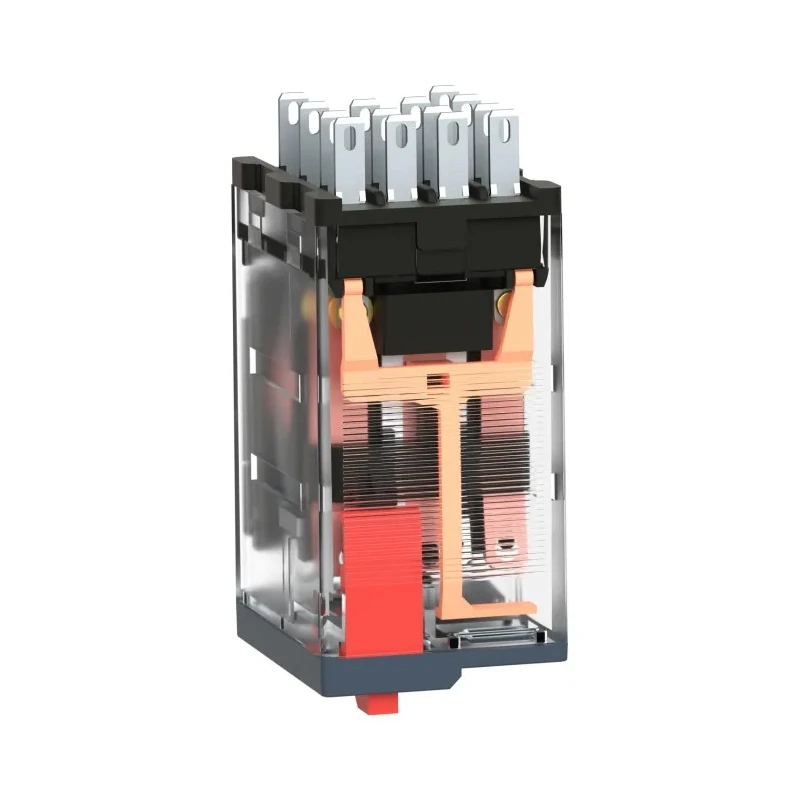

Schneider Electric RXM4AB2E7 Power Relay is a Harmony Relay RXM Series compact, plug-in electromechanical device designed for switching AC and DC loads in industrial automation and control panel applications. Featuring a 48V AC coil voltage and a robust switching current rating of 8A, it provides four changeover contacts (4 CO) for flexible circuit configurations.

The relay's coil consumption is only 1.2W with a resistance of 710Ω, minimizing control circuit load and ensuring efficient energisation. Contacts utilize silver nickel alloy (AgNi) material to support high switching cycles, making it suitable for both signal and power load switching in machine control and process equipment.

Its switching power reaches up to 1500VA for resistive loads, and it allows switching voltages of up to 250V AC and 28V DC. The relay is rated for operation over a temperature range of -40°C to 55°C, providing reliable performance in demanding industrial environments. It offers a high mechanical life of 10 million cycles and an electrical life of 100,000 operations at rated load, with an operational rate up to 1200 cycles per hour.

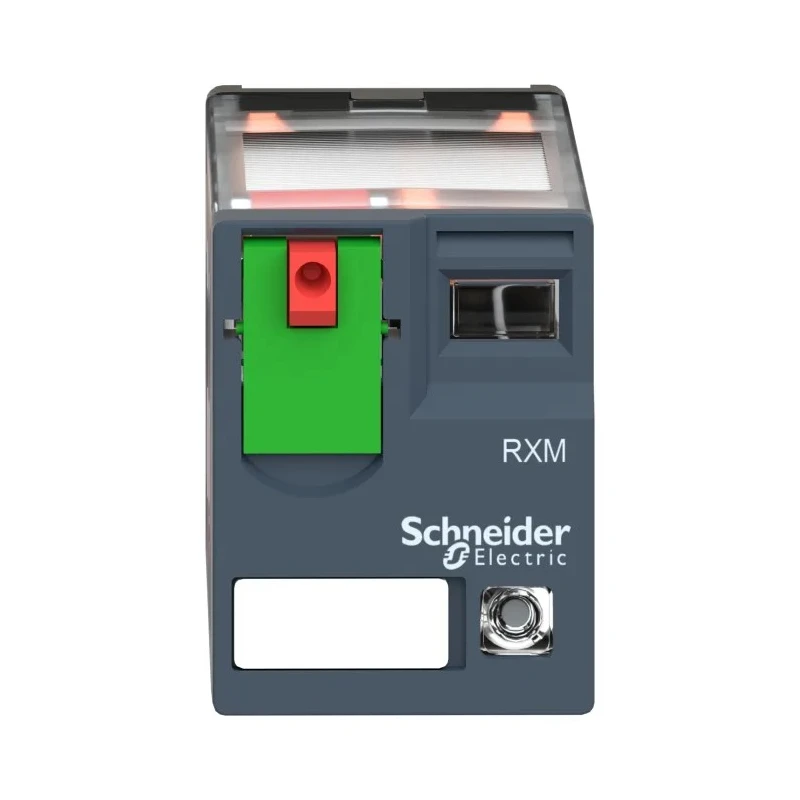

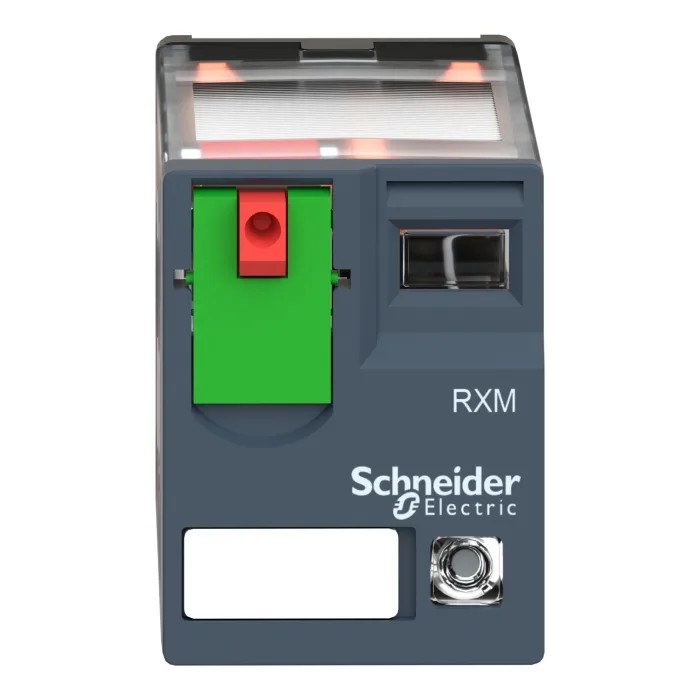

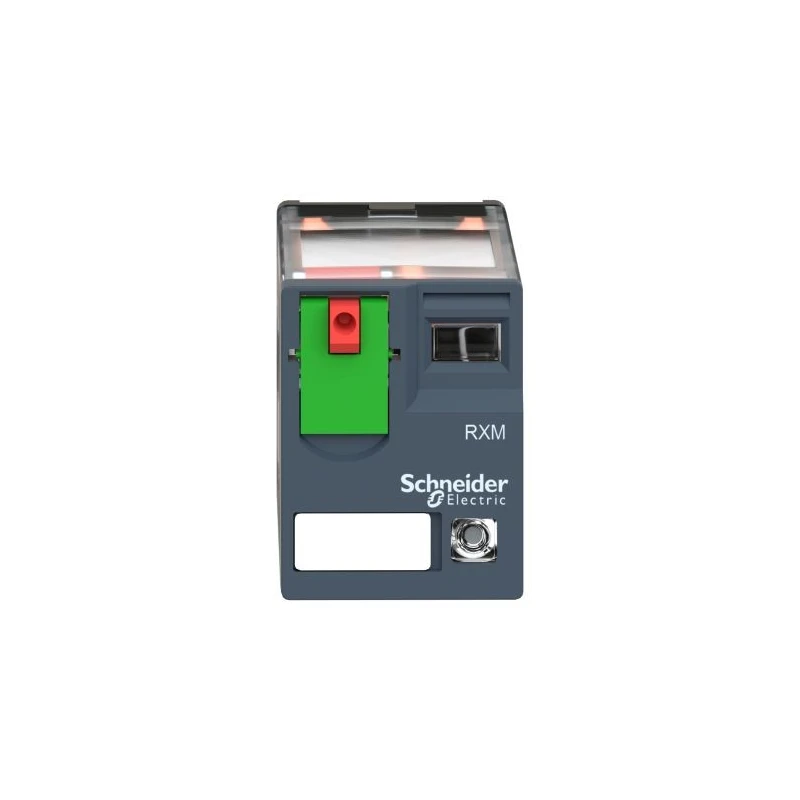

The device is equipped with a lockable test button for safe functional checks and a built-in LED coil status indicator, facilitating maintenance and diagnostics. It meets the CSA and CE standards, ensuring compliance and safety in various regions. The relay is ideal for interfacing programmable controllers with actuators, motor starters, lamp, and heater switching in automated and retrofit systems.

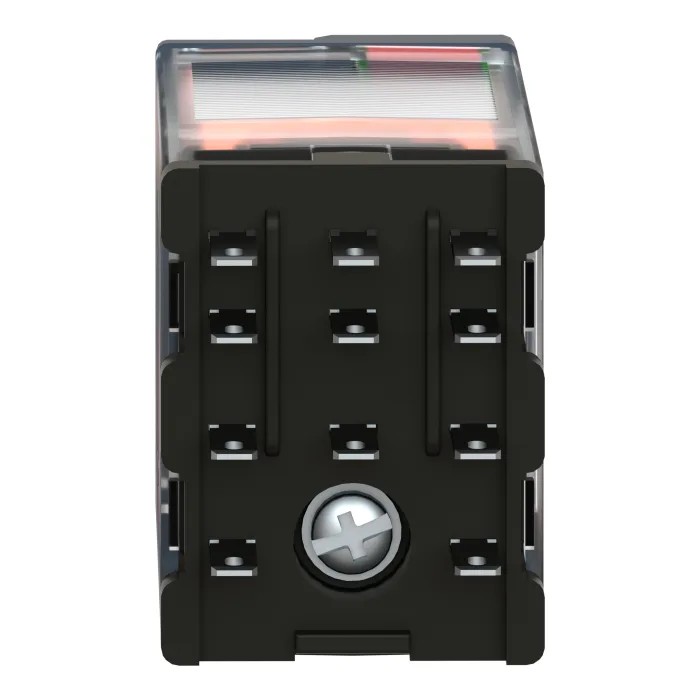

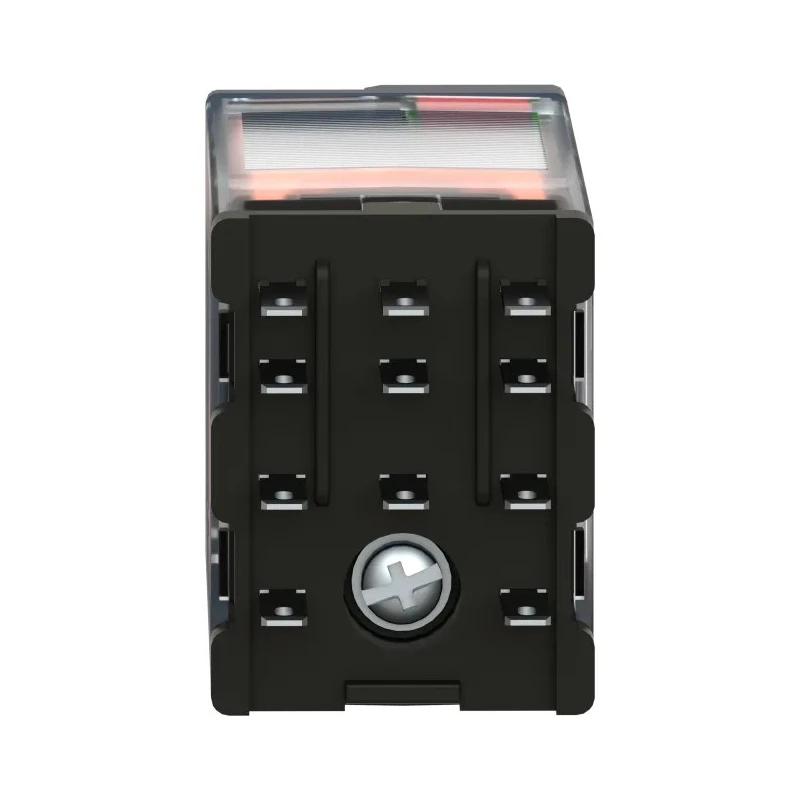

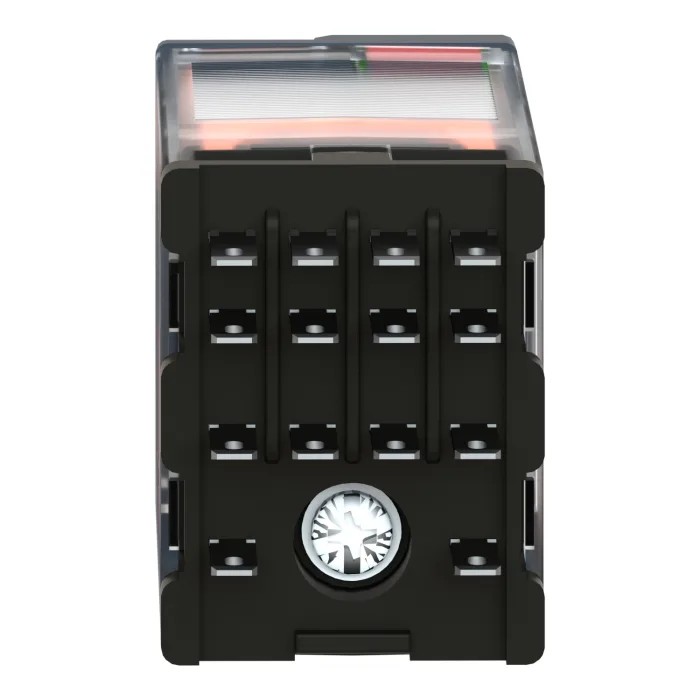

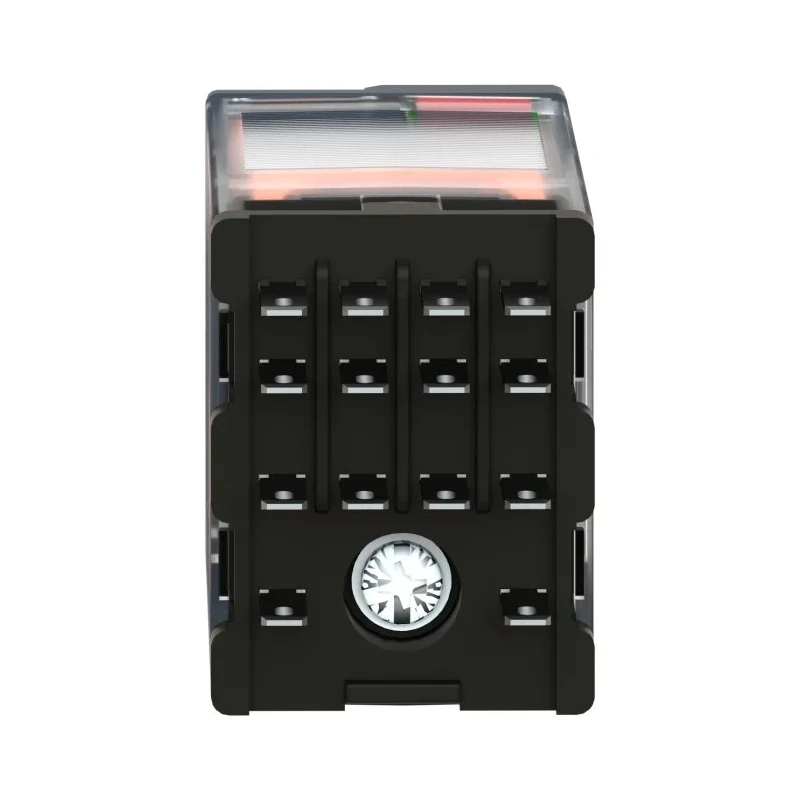

Designed and manufactured in China, this Schneider Electric power relay exemplifies quality and durability for industrial, manufacturing, HVAC, electrical panel, and automation applications. Its plug-in terminal type allows easy replacement and integration into existing compact relay sockets.

Compact plug-in design for ease of installation and replacement. Low coil power consumption reduces control panel energy usage. High switching capacity with 4 changeover contacts for multiple circuit configurations. Wide temperature operation range to withstand harsh industrial environments.

Durable contact material ensures long switching life and reliability. Lockable test button and LED indicator support safe testing and operation monitoring. Conforms to CSA and CE standards for global compliance and safety.
