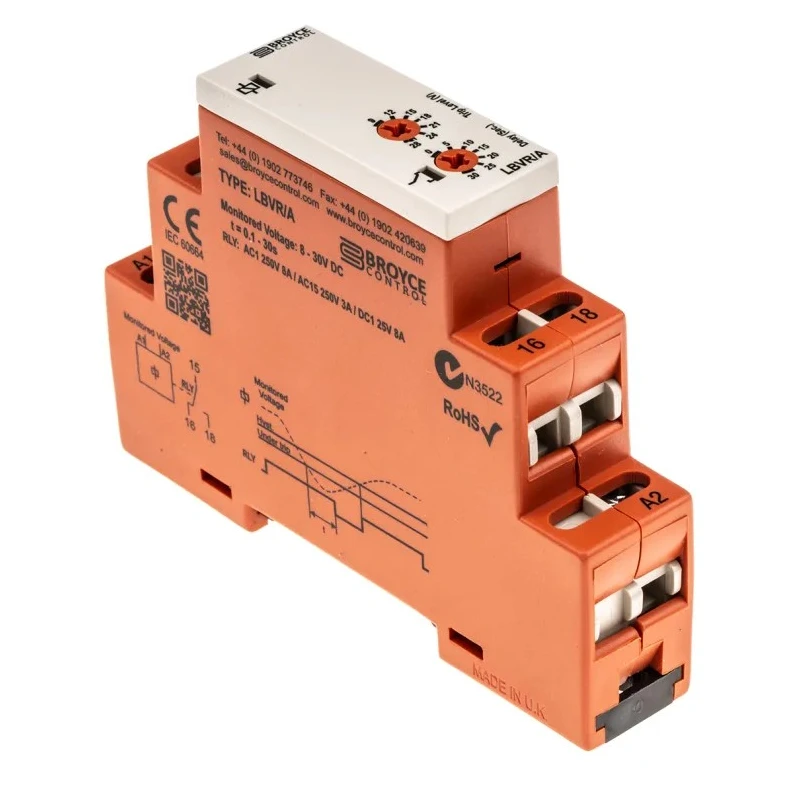

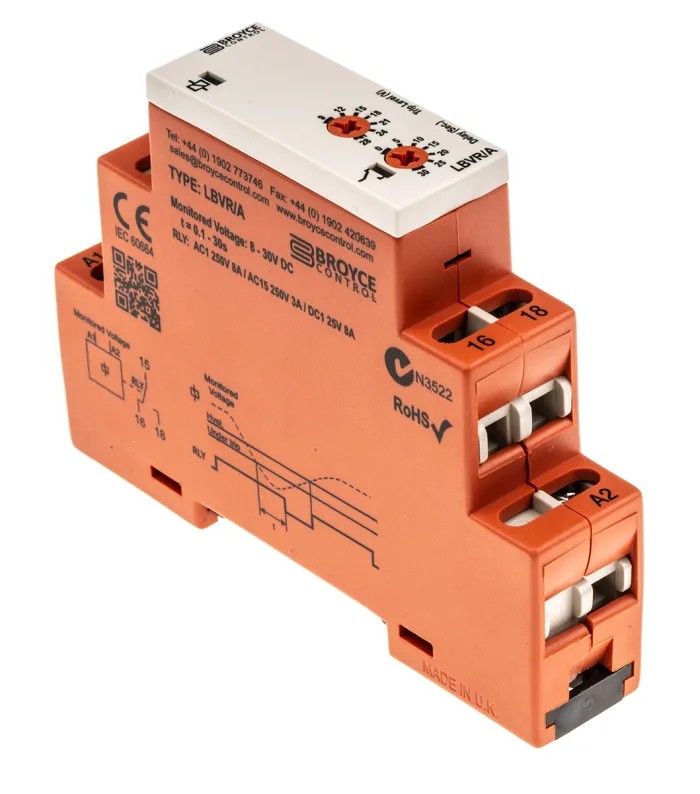

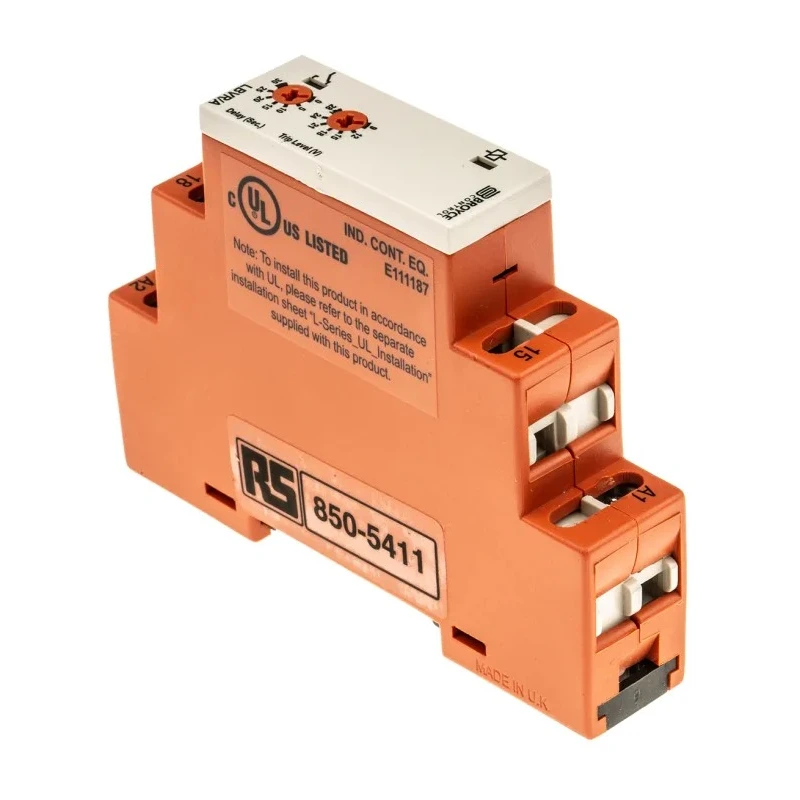

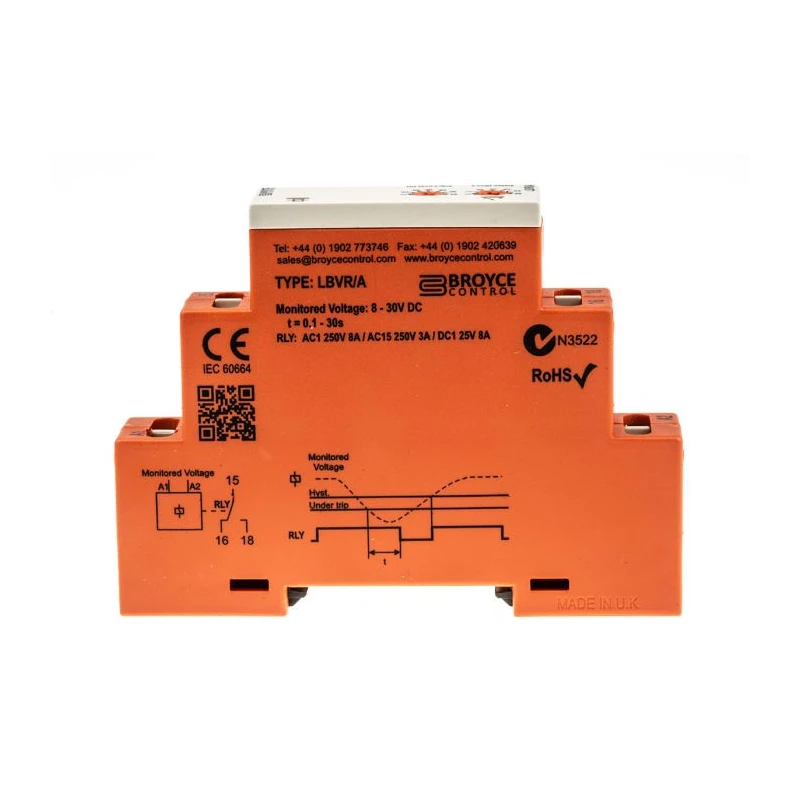

Broyce Control Monitoring Relay 3 Phase SPDT DIN Rail 24 V dc LBVR/A 12-24VDC

Broyce Control LBVR/A 12-24VDC monitoring relay is an advanced control relay designed for three-phase electrical monitoring and signal conditioning. This product is ideally suited for industrial automation, manufacturing control panels, and electrical distribution systems requiring reliable phase monitoring and switching capabilities.

The relay features a microprocessor-based control circuit within a compact DIN rail mount housing measuring just 17.5 mm wide. It supports a single pole double throw (SPDT) contact configuration, providing an 8 ampere contact current rating suitable for diverse control loads. The relay consumes only 3 watts of power, ensuring energy-efficient operation in critical control environments.

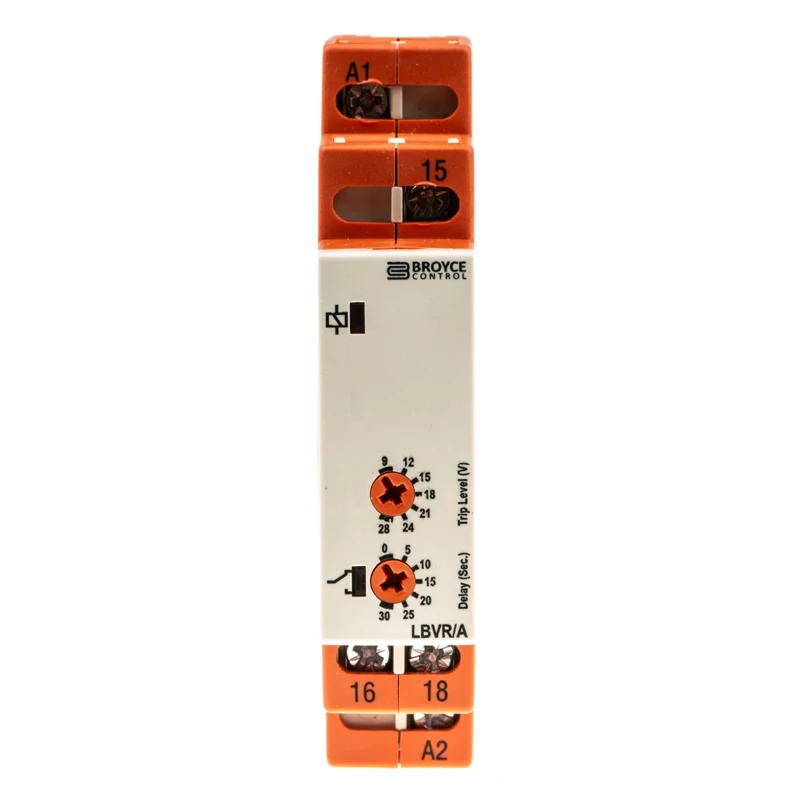

For visual indication, the relay is equipped with green and red LEDs to show supply and relay status respectively, enhancing ease of monitoring onsite. The terminal connections utilize screw terminals, enabling secure and reliable wiring connections.

The device has an IP20 ingress protection rating, making it appropriate for clean indoor industrial settings. It operates reliably within a temperature range from 60 to 60 degrees Celsius. Dimensional measurements are 66.5 mm in length, 89 mm in height, and 17.5 mm in width, facilitating integration into standard DIN rail systems.

This relay complies with international safety and electromagnetic standards including UL EN 61000-6, RoHS, CE, and IEC certifications, ensuring dependable performance and regulatory conformance.

This relay features a microprocessor-based design housed in a compact DIN rail enclosure. Single SPDT relay output rated at 8 A contact current. Low power consumption of 3 Watts for energy-efficient operation. Green and red LEDs provide supply and relay status indication respectively.

Screw terminal connections for reliable wiring. IP20 rated for protection against solid objects in indoor environments. Operates between minimum and maximum temperatures of 60°C. Compact dimensions ideal for DIN rail integration.

Complies with UL EN 61000-6, RoHS, CE, and IEC standards. Manufactured in the United Kingdom with quality assurance.

This Broyce Control monitoring relay series is perfect for industrial automation, electrical control systems, HVAC monitoring, manufacturing process control, and other demanding applications requiring accurate phase monitoring and switch control. Explore related Monitoring Relays and control devices in the EnvMart catalog for comprehensive automation solutions.
