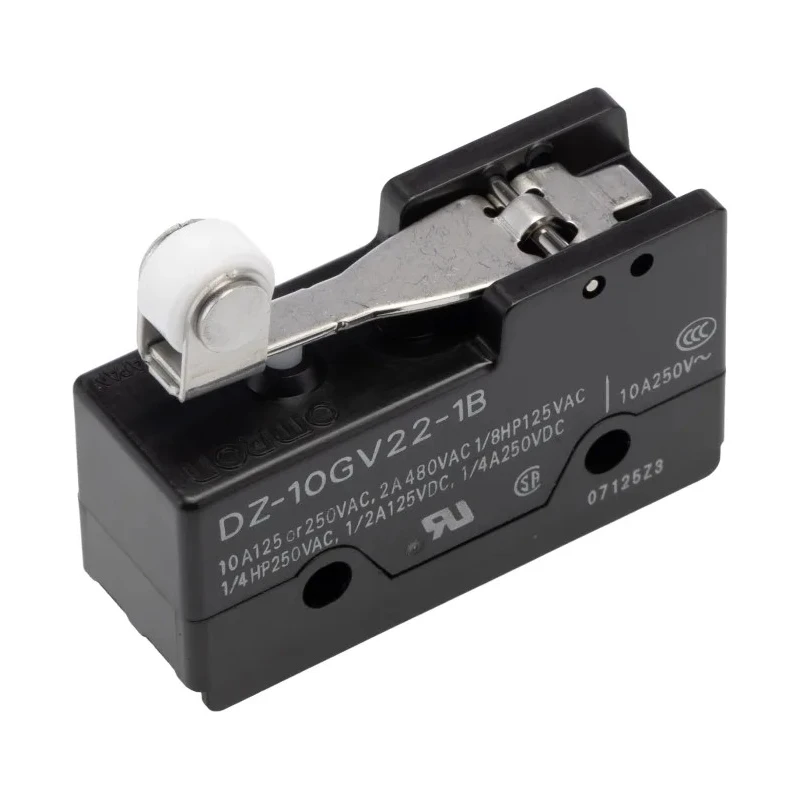

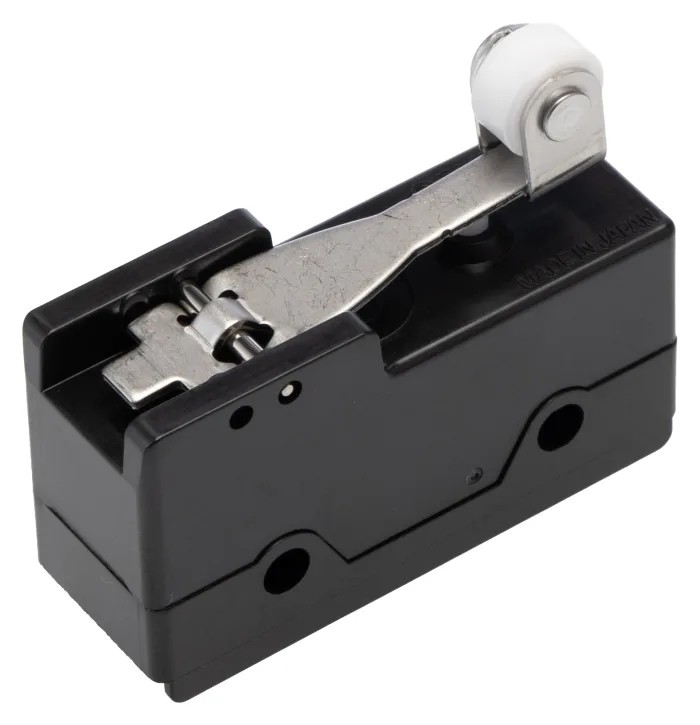

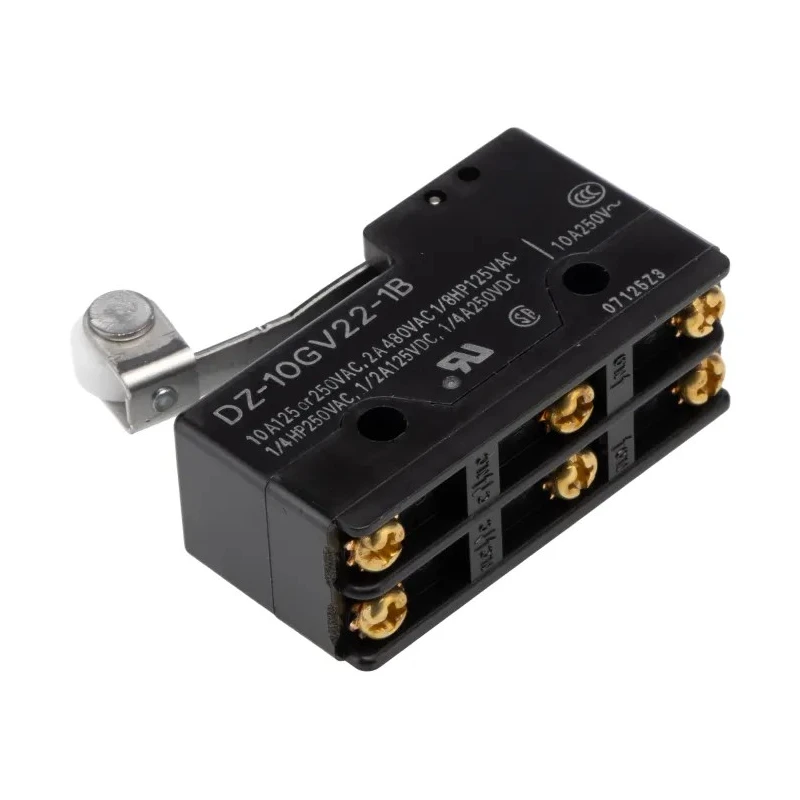

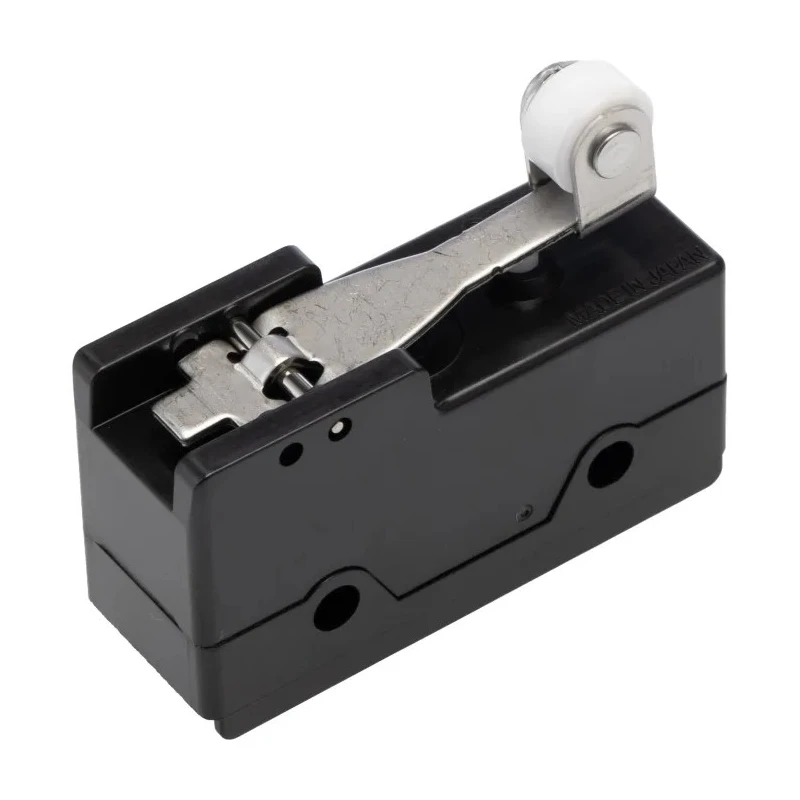

Omron DZ Series Short Hinge Roller Lever Limit Switch, DPDT Contact Configuration, Snap Action, 250V AC, 10A DZ-10GV22-1B

Omron DZ-10GV22-1B Short Hinge Roller Lever Limit Switch is a high-quality industrial automation component designed for reliable switching operations. It features a DPDT contact configuration with two independent built-in switches, enabling control of two separate circuits or switching different voltages effectively. The snap action contact type ensures precise and fast response for various industrial applications.

This limit switch supports an operating current rating of 10A at 250 Vac and a switching DC voltage up to 250V. Its temperature operating range from -25°C to +85°C makes it apt for use in industrial environments with varying thermal conditions. The product is durable with a mechanical life of one million operations and electrical service life of 500,000 operations, underscoring its long-term reliability.

The actuator type is a short hinge roller lever, providing effective actuation with low operating force of 4.22 N. This switch employs screw terminals for secure wiring and features a screw mounting orientation, facilitating easy and stable installation within electrical panels or machines.

This model complies with RoHS, UL, and CSA standards, ensuring safety and environmental compliance for industrial usage. The IP00 rating indicates suitability for indoor, protected environments without exposure to dust or water ingress.

Typical industrial applications include control systems automation, manufacturing machinery, conveyor equipment, and electrical panels requiring dual circuit switching capabilities. Omron's DZ series is well-regarded for precision, robustness, and compatibility with standard mounting dimensions, making replacement and upgrades straightforward.

Omron limit switches represent a dependable choice for electrical and automation engineers seeking quality components with proven performance. The DZ-10GV22-1B model integrates seamlessly into complex control systems demanding high operating life and adherence to international safety regulations.

Features a snap action contact type for reliable switching. Operates within a temperature range from -25°C to +85°C. Mechanical life of 1,000,000 operations ensures durability. Equipped with a short hinge roller lever actuator for precise control.

Mounting orientation is screw type for secure installation. IP rating is IP00, suitable for environments without ingress protection requirements. Terminal type is screw, compatible with secure electrical connections. Complies with RoHS, UL, and CSA standards for safety and environmental compliance.

Designed for switching circuits on two independent circuits with DPDT configuration. Browse the full range of Limit Switches and automation components on EnvMart for industrial, manufacturing, and laboratory applications.
