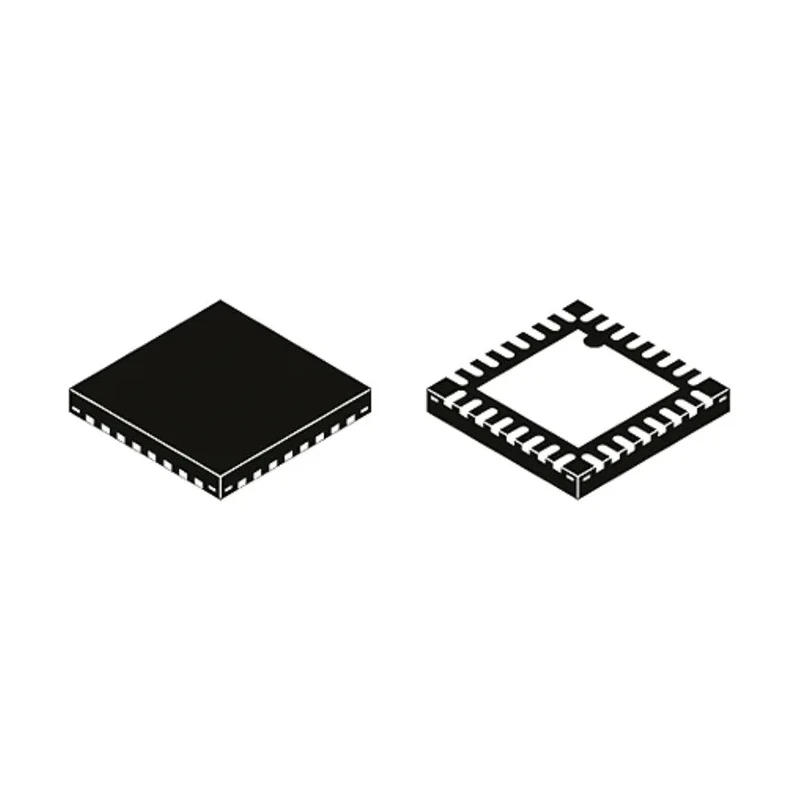

Microchip Transceiver IC USB3320C-EZK-TR 1-Channel USB 2.0 3.3V, 1.8 V, 32-Pin QFN USB3320C-EZK-TR

Microchip USB3320C-EZK-TR is a high-performance transceiver IC designed for USB 2.0 interface applications, providing a single channel with support for supply voltages from 1.8 V to 3.3 V. Packaged in a 32-Pin QFN surface mount package with a compact footprint of 5.1 mm length and 950 μm height, this device supports high-speed USB 2.0 protocol at rates up to 480 Mbps.

This transceiver integrates enhanced electrostatic discharge (ESD) protection, improving durability and reliability in demanding environments. It operates optimally within a temperature range of 0°C to 85°C, making it suitable for standard commercial and industrial temperature conditions.

The USB3320C-EZK-TR is part of Microchip's USB3320 series featuring the ULPI interface, widely adopted in embedded systems and consumer electronics to implement USB host and device interfaces efficiently. It offers surface mount packaging that facilitates automated manufacturing and compact PCB designs.

This device is suitable for applications including embedded controllers, USB hubs, industrial automation, and other electronics requiring compliant USB 2.0 transceiver functionality. It supports robust high-speed data transfer, device interoperability, and simplified USB host/device designs.

Package dimensions and pin pitch are optimized for high-density PCB layouts. The transceiver does not conform to automotive standards and is primarily targeted at general electronic device applications.

Single transceiver channel supports USB 2.0 protocol up to 480 Mbps. Operates with a supply voltage range of 1.8 V minimum to 3.3 V maximum. Surface mount device with a compact 32-pin QFN package ensures PCB space saving.

Supports ESD protection for enhanced device reliability. Operates reliably between 0°C and 85°C operating temperature range. Precise package dimensions with length 5.1 mm and height 950 μm. Complies with USB3320 series transceiver specifications using ULPI interface.

Ideal for embedded USB interface applications requiring robust USB 2.0 transceiver functionality. Designed for use in industrial, consumer electronics, and embedded systems applications. No automotive standards compliance, intended for general electronics use.
