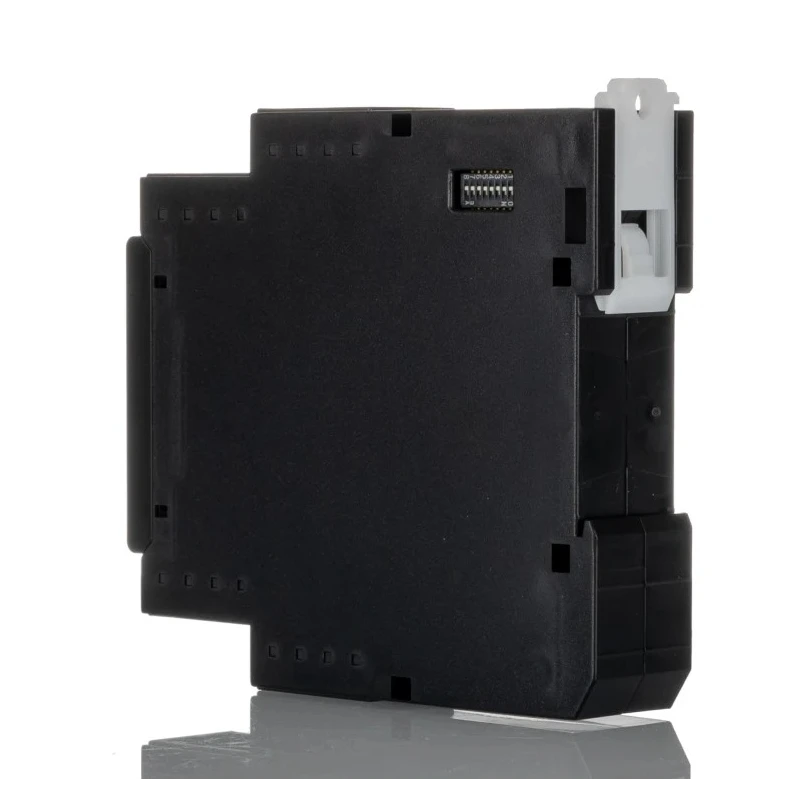

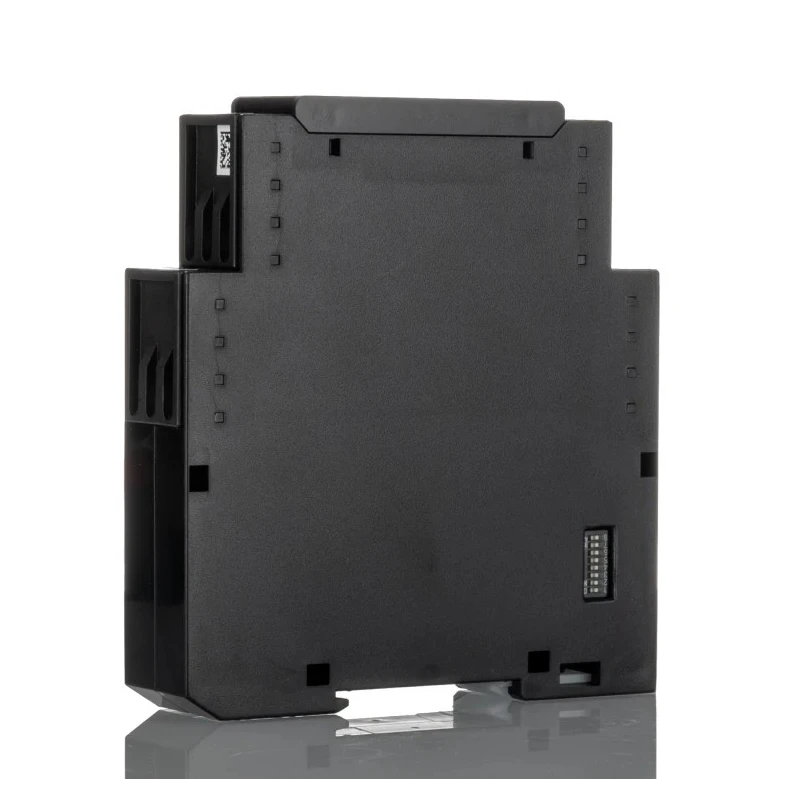

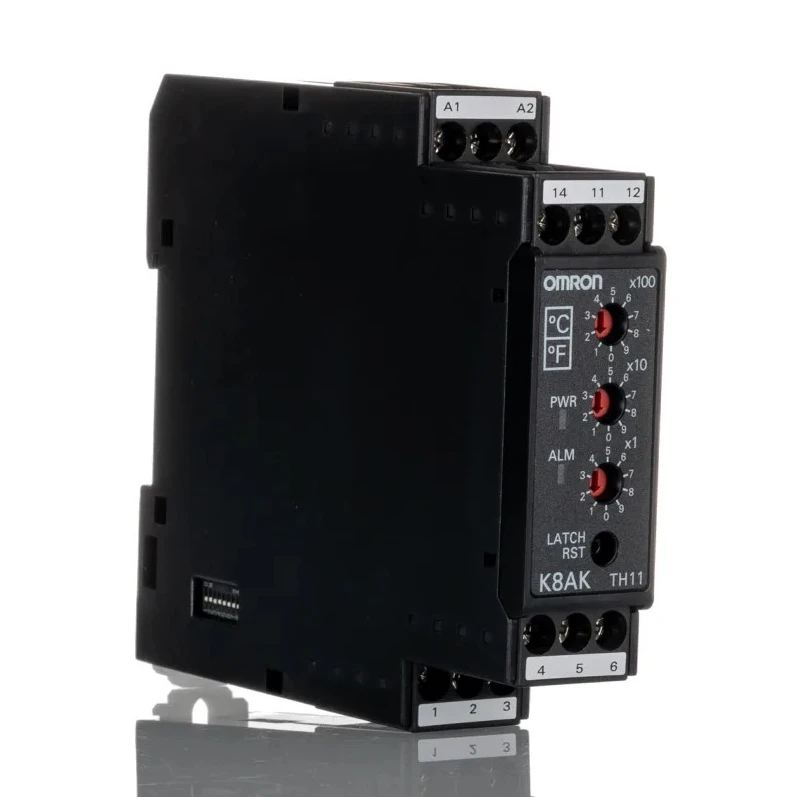

Omron 3 Phase Monitoring Relay with SPDT Output, DIN Rail Mount, Temperature Monitoring 0 °C to 999 K8AK-TH11S 100-240VAC

Omron K8AK-TH11S 100-240VAC Monitoring Relay is a precision 3 phase relay equipped with a single-pole double-throw (SPDT) contact output and designed for DIN rail mounting. This relay facilitates versatile temperature monitoring applications from 0 °C up to an elevated maximum of 999 °C, powered by a universal supply input of 24 V dc and 100 to 240 V ac, optimizing flexibility for diverse power setups.

The unit's compact 22.5 mm width allows installation in confined spaces without compromising performance. It supports multiple sensor types, including thermocouples and platinum resistance thermometers, making it adaptable for various industrial and HVAC monitoring scenarios. Configuration is streamlined with adjustable rotary switches to tailor temperature alarm settings with precision.

An LED indicator provides clear alarm status updates, while the relay also retains its alarm state during power outages, enhancing process safety. Its IP20 rating permits use in typical industrial environments, though not in highly dusty or wet conditions.

This monitoring relay finds robust application in industrial automation systems, temperature alarm setups, HVAC systems, manufacturing processes requiring strict temperature control, and safety mechanisms designed to prevent equipment overheating. Compliance with CE and CSA standards ensures reliability and quality.

The relay measures 100 mm in length and 90 mm in height, with screw terminals for secure wiring. Its 5 A contact current rating supports effective control of connected loads within electrical systems.

The relay offers compact design for efficient DIN rail mounting in space-limited panels. Supports universal sensor input types for versatile temperature measurement. Adjustable switches provide easy setup of temperature alarm points.

Reliable LED indicators assist in monitoring alarm conditions promptly. Alarm memory capable of retaining status during power interruptions. IP20 protection suitable for standard industrial environments. High temperature monitoring range from 0 °C to 999 °C supports wide applications.

Compliant with CE and CSA standards for performance assurance. Ideal for use in HVAC, manufacturing, and industrial safety control systems. Explore more high-quality Monitoring Relays and automation components on EnvMart for enhanced industrial system efficiency and safety.
