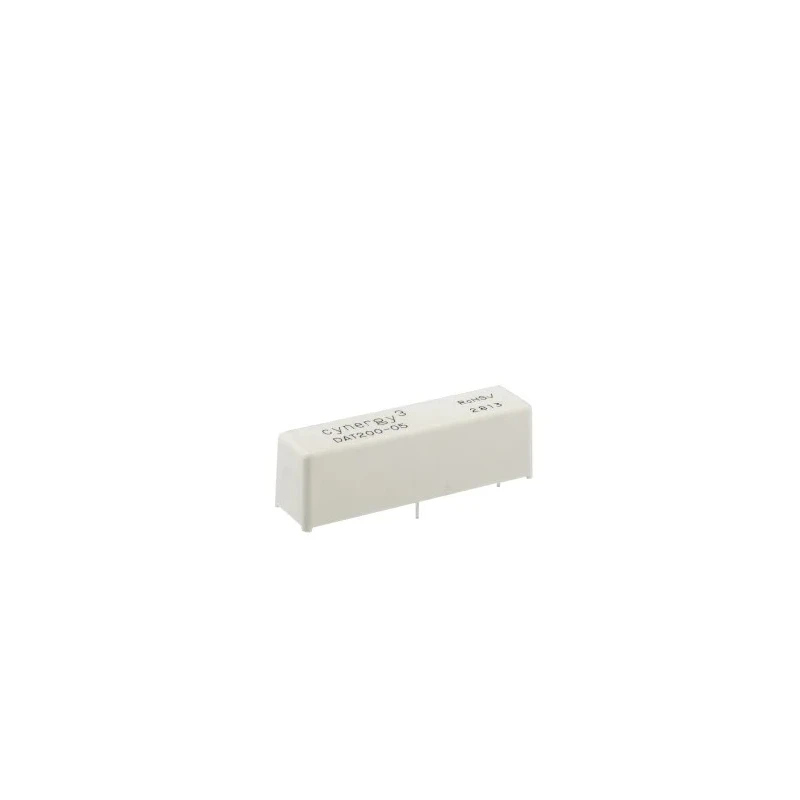

Cynergy3 Reed Relay PCB Mount SPST 24V DC Coil 200W Switching Power 2500V DC Max
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Cynergy3 |
| Height | 18.5mm |
| Length | 60mm |
| Model | Cynergy3 |
| Operating Time | 6ms |
| Mount Type | PCB |
| Series | DAT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Terminal type | PCB Terminal |
| Contact Resistance | 600mΩ |
| Standards/Approvals | UL |
| Coil Resistance | 780Ω |
| Coil Power | 200W |
| Switching Power | 200W |
| Isolation Coil To Contact | 17kV |
Key Features
- High switching power of 200W for demanding electrical loads.
- Coil voltage rated at 24 volts DC with 780 ohms resistance.
- SPST (Single Pole Single Throw) contact configuration provides simple on/off switching.
- Maximum DC voltage across contacts is 2500V, ensuring high isolation.
- Low contact resistance of 600 milliohms for efficient conduction.
- Operating time of 6 milliseconds for fast switching performance.
- Designed to operate within temperature range of -20°C to 70°C.
- Mounted directly to PCB with PCB terminal type for secure installation.
Product Description
The Cynergy3 DAT200-24 reed relay is a high-performance PCB mount relay featuring a 24V DC coil and SPST contact configuration, designed to deliver dependable switching in industrial, electrical, and automation applications. With a robust switching power rating of 200W and maximum contact voltage of 2500V DC, it suits demanding conditions in test equipment, power supply circuits, and signal conditioning.
Equipped with a coil resistance of 780 ohms and an operating time of just 6 milliseconds, this relay ensures responsive and efficient operation. The relay’s tungsten contacts provide low contact resistance of 600 milliohms, enhancing conductivity and minimizing power loss during switching.
Built for durability, it operates reliably over a temperature range spanning from -20 degrees Celsius up to a maximum of 70 degrees Celsius, ensuring functionality in varied environmental conditions. The PCB terminal type and compact dimensions (60mm length, 18.5mm height) facilitate easy and secure integration into printed circuit boards.
Certified to UL standards, the Cynergy3 DAT200-24 offers assurance of safety and quality in electronic designs. Its excellent isolation of 17kV between coil and contacts further protects sensitive circuits from electrical interference.
High switching power of 200W for demanding electrical loads. 24V DC coil voltage with 780 ohms coil resistance. SPST contact configuration for straightforward switching. Maximum contact voltage rating of 2500V DC ensures strong isolation.
Low contact resistance of 600mΩ reduces power loss. Fast 6ms operating time for efficient signal response. Wide operating temperature range from -20°C to 70°C. PCB mount relay with PCB terminal type for secure installation.
UL certification guarantees quality and safety compliance. Manufactured in the United Kingdom for assured build quality.
This relay is ideal for industrial automation, electrical equipment, test instrumentation, and high-voltage power supply applications. Its combination of high switching capacity and compact design makes it a versatile component in relay and signal conditioning assemblies.
Explore more products in the Reed Relay category on EnvMart for industrial and laboratory electrical relay solutions including various coil voltages, contact types, and mounting options to meet your specific requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching power of this relay is 200W, making it suitable for demanding electrical loads.
This relay has a coil voltage of 24V DC and a coil resistance of 780 ohms.
It features an SPST (Single Pole Single Throw) contact configuration for straightforward on/off switching.
The maximum DC voltage across the contacts is 2500V, ensuring high isolation.
This relay measures 60mm in length and 18.5mm in height, designed for PCB mounting.
The operating temperature range is from -20°C to 70°C, allowing for functionality in various environmental conditions.
The operating time for this relay is 6 milliseconds, providing fast switching performance.
The contact resistance is 600 milliohms, which enhances conductivity and minimizes power loss during switching.
It uses a PCB terminal type for secure installation directly onto printed circuit boards.
Yes, it is certified to UL standards, ensuring compliance with safety and quality requirements.
This relay is suitable for industrial automation, electrical equipment, test instrumentation, and high-voltage power supply applications.
This relay is manufactured in the United Kingdom, assuring build quality.
