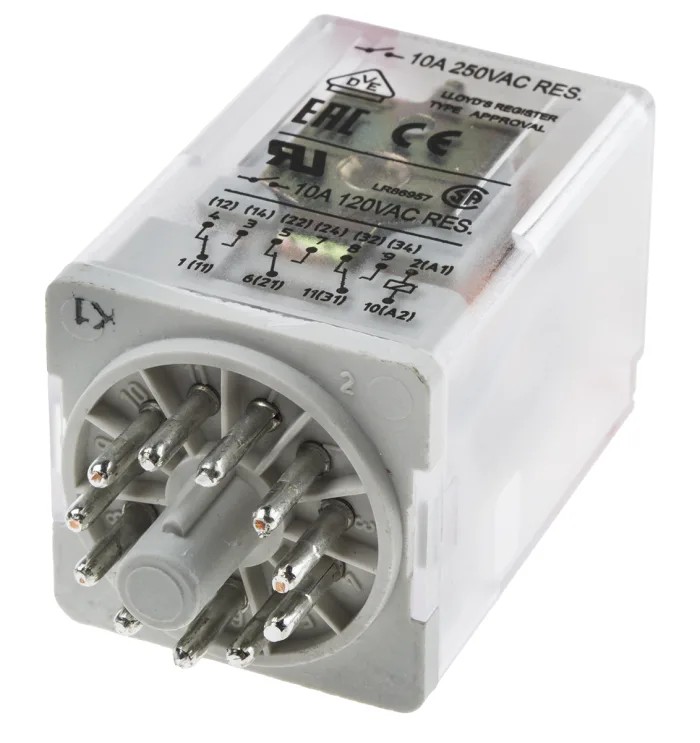

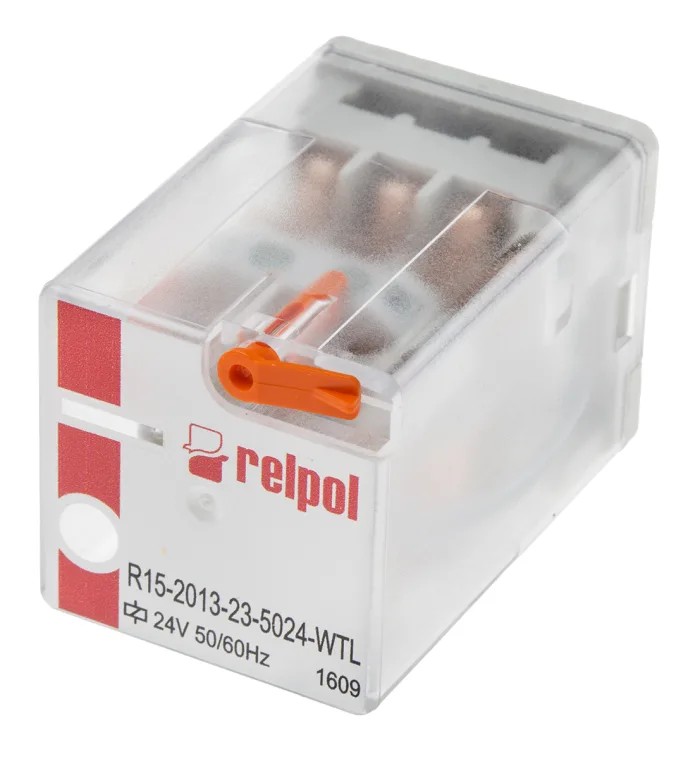

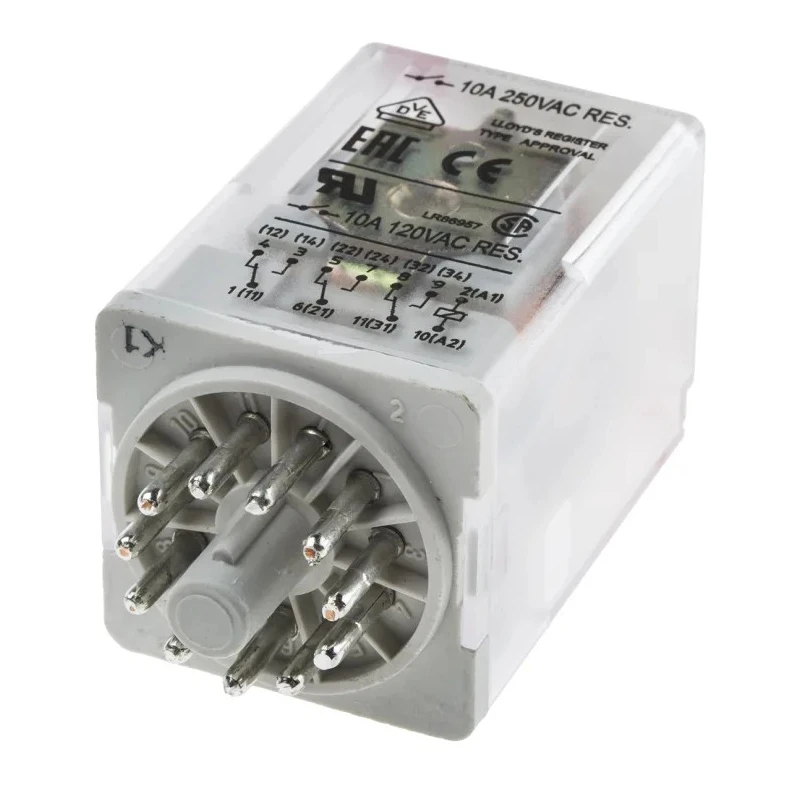

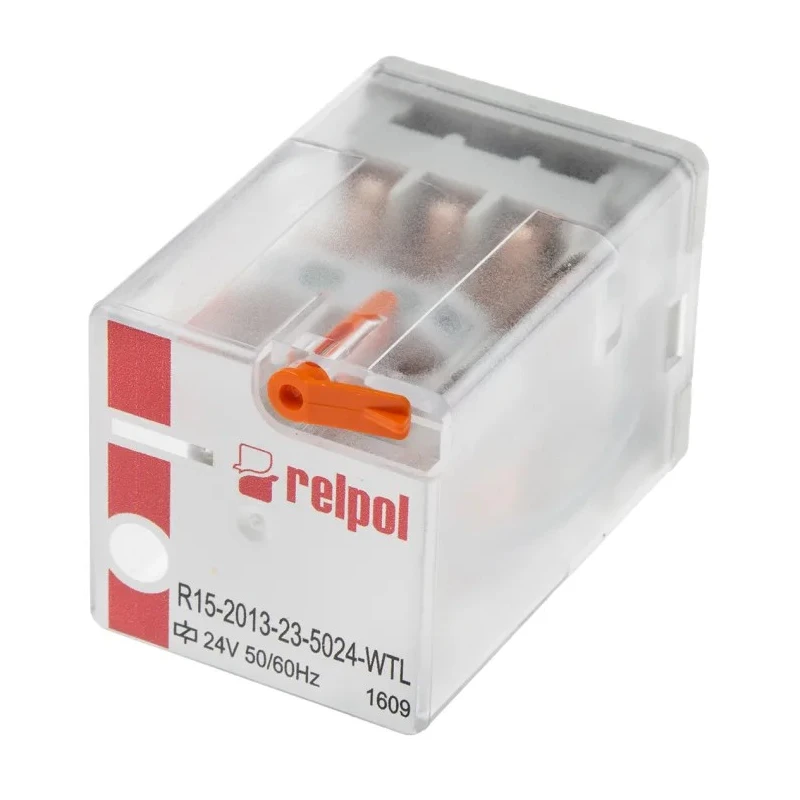

Relpol Power Relay 24V AC Coil 10A Switching Current 3PDT Plug-In Terminal Silver Alloy Contacts R15-2013-23-5024-WTL

The Relpol R15-2013-23-5024-WTL is a high-quality power relay designed for industrial applications requiring dependable switching of electrical circuits. This model features a 24V AC coil voltage optimized for controlled power switching with an electrical load capacity of 10 amperes. Its 3PDT contact configuration allows for triple pole double throw operations, making it versatile for complex circuit control needs.

Constructed with silver alloy contacts, this relay ensures excellent conductivity and resistant to wear, enhancing longevity and operational reliability. The relay's small footprint, with dimensions of 54.4mm in width, and 35mm in both height and length, allows for easy integration within compact control panels or equipment.

The coil resistance is rated at 75 ohms, with a coil power of 2.8 watts, providing efficient power consumption without sacrificing performance. It operates safely within a wide temperature range of -40°C to 55°C, suitable for demanding industrial environments.

This product conforms with international safety standards UR, UL, and CSA, assuring compliance with rigorous quality and safety requirements. The plug-in terminal design facilitates ease of installation and maintenance.

Typical industrial use cases include electrical automation systems, manufacturing line controls, HVAC systems, and other equipment requiring reliable power relay switching. The durable build and advanced design make it suitable for electrical engineers and technicians looking for precision and robustness in their relay solutions.

Features a 24V AC coil voltage for reliable operation. Provides a 3PDT (triple pole double throw) contact configuration to handle complex switching tasks. Supports a switching current up to 10 amperes for robust electrical loads.

Equipped with silver alloy contacts to ensure durability and excellent electrical conductivity. Designed with a compact form factor measuring 54.4mm width, 35mm height, and 35mm length. Coil resistance rating of 75 ohms with a coil power consumption of 2.8 watts for efficient energy use.

Operational temperature range from -40°C minimum to a maximum of 55°C, suitable for harsh industrial environments. Complies with UR, UL, and CSA standards, ensuring safety and quality certification. Explore more Power Relay options on EnvMart for robust electrical switching solutions.
