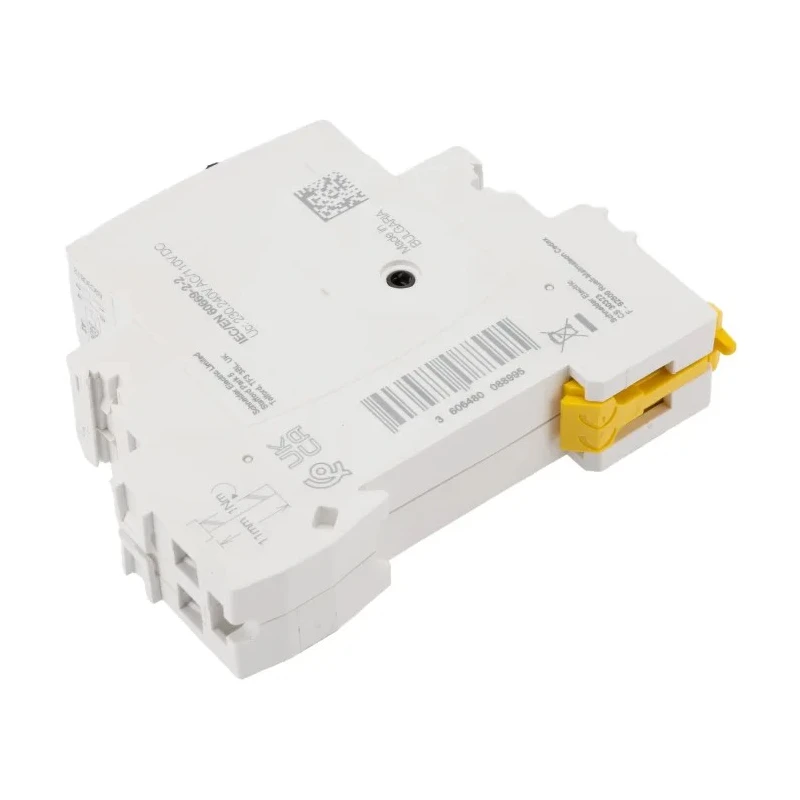

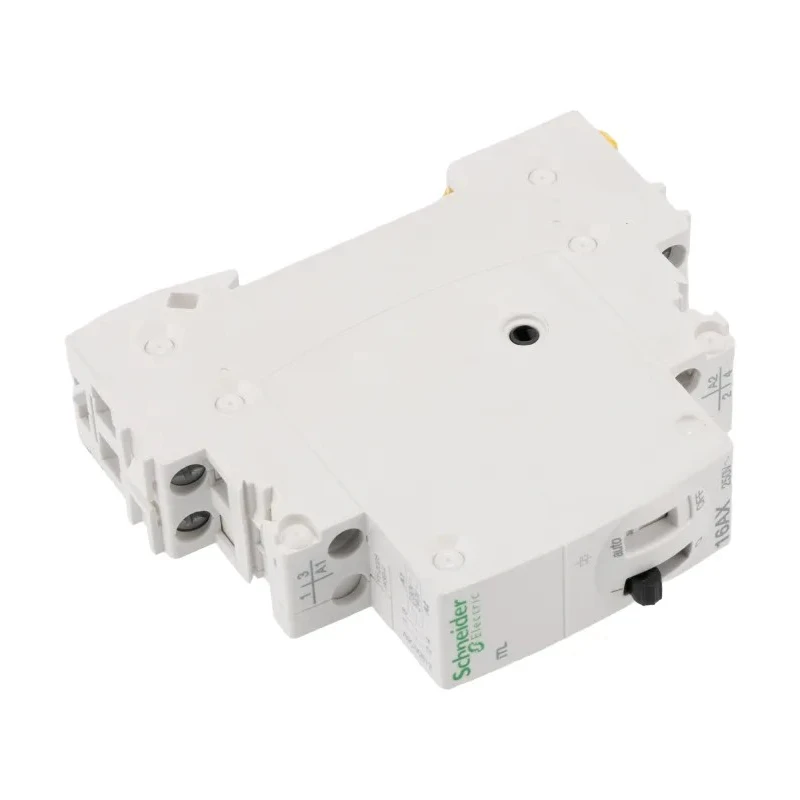

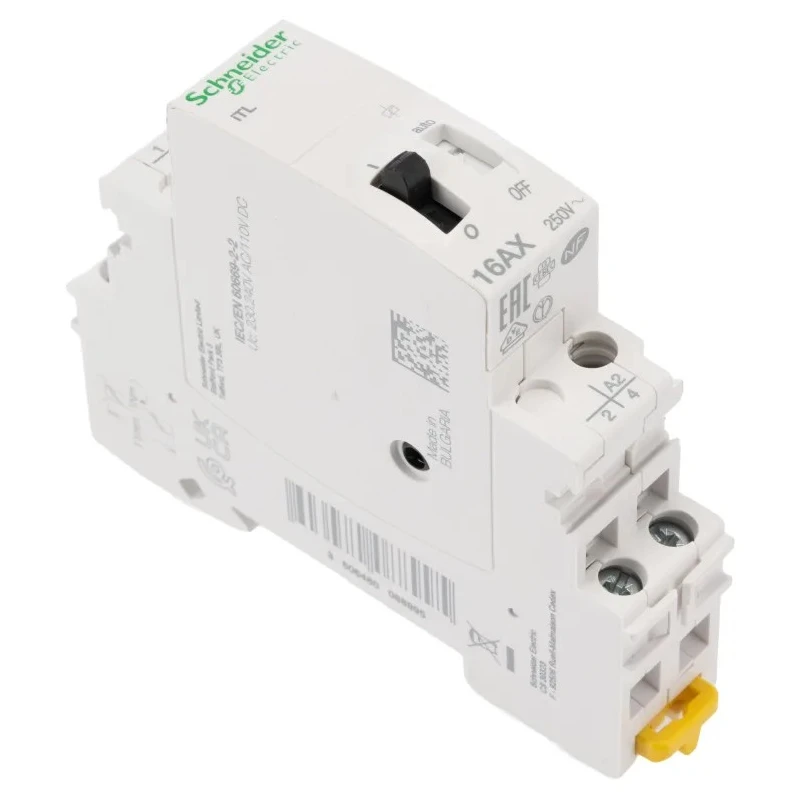

Schneider Electric DIN Rail Power Relay 230V AC Coil 240V AC Coil, 16A Switching Current, DPST, Acti9 iTL Series A9C30812

Schneider Electric A9C30812 DIN Rail Power Relay is a compact and efficient impulse relay from the Acti9 iTL series, designed for controlling alternating current electrical loads remotely or locally. It accepts coil voltages of 230V AC to 240V AC and can also be driven by a 110V DC control signal, enabling versatile control options in electrical systems.

This DPST (Double Pole Single Throw) relay supports a switching current of 16A at an operational voltage rated up to 250V AC, making it suitable for a wide range of commercial and industrial applications requiring moderate power loads.

Equipped with tunnel-type terminals, the relay accommodates conductors ranging between 1.5 mm² and 4 mm² with a recommended tightening torque of 1 N·m, ensuring safe and reliable electrical connections. Its compact DIN rail mounting saves valuable panel space, with overall dimensions of 86 mm length, 84 mm height, and 18 mm width.

The relay provides impulse duration settings from 50 milliseconds to 1 second, allowing flexible timing for pulse control operations. It supports a switching frequency of up to 5 operations per minute, appropriate for intermittent switching tasks such as lighting control or stairwell/corridor timed switching.

Designed to withstand environmental conditions from -20°C to 50°C and relative humidity up to 95% at 55°C, it features IP20 protection when open and IP40 protection when enclosed, ensuring durability in typical panel installations.

Electrical durability is robust with 200,000 cycles for AC-21 duties and 100,000 cycles for AC-22 duties, reflecting long-term reliability in standard switching applications. Supports moderate power loads up to 16A switching current.

Rated for 250V switching voltage for AC circuits. Impulse durations adjustable for precise timing control. Compact DIN rail mounting for efficient panel use. Reliable tunnel terminal connections with appropriate torque. Wide operating temperature and humidity tolerance.

Durable electrical switching mechanism with high cycle count.

The Schneider Electric A9C30812 relay is ideal for centralized lighting control, remote push-button switching of general-purpose loads, and integration into illuminated push-button control circuits in commercial and industrial environments. This product contributes to efficient and sustainable electrical installations.

Choose this product from Schneider Electric's trusted Acti9 iTL series for reliable switching performance and compact form factor, perfectly suited for electrical control panels requiring durable and flexible power relay solutions.
