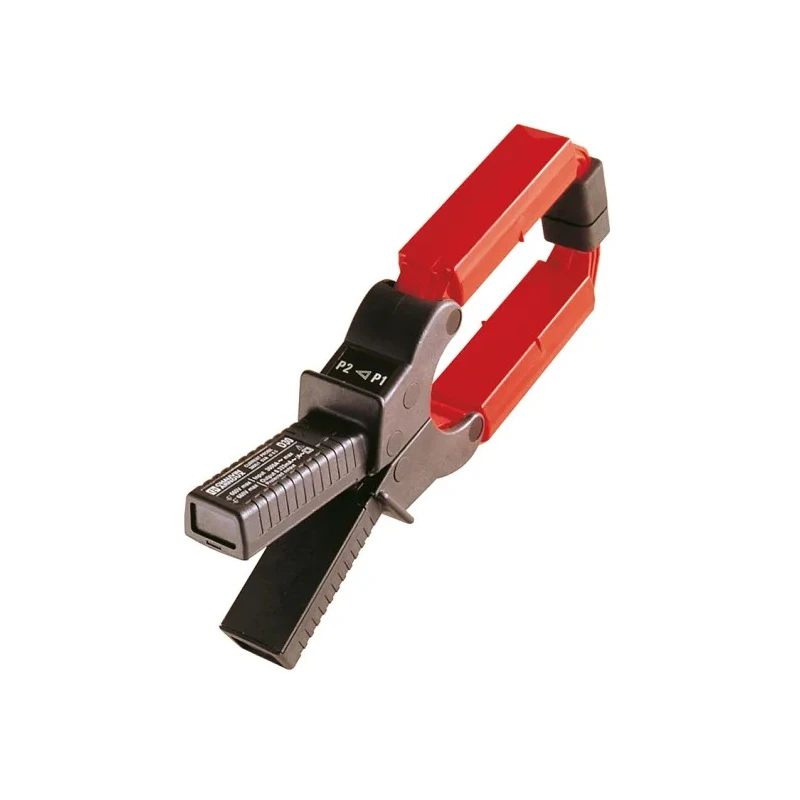

Chauvin Arnoux Current Clamp AC Adapter 3 kA AC Max P01120057A

Free Delivery in India | Lowest Global Shipping Charges

Chauvin Arnoux Current Clamp AC Adapter 3 kA AC Max P01120057A

Name: Chauvin Arnoux Current Clamp AC Adapter 3 kA AC Max P01120057A
Brand: Chauvin Arnoux
SKU: 315530
Price: 20.22 USD
Availability: InStock



Category Current Clamp Brand Chauvin Arnoux Condition New

Specifications

Country of Origin	France
Accuracy	±2 %
Output	2 m coaxial lead with insulated BNC plug
Brand	Chauvin Arnoux
Battery type	AA, Alkaline, LR6
Model	P01120057A
Cable Length	1.5mm
Connector Type	BNC
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-20°C
Adapter Type	AC
Max. Jaw Opening	90 mm
Safety Category Level	CAT IV
Safety Category Voltage	300, 600V
Maximum AC Current	3kA
Maximum Conductor Size	64mm

Key Features

The clamp features a maximum AC current rating of 3 kA for heavy-duty applications.
Accuracy is maintained within ±2% ensuring reliable measurement results.
The wide jaw opening of 90 mm accommodates large cables and small busbars.
Includes a 2 m coaxial lead with an insulated BNC plug for oscilloscope connectivity.
Designed for use in harsh environments with an operating temperature range from -20°C to 50°C.
Supports maximum conductor sizes up to 64 mm diameter.
Equipped with a 3-position switch to select current measurement ranges conveniently.
Compatible with AA alkaline LR6 batteries for power supply.

Product Description

Chauvin Arnoux P01120057A is an AC Current Clamp adapter designed for precise measurement of AC current up to 3 kA with ±2% accuracy. This high-performance clamp is ideal for industrial, laboratory, construction, HVAC, and electrical testing applications where accurate current readings are essential.

The clamp offers a wide jaw opening of 90 mm to accommodate larger cables and busbars, making it versatile for various electrical setups. It features a 2 m coaxial cable with an insulated BNC connector allowing direct connection to oscilloscopes and other measurement instruments. The three-position switch on the handle simplifies the process of selecting measurement ranges to suit the current being tested.

Constructed to operate reliably in environments between -20°C and 50°C, the clamp ensures consistent performance even under challenging conditions. It supports conductors up to 64 mm in diameter and is powered by common AA alkaline LR6 batteries. Safety is paramount with this device, meeting CAT IV safety category levels and voltage ratings up to 600 V, conforming to IEC 1010-1 and IEC 1010-2-032 standards.

The D38N oscilloscope-style current probe outputs voltage signals in millivolts correlated to current measurements, enabling accurate oscilloscope readings. It is suitable for detailed and high-frequency measurements with bandwidth from 10 Hz to 50 kHz depending on current.

The clamp’s 3 kA maximum current rating makes it suitable for high current industrial monitoring. Its rugged build and compliance with international safety standards ensure durability and operator protection. Wide jaw opening and selectable ranges improve ease of use on different conductor sizes.

Long 2 m coaxial cable with BNC connector facilitates flexible setup in test environments. AC adapter type clamp designed specifically for AC current measurements with high precision.

This product is an essential tool for professionals in electrical maintenance, commissioning, and quality control, offering accuracy, reliability, and compliance with safety standards. Browse more measuring and testing instruments on EnvMart to find complementary test equipment and accessories for your industrial and laboratory needs.
