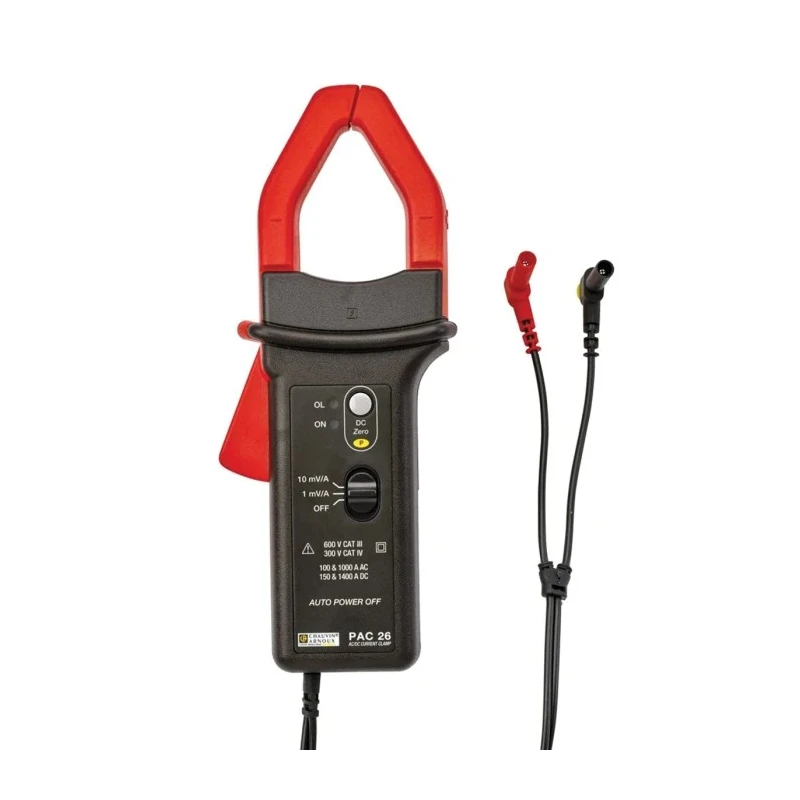

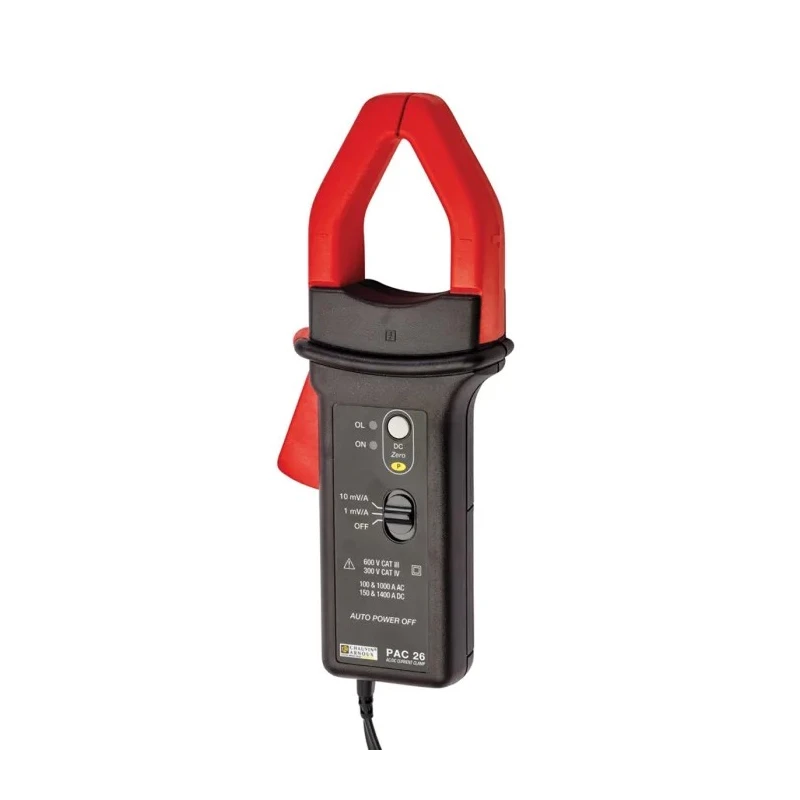

Chauvin Arnoux Current Clamp AC/DC Adapter 1400 A DC Max 1000 A AC Max Voltage Output P01120126

Chauvin Arnoux P01120126 Current Clamp with AC/DC adapter is engineered for industrial and laboratory use to measure both direct and alternating currents accurately up to high levels. This current clamp is designed to handle a maximum DC current of 1400 A and an AC current up to 1000 A, making it suitable for demanding electrical testing and monitoring applications in construction, manufacturing, and electrical maintenance.

The clamp features a large conductor capacity of up to 39 mm diameter, allowing clamping of thick cables and busbars. It includes a 1.5 meter cable equipped with a BNC jack isolated male connector for secure and stable connections to measuring instruments.

Operating safely within the temperature range of -10°C to 55°C, it provides robust performance with a battery life of around 50 hours, reducing downtime for charging or replacement. The clamp complies with CAT III and CAT IV safety category standards, supporting voltage ratings of 300 V and 600 V respectively, for use in versatile industrial environments.

This model delivers both DC and AC voltage output signals with a dual sensitivity output/input ratio of 10 mV/A and 1 mV/A, ensuring enhanced resolution and precise measurements. The device incorporates a ZeroDC adjustment system and an option to deactivate automatic standby mode for continuous operation when required.

Manufactured in France with stringent quality control, the Chauvin Arnoux P01120126 is a reliable and durable current clamp designed for electrical professionals, electrical safety inspectors, and maintenance technicians.

Supports maximum direct current measurement up to 1400 A. Allows alternating current measurement up to 1000 A maximum. High accuracy of ±1.5 percent ensures reliable readings. Suitable for conductors up to 39 mm in diameter.

Includes 1.5 m cable with BNC jack isolated male connector. Operates safely in temperatures ranging from -10°C to 55°C. Battery life of approximately 50 hours per charge. Designed for CAT III and CAT IV safety levels with voltage ratings of 300 V and 600 V.

Output type is voltage with an output/input ratio of 10 mV/A and 1 mV/A. Made in France, ensuring high manufacturing standards.

Ideal for usage in industrial, laboratory, electrical safety, HVAC, manufacturing, and construction sectors. Available in a single unit with no additional calibration included by default.
