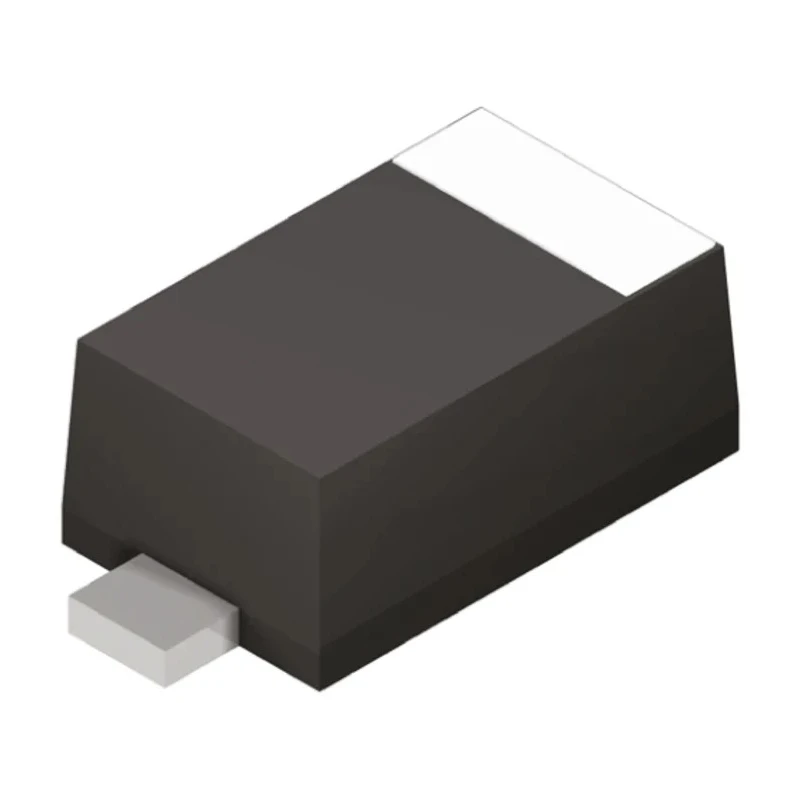

Nexperia 1.47 V General Purpose Zener Diode Surface Mount 830 mW 2 % Tolerance 2-Pin SOD-123 BZT52H-B47,115

Nexperia BZT52H-B47,115 is a high precision, general purpose Zener diode designed for surface mount applications. It features a nominal Zener voltage of 1.47 V and can dissipate power up to 830 mW. Packaged in the compact SOD-123F case, the diode is suitable for electronic, semiconductor, industrial, and automotive applications requiring voltage regulation and protection.

This Zener diode provides a stable voltage reference with a tight ±2 % tolerance, which is essential for consistent circuit performance. The diode operates efficiently with a test current of 5 mA and a maximum Zener impedance of 90 Ω, ensuring minimal voltage fluctuation under load.

Its operating temperature range from -65°C to 150°C and compliance with the AEC-Q101 automotive standard make it robust for harsh environments and automotive electronic uses. The low reverse leakage current of 50 nA minimizes leakage losses, supporting energy-efficient designs.

The diode's compact length of 1.7 mm and height of 1.2 mm in the SOD-123 package enable easy mounting on space-constrained PCBs. The product is ideal for power supply regulation, signal conditioning, voltage clamping, and other electronic protection uses in industrial, manufacturing, automotive, and laboratory equipment.

Provides reliable voltage regulation in electronic circuits. Compact surface mount SOD-123F package supports high-density PCB assembly. Nominal Zener voltage of 1.47 V with narrow tolerance enhances precision. Maximum power dissipation of 830 mW supports moderate power requirements.

Wide operating temperature range from -65°C to 150°C for varied environments. Low leakage current reduces power loss and enhances efficiency. AEC-Q101 certified for automotive quality and reliability. Typical voltage temperature coefficient of 51.8 mV/K ensures stable performance.

2-pin configuration for straightforward circuit integration. Suitable for discrete semiconductor applications and general-purpose electronic components. Explore more high-quality semiconductor components and Zener Diodes in our extensive EnvMart catalog for industrial, electronic, and automotive applications.
