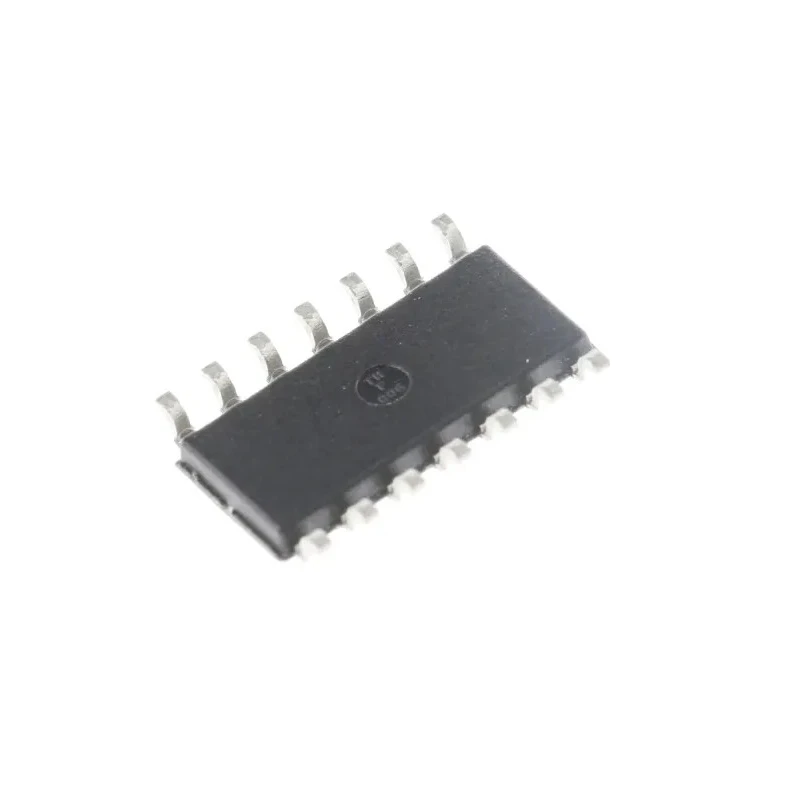

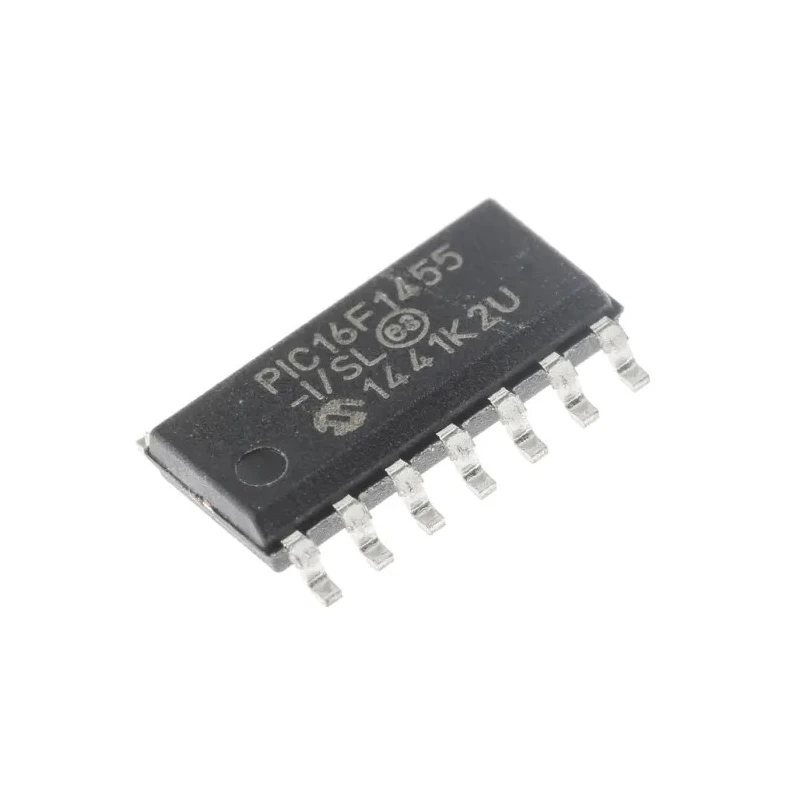

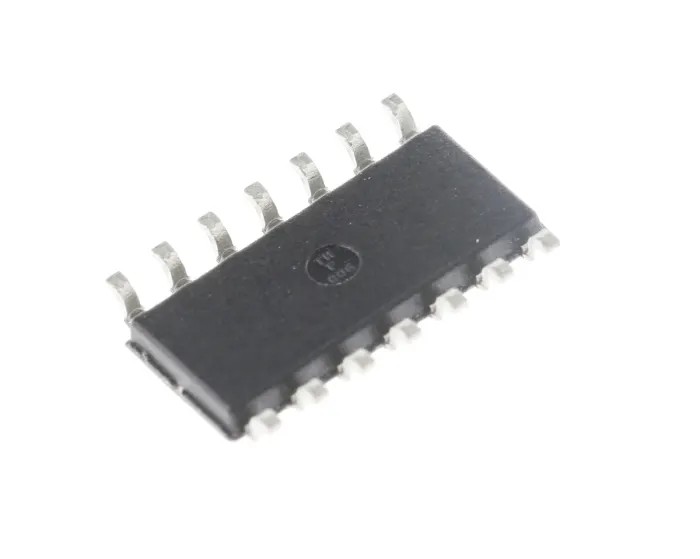

Microchip 8 bit PIC PIC16F Microcontroller 48 MHz 14kB FLASH 14-Pin SOIC PIC16F1455-I/SL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 8.65mm |
| Model | PIC16F1455-I/SL |
| Width | 6mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB Technology |
| Ram size | 1.024kB |
| Interface Type | EUSART, SPI, USB |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 48MHz |
| Number of Programmable I/Os | 16 |
| Analogue Comparators | 2 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 5 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- The microcontroller uses Microchip's enhanced mid-range 8-bit PIC architecture.
- It offers 14kB program memory and 1.024kB RAM for efficient processing.
- Includes multiple interfaces such as EUSART, SPI, and USB communications.
- Supports up to 16 programmable input/output pins and features 1 DAC with 5-bit resolution.
- Designed for low power operation with extreme low-power (XLP) technology support.
- Operating temperature range from -40°C to 85°C ensures industrial reliability.
- Implements 5 x 10-bit ADC channels and 2 analog comparators for sensor interfacing.
- Compatible with in-circuit serial programming (ICSP) and includes multiple timers.
Product Description
Microchip PIC16F1455-I/SL is an 8-bit microcontroller based on the enhanced mid-range PIC architecture, offering 48 MHz maximum CPU speed and 14kB flash program memory. Designed for embedded applications, it features multiple communication interfaces including EUSART, SPI, and USB, making it suitable for a wide range of industrial and commercial systems.
This microcontroller features 1.024kB of RAM and 16 programmable I/O pins, supported by peripherals such as two 8-bit timers, one 16-bit timer, two 10-bit PWM modules, and a 5-channel 10-bit ADC system. It also incorporates a 5-bit DAC and two analog comparators, allowing for precise analog and digital signal processing.
With an operating voltage range from 1.8V to 5.5V and a temperature tolerance spanning -40°C to 85°C, the PIC16F1455-I/SL supports robust performance in varied environmental conditions. Its compact 14-pin SOIC surface mount package measures 8.65mm in length, 6mm width, and 1.5mm height, making it ideal for space-constrained applications.
This microcontroller supports Microchip's Extreme Low-Power (XLP) technology and features an internal voltage reference plus a configurable oscillator with ±0.25% accuracy. The device architecture includes a 16-level deep hardware stack and a 49-instruction set for efficient program execution.
The microcontroller uses an 8-bit PIC core with RISC instruction set architecture. Supports in-circuit serial programming (ICSP) for easy firmware updates and development. Integrates USB technology, enabling device connectivity and communication in embedded systems.
Ideal for applications in consumer electronics, industrial automation, and embedded control systems. Complies with RoHS standards, ensuring environmental safety and reliability.
This microcontroller is a versatile choice for electronics designers requiring a balance of performance, power efficiency, and compact form factor. Explore the Microchip Microcontroller range and related products at EnvMart for your developmental and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 48 MHz.
It offers a program memory size of 14 kB.
This microcontroller has 16 programmable input/output pins.
It supports EUSART, SPI, and USB communication interfaces.
The operating voltage range is from 1.8V to 5.5V.
It features a RAM size of 1.024 kB.
The operating temperature range is from -40°C to 85°C.
It measures 8.65 mm in length, 6 mm in width, and 1.5 mm in height.
This model implements 5 ADC channels, each with 10-bit resolution.
It comes in a 14-pin SOIC surface mount package.
Yes, it complies with RoHS standards, ensuring environmental safety.
It uses an enhanced mid-range 8-bit PIC architecture with a RISC instruction set.
