Microchip PIC16LF1947-I/PT 8 bit PIC Microcontroller 32 MHz 28kB FLASH 64-Pin TQFP

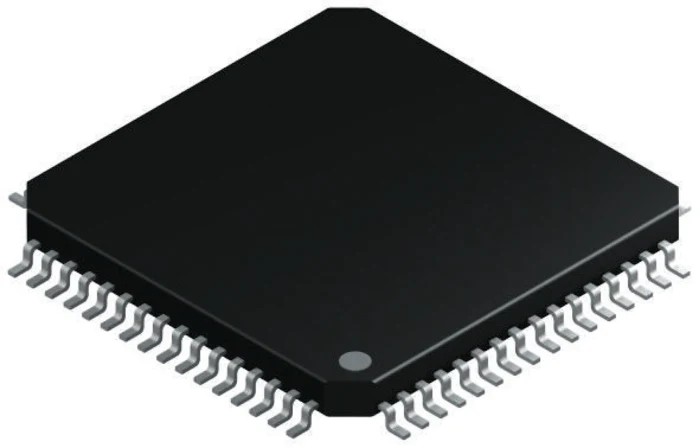

Microchip PIC16LF1947-I/PT is an 8 bit PIC Microcontroller designed on the enhanced mid-range PIC16F core, providing up to 8 MIPS performance with a maximum CPU speed of 32 MHz. This microcontroller features 28 kB of in-system programmable FLASH memory and 1 kB of RAM, packed in a compact 64-Pin TQFP surface mount package measuring 10 mm by 10 mm with a height of 1.05 mm.

Designed for industrial and embedded applications, the device offers 54 programmable I/O pins, enabling versatile interfacing options. It supports a voltage supply from 2.5 V to 3.6 V and a maximum power dissipation of 800 mW, making it suitable for low power consumption projects using Microchip’s nanoWatt XLP technology.

The PIC16LF1947-I/PT includes advanced peripherals such as five 8-bit timers and one 16-bit timer, three enhanced Capture/Compare/PWM modules, three analogue comparators, and 17-channel 10-bit analogue-to-digital converters. Communication is facilitated through two Master Synchronous Serial Ports supporting SPI and I2C protocols and two Enhanced Universal Synchronous/Asynchronous Receiver Transmitters (EUSART), ensuring robust and flexible data transfer.

Additional features include integrated LCD controller support for 184 segments, a fixed voltage reference, watchdog timer, brown-out reset, power-on reset, and various oscillator options with ±1% frequency accuracy. The microcontroller uses a reduced instruction set architecture (RISC) with 49 instructions and a 16-level deep hardware stack.

Operating temperature range from -40°C to 85°C allows this device to be applied in automotive, industrial control, consumer electronics, and instrumentation applications. The PIC16LF1947-I/PT is RoHS compliant, confirming its adherence to environmental and safety standards.

Operates with a maximum clock frequency of 32 MHz. Features 28 kB of FLASH program memory and 1 kB RAM. Includes 54 programmable I/O pins and 5 timers. Supports a supply voltage range from 2.5V to 3.6V. Equipped with 17-channel 10-bit ADC for precise analogue input.

Operates within temperature range of -40°C to 85°C. Integrates multiple communication peripherals including SPI, I2C, and EUSART. Incorporates advanced power management with nanoWatt XLP technology. Provides flexible PWM modules and comparators to enhance control capabilities.

Ideal for use in electronic components manufacturing, embedded system design, instrumentation, and industrial automation. Explore the wide range of Microchip Microcontrollers and related products at EnvMart for efficient and reliable embedded solutions.
