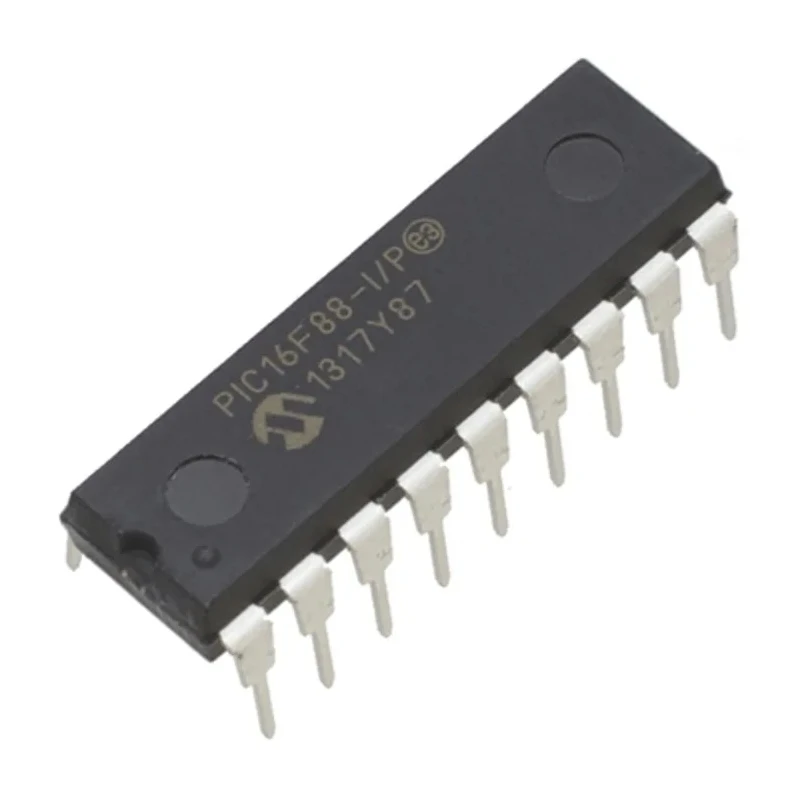

Microchip 8-bit PIC Microcontroller PIC16F88-I/P 20 MHz 7.168 kB Flash 256B EEPROM 18-Pin PDIP

Microchip PIC16F88-I/P is a high-performance 8-bit PIC microcontroller designed for versatile embedded applications. It operates at a maximum clock speed of 20 MHz and integrates 7.168 kB of flash program memory and 256 bytes of EEPROM to store code and data, respectively. The device comes in an 18-pin PDIP through-hole package, making it ideal for prototyping and development on traditional PCB layouts.

This microcontroller features 22 programmable I/Os and supports SPI interface communications. It is equipped with 7 channels of 10-bit ADCs, enabling analog input signal processing essential for sensor interfacing in industrial, laboratory, and commercial embedded systems.

The built-in peripherals include a capture/compare/PWM module for motor control and other timing functions, as well as multiple timers (two 8-bit and one 16-bit timers) for precise time keeping and event counting in various embedded control scenarios.

With an operating temperature range from -40°C to 85°C and a maximum supply voltage of 5.5 V, the PIC16F88-I/P is well-suited for rugged industrial environments. Its low power dissipation (1 W) helps maintain energy efficiency in battery-powered designs.

The microcontroller’s architecture is based on RISC instruction set, offering 35 instructions and an 8-level deep hardware stack, supporting efficient and fast code execution. In-circuit serial programming (ICSP) and in-circuit debugging (ICD) capabilities further simplify development and testing.

The microcontroller operates up to 20 MHz CPU speed for efficient processing. Program memory size includes 7.168 kB of flash and 256 bytes of EEPROM storage. Device has 22 programmable I/O pins suitable for flexible interfacing.

Supports SPI interface and includes 7 channels of 10-bit ADCs for analog input. Features multiple timers: two 8-bit and one 16-bit timers for precise timing control. Includes peripherals such as capture/compare/PWM module and synchronous serial port (SSP).

Operates in temperature range from -40°C to 85°C, supporting industrial applications. Package type is through-hole PDIP with physical dimensions 22.99 mm length, 6.6 mm width, and 3.68 mm height. Maximum supply voltage is 5.5 V with low power dissipation of 1 W for energy efficiency.

Built on RISC architecture with 35 instruction set and 8-level hardware stack.

This microcontroller is ideal for various applications including industrial automation, consumer electronics, and embedded control systems that require reliable, low-power, and easy-to-program microcontrollers. Its compatibility with popular Microchip development tools and DesignSpark software enhances the design process.
