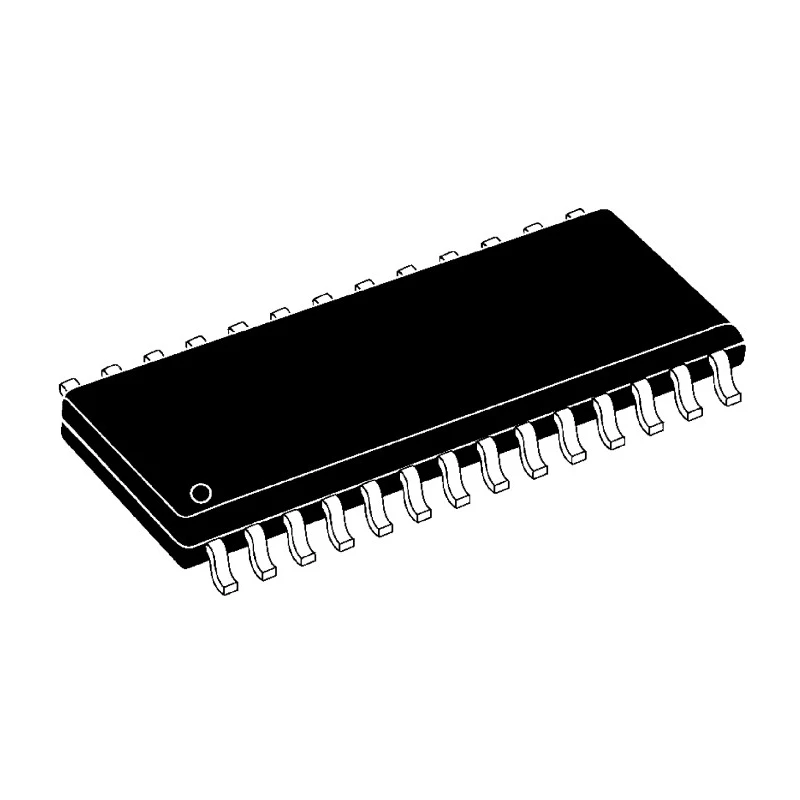

Microchip 8-bit PIC Microcontroller PIC16F1512-I/SO FLASH 3.5kB 20 MHz 28-Pin SOIC

Microchip PIC16F1512-I/SO is an 8-bit PIC microcontroller designed for reliable embedded applications requiring low power and flexible peripheral integration. It operates at up to 20 MHz maximum clock frequency and houses 3.5kB of FLASH program memory along with 128-bit RAM, enabling efficient program execution and data handling.

This device comes in a compact 28-pin SOIC surface mount package measuring 17.9mm by 7.5mm by 2.35mm, making it suitable for space-constrained PCB designs. Its 25 programmable input/output pins allow extensive interfacing options with sensors, actuators, and communication modules.

The PIC16F1512 microcontroller features advanced peripherals including a 17-channel 10-bit Analog-to-Digital Converter (ADC), two Capture/Compare/PWM modules, voltage reference module, and supports communication protocols like SPI and I2C via the Master Synchronous Serial Port (MSSP). It also includes an enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) for serial communication.

Designed with Microchip's enhanced mid-range RISC architecture, the PIC16F1512 provides a 16-level hardware stack and 49 instructions to balance performance and code density. The device's power management includes features like Power-On Reset (POR), Power-Up Timer (PWRT), Low Power Brown-Out Reset (LPBOR), and an Extended Watchdog Timer (WDT) to ensure robustness in demanding industrial and automotive environments.

With a supply voltage range from 2.3V to 5.5V and operating temperature range from -40°C to 85°C, this microcontroller is ideal for industrial, automotive, and general embedded control applications. It complies with ISO/TS 16949 automotive standards, ensuring quality and reliability for automotive system integration.

20 MHz maximum CPU speed delivering up to 5 MIPS. 3.5kB FLASH program memory with FLASH program memory type. 25 programmable I/O pins for flexible connectivity. 17-channel 10-bit ADC for analog signal measurement. On-chip voltage reference and capacitive voltage divider.

Multiple timers including two 8-bit and one 16-bit timer modules for precise timing control. Support for SPI, I2C, and asynchronous serial communication. Compact 28-pin SOIC surface-mount package. Operating temperature range from -40°C to 85°C for extended environmental tolerance.

Choose the Microchip PIC16F1512-I/SO microcontroller for your next embedded system that demands efficient processing, low power consumption, and reliable operation in industrial, automotive, and commercial applications. Browse the EnvMart catalog for additional Microchip Microcontrollers and semiconductor components.
