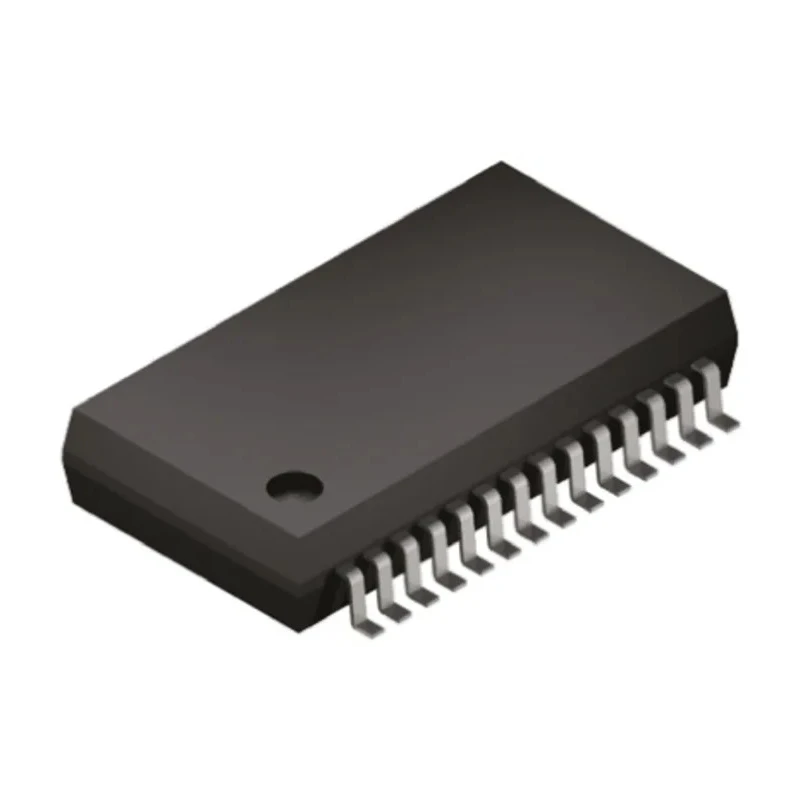

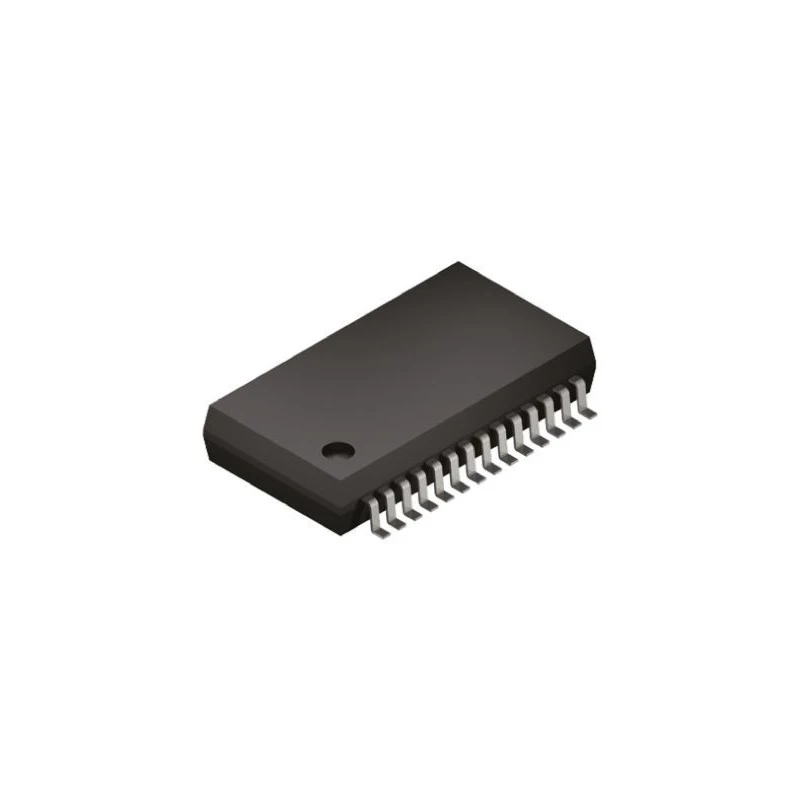

Microchip 8 bit PIC PIC16F Microcontroller 32 MHz 256B FLASH 28-Pin SSOP PIC16F1783-I/SS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.85mm |
| Length | 10.5mm |
| Model | PIC16F1783-I/SS |
| Width | 5.6mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 512bit |
| Pin Count | 28 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 256B |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 3 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 11 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates with a supply voltage range from 2.3V to 5.5V ensuring wide application compatibility.
- Contains 25 programmable input/output pins for versatile interfacing.
- Equipped with 11 channels of 12-bit Analog to Digital Converters for precise analog signal processing.
- Includes multiple timers and enhanced peripherals including two CCP modules and two operational amplifiers.
- Features low-power consumption technology with power-on reset and brown-out reset functions.
- Supports in-circuit serial programming and debugging for easy development and testing.
- Compliant with automotive standard ISO/TS 16949 to ensure quality and reliability.
- Compact dimensions (10.5mm length, 5.6mm width, 1.85mm height) for efficient PCB layout.
Product Description
Microchip PIC16F1783-I/SS is an 8 bit PIC microcontroller designed with a 32 MHz maximum CPU speed, 256 bytes of flash program memory, and 512 bits of RAM. It is housed in a compact 28-Pin SSOP surface mount package suitable for embedded system designs requiring efficient and versatile microcontrollers.
The device operates within a voltage range of 2.3V to 5.5V, making it suitable for various industrial and automotive applications. It features 25 programmable input/output pins, three analog comparators, and 11 channels of 12-bit ADCs enhancing its analog interfacing capabilities.
Additional integrated peripherals include two 8-bit timers, one 16-bit timer, two Capture/Compare/PWM (CCP) modules, two programmable switch mode controllers, and two operational amplifiers. The microcontroller also supports in-circuit serial programming (ICSP) and debugging (ICD) to facilitate development and troubleshooting.
Power management features include power-on reset, a power-up timer, programmable low power brown-out reset, and an enhanced watchdog timer to maintain system stability. This microcontroller adheres to the automotive standard ISO/TS 16949 ensuring high quality for automotive-grade designs.
Its compact dimensions (length 10.5mm, width 5.6mm, height 1.85mm) facilitate efficient PCB design. The device is built on a RISC architecture with a 16-level hardware stack and supports 49 instructions, enabling efficient processing at up to 8 MIPS.
Operates with supply voltage from 2.3V to 5.5V. Provides 25 programmable I/O pins. Includes 11 x 12-bit ADCs for precise analog input. Equipped with multiple timers and PWM modules. Supports in-circuit programming and debugging.
Meets ISO/TS 16949 automotive standard. Operates in temperatures ranging -40°C to 85°C. Compact SSOP package for surface mount applications. Built on efficient RISC architecture with 49 instructions. Power management features ensure reliability.
This microcontroller is ideal for industrial, automotive, and embedded applications requiring reliable, low-power operation and versatile interfacing capabilities. Explore our Electronics & Electricals category for more Microcontrollers and semiconductor components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this microcontroller is 32 MHz.
It operates with a supply voltage range from 2.3V to 5.5V.
This model features 25 programmable input/output pins for versatile interfacing.
It is housed in a 28-Pin SSOP (Shrink Small Outline Package) suitable for surface mount applications.
The operating temperature range is from -40°C to 85°C.
It includes 11 channels of 12-bit Analog to Digital Converters for precise analog signal processing.
This microcontroller complies with the automotive standard ISO/TS 16949, ensuring quality and reliability.
It has a RAM size of 512 bits.
This model is built on a RISC (Reduced Instruction Set Computing) architecture.
It includes three timers, enhancing its functionality for various applications.
The dimensions are 10.5mm in length, 5.6mm in width, and 1.85mm in height.
It supports in-circuit serial programming (ICSP) and debugging (ICD) for easy development and testing.
