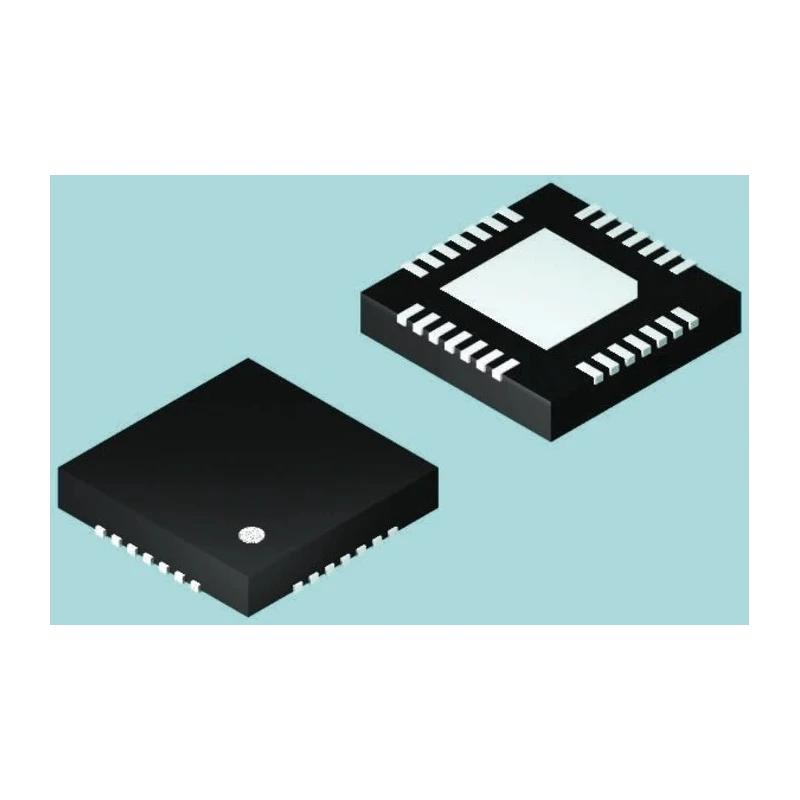

Microchip PIC16F1518-I/MV 8-bit PIC Microcontroller 20 MHz 28kB FLASH 28-Pin UQFN

Microchip PIC16F1518-I/MV 8-bit PIC microcontroller integrates a 20 MHz maximum CPU speed with 28 kB FLASH program memory and 1.024 kB RAM. It is housed in a compact 28-pin UQFN surface-mount package measuring 4 mm × 4 mm × 500 μm, making it suitable for dense electronic designs in industrial and consumer applications.

This microcontroller employs Microchip's enhanced mid-range PIC architecture featuring a 16-level deep hardware stack and 49 instruction set enabling efficient code execution. It supports multiple peripherals including a 17-channel 10-bit Analog to Digital Converter (ADC), two Capture/Compare/PWM modules, a voltage reference module, and communication interfaces such as MSSP with SPI and I2C, as well as an enhanced EUSART.

Designed for robust operation, PIC16F1518-I/MV supports a wide operating temperature range from -40°C to +85°C and a supply voltage range from 2.5 V to 5.5 V. It incorporates power-saving features like low power brown-out reset, power-on reset, power-up timer, and an extended watchdog timer, making it ideal for battery-powered and power-sensitive embedded systems.

The device supports in-circuit serial programming (ICSP) and debugging (ICD) through low-voltage programming interfaces for efficient development and testing. Its small 28-pin UQFN package eases PCB layout optimization in space-constrained applications.

This microcontroller is well-suited for a wide range of applications including industrial control systems, consumer electronics, medical devices, and automotive electronics where reliable, low-power, and feature-rich 8-bit solutions are required.

Operates on 8-bit PIC architecture for general purpose embedded processing. 20 MHz maximum CPU speed enabling up to 5 MIPS performance. 28 kB FLASH and 1.024 kB RAM providing ample program and data memory. Wide operating voltage from 2.5 V to 5.5 V for flexible power supply options.

Includes 25 programmable I/O pins and rich peripheral set including ADC, timers, and serial interfaces. Compact 28-pin UQFN package suitable for surface mount assembly with 4 mm x 4 mm dimensions. Operating temperature from -40°C to +85°C for industrial environment compatibility.

Power management features such as brown-out reset and watchdog timer enhance system reliability. In-circuit programming and debugging support for fast development cycles. Complies with RoHS environmental standards. Explore EnvMart's extensive selection of Microcontrollers and embedded components for precise and reliable electronic design solutions.
