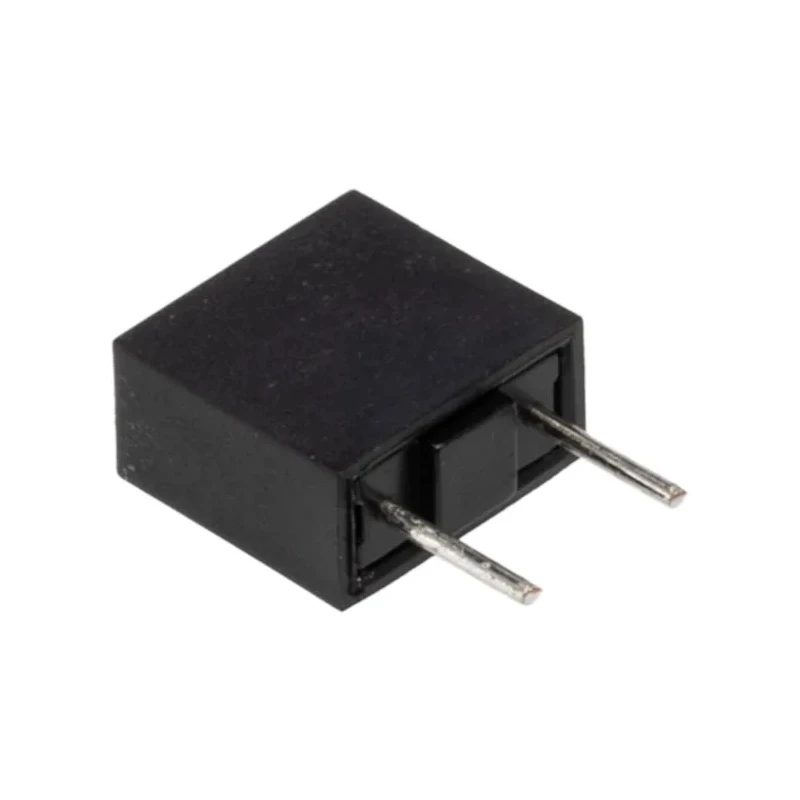

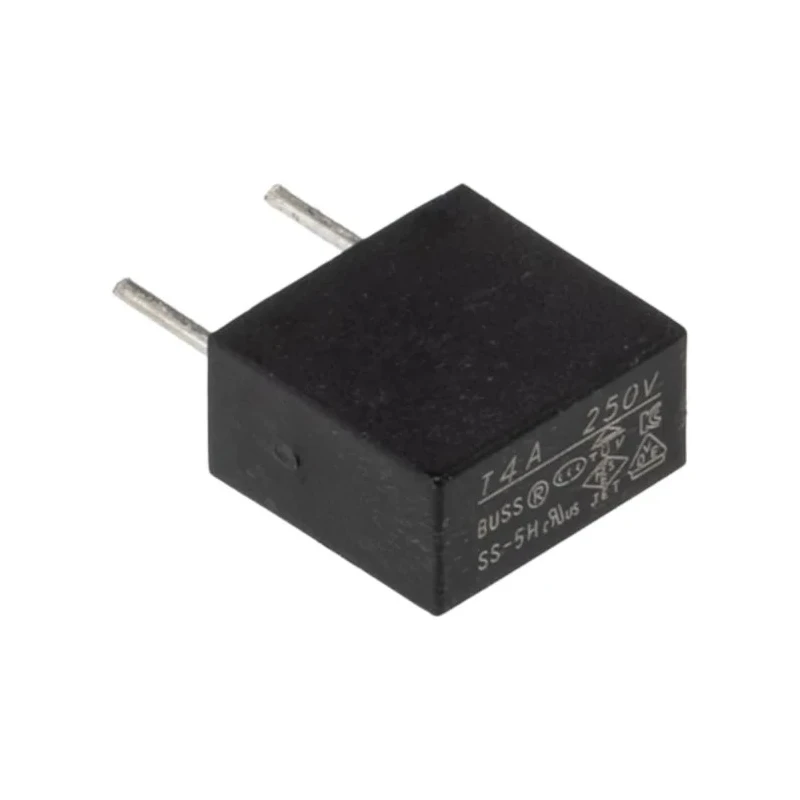

Eaton Fuse Radial Lead 4A Current Rating 250V AC Time Delay SS-5H-4A-BK

Name: Eaton Fuse Radial Lead 4A Current Rating 250V AC Time Delay SS-5H-4A-BK
Brand: Eaton
SKU: 314757
Price: 0.47 USD
Availability: InStock



Category Fuse Brand Eaton Condition New

Specifications

Country of Origin	China
Voltage	250V ac
Diameter	0.6mm
Brand	Eaton
Body Material	Plastic
Height	8.35mm
Length	8.5mm
Model	SS-5H-4A-BK
Width	4.3mm
Current Rating	4A
Series	SS-5H
Maximum Operating Temperature	+125°C
Minimum Operating Temperature	-40°C
Lead Length	4.3mm
Breaking Capacity	100A
Standards/Approvals	IEC 6017, TUV, IEC60174, UL 94V0, KCMark, MILSTD0F, VDE, PSE, RoHS
Fuse Characteristics	Time Delay
Lead Orientation	Radial

Key Features

Time delay characteristic offers protection against temporary surge currents and inrush currents.
Radial leads with 4.3mm length and 0.6mm diameter enable secure through-hole mounting on PCBs.
Plastic body material meets flammability standards with UL 94V0 rating for safety.
Breaking capacity of 100A interrupts significant fault currents efficiently.
Operates within a wide temperature range from -40°C to +125°C for diverse environments.
Meets multiple international standards including IEC 6017, TUV, VDE, and RoHS compliance.
Compact dimensions of 8.5mm length, 4.3mm width, and 8.35mm height allow space-saving electronic designs.

Product Description

Eaton SS-5H-4A-BK radial lead fuse is engineered for industrial and electronic overcurrent protection applications requiring reliable interruption of fault conditions while tolerating normal start-up surges.

With a 4A current rating and a voltage rating of 250V AC, this time-delay fuse ensures sensitivity to temporary inrush currents without nuisance blowing, making it ideal for motor controls, automation systems, and power supplies.

The radial lead configuration supports easy through-hole installation in control panels and circuit boards. The fuse body is constructed from flame-retardant plastic material classified to UL 94V0, ensuring safety in demanding environments.

Key performance includes a 100A breaking capacity for terminating high fault currents rapidly, and a robust operating temperature range from -40°C to +125°C for wide ambient conditions. The compact physical dimensions of 8.5mm × 4.3mm × 8.35mm facilitate integration into tightly-packed electronic assemblies.

Manufactured in China, this fuse conforms to major standards such as IEC 6017 and TÜV approvals, and is RoHS compliant, supporting environmental safety initiatives. Time delay characteristic offers protection against temporary surge currents and inrush currents.

Radial leads with 4.3mm length and 0.6mm diameter enable secure through-hole mounting on PCBs. Plastic body material meets flammability standards with UL 94V0 rating for safety. Breaking capacity of 100A interrupts significant fault currents efficiently.

Operates within a wide temperature range from -40°C to +125°C for diverse environments. Meets multiple international standards including IEC 6017, TUV, VDE, and RoHS compliance. Compact dimensions of 8.5mm length, 4.3mm width, and 8.35mm height allow space-saving electronic designs.

This Eaton SS-5H series fuse is suited for protective use in motor control circuits, power supply units, industrial sensors, actuators, and legacy through-hole electronic equipment requiring reliable and certified non-resettable fuses.
