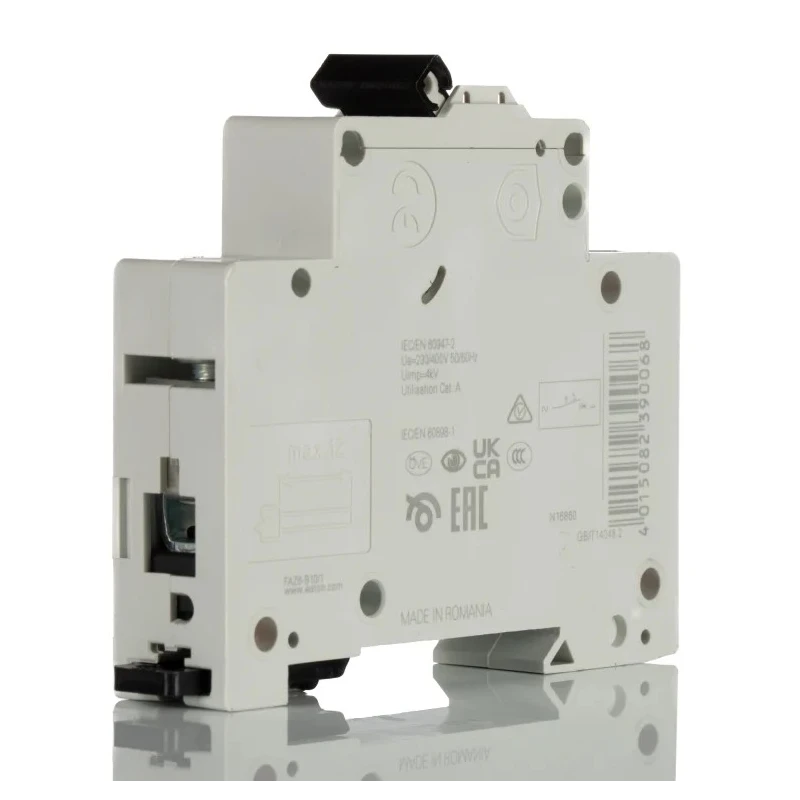

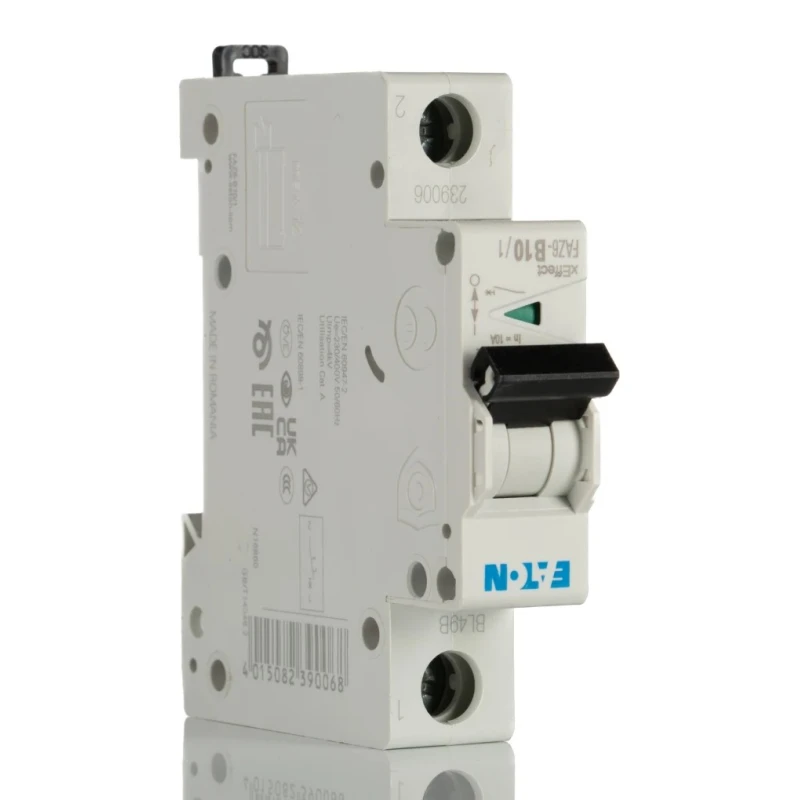

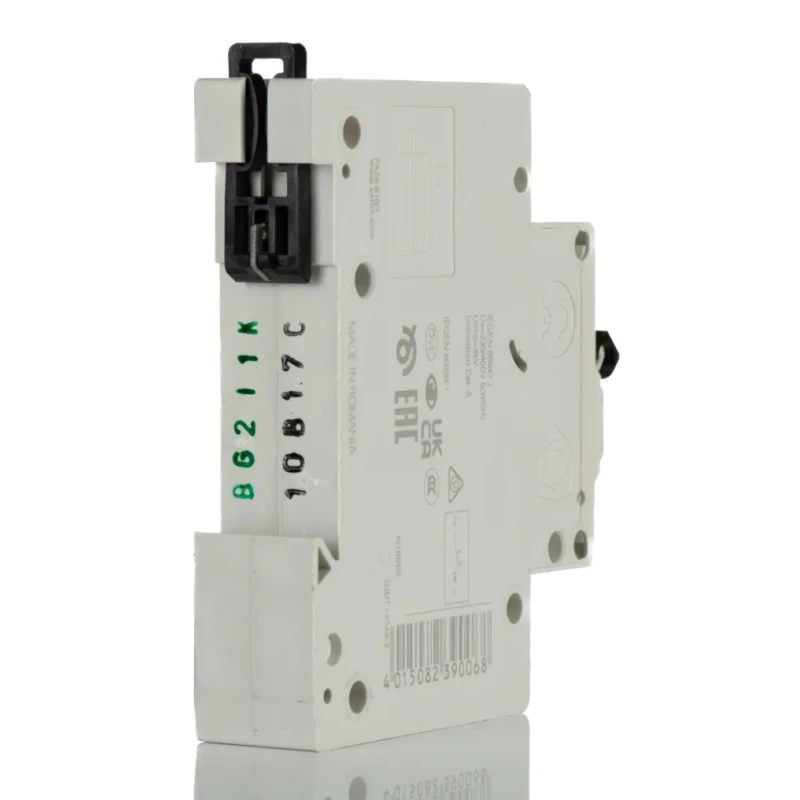

Eaton xEffect Single-Pole Miniature Circuit Breaker 1 Pole 10A Type B 400V AC 96V DC 6kA Breaking Capacity 239006 FAZ6-B10/1

Eaton 239006 FAZ6-B10/1 xEffect Series Miniature Circuit Breaker (MCB) is a single-pole, 10 ampere rated protective device designed for electrical circuit protection with a breaking capacity of 6kA. It operates reliably at 400V AC and 96V DC, making it suitable for residential, commercial, and industrial electrical systems.

The Type B tripping characteristic ensures the MCB trips swiftly at 3 to 5 times the rated current protecting circuits from overloads and short circuits, ideal for installations with low or negligible switching surges. Its thermal magnetic mechanism further enhances protection by combining thermal overload and magnetic short circuit detection.

Compact and robust, the MCB has a DIN rail mounting feature allowing easy and secure installation inside control panels or distribution boards. Its IP20 rating offers protection against accidental contact and penetration of solid objects larger than 12 millimeters.

This model complies with international standards including VDE, CE, CSA 22.2 No. 235, IEC/EN 60898, IEC/EN 60947-2, and UL 1077, ensuring quality and safety. It features twin-purpose terminals to support varied wiring requirements, adding to installation flexibility.

With physical dimensions of 80mm height, 17.5mm width, and 62mm depth and a lightweight of approximately 0.12kg, it is designed for spaces with compact layout requirements. The xEffect MCB offers a reliable operational lifecycle exceeding 10,000 operating cycles, providing durability for long-term applications.

Ideal for use in electrical automation, industrial controls, water treatment, HVAC, manufacturing, and building electrical systems, this MCB protects circuits against damage due to overload and short circuit effectively.

Rated 10A, suitable for single-phase circuits. Type B tripping for protection against moderate surges. Breaking capacity of 6kA for safety under fault conditions. Compact size with DIN rail mounting facilitates installation in confined spaces.

International standards compliance for robust and safe operation. Thermal magnetic trip mechanism enhances protective response. IP20 rated enclosure for user safety and device protection. Explore more Eaton MCB solutions and electrical protection devices with EnvMart for trusted industrial and commercial applications.
