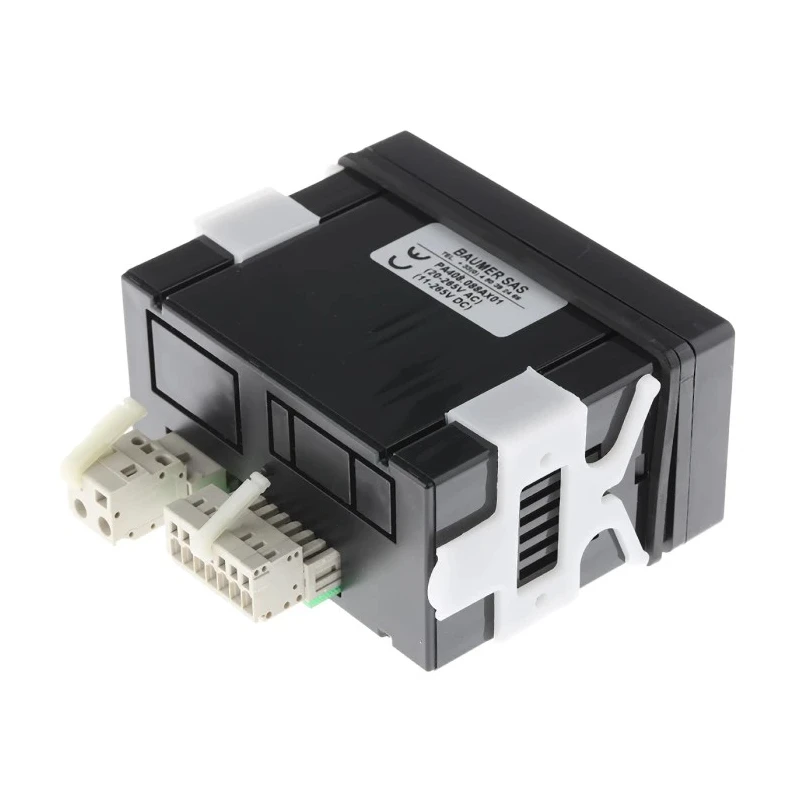

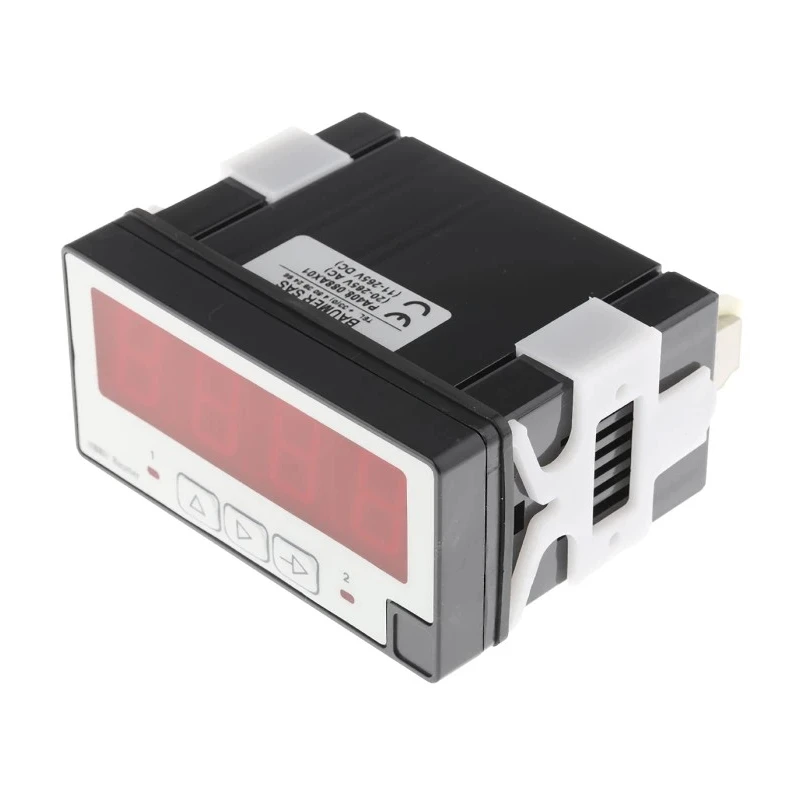

Baumer Digital Panel Multifunction Meter for Temperature, Resistance, Current, Voltage, LED Display, 45 mm x 93 mm PA408
Specifications
| Country of Origin | Spain |
|---|---|
| Display Type | LED |
| Brand | Baumer |
| Model | PA408 |
| Depth | 90mm |
| Series | PA408 |
| Maximum Operating Temperature | 60°C |
| Meter Type | Electrical |
| Number Of Digits | 4 |
| Minimum Operating Temperature | -10°C |
| Digit height | 14mm |
| Standards/Approvals | CE |
| Properties Measured | Temperature, Resistance, Current, Voltage |
| Cutout Height | 45mm |
| Cutout Width | 93mm |
| Minimum Measurement | -9999 |
Key Features
- Compact 45 mm x 93 mm cutout suitable for panel mounting.
- Four-digit LED display with 14 mm high digits for clear readings.
- Configurable inputs include voltage ±10 V, current ±20 mA, and voltage ±200 Vdc.
- Temperature sensor compatibility with PT100, PT1000, and thermocouples J, K, T, and N.
- Resistance measurement range from 0.1 Ω to 50.99 kΩ with programmable decimal points.
- Includes two alarm outputs and sensor excitation at 24 Vdc.
- Universal power supply supports 12 to 265 Vdc and 20 to 265 Vac operation.
- Operating temperature range from -10°C to 60°C ensures reliable performance.
Product Description
Baumer PA408 digital panel multifunction meter offers versatile measurement of temperature, resistance, current, and voltage with a bright LED display.
This meter features a compact panel cutout size of 45 mm height by 93 mm width and a depth of 90 mm, making it ideal for tight panel installations in industrial automation applications.
The four-digit LED display has 14 mm characters, enabling clear visibility of measured values. It provides configurable inputs compatible with various sensor types, including voltage inputs of ±10 V and ±200 Vdc, current input up to ±20 mA, PT100 and PT1000 resistance temperature detectors, and thermocouples of types J, K, T, and N.
The resistance measurement range extends from 0.1 Ω to 50.99 kΩ, with programmable decimal positioning for precise readings. Additionally, two alarm outputs provide versatile control signal options, with sensor excitation supplied at 24 Vdc.
The universal power supply capability ranges from 12 to 265 Vdc and 20 to 265 Vac, allowing flexible installation across various industrial power conditions. The meter is designed to operate effectively in ambient temperatures from -10°C to 60°C and carries CE certification, ensuring suitability for industrial environments.
Compact panel size with 45 mm by 93 mm cutout dimensions for easy integration. LED display with clear 14 mm characters for accurate readouts. Multiple input types for voltage, current, temperature, and resistance measurements.
Programmable display allowing decimal point adjustments and measurement range customization. Two alarm outputs and 24 Vdc sensor excitation for process control applications. Wide universal power supply range enhances installation flexibility.
Operating temperature range suitable for varied industrial conditions. CE certified, assuring compliance with safety and quality standards.
This multifunction meter is widely used in industrial automation, process control, electrical testing, HVAC systems, and manufacturing plants where precise digital measurement and control are critical.
Explore additional Baumer instrumentation and Multi-Function Panel Meters on EnvMart for comprehensive automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resistance measurement range extends from 0.1 Ω to 50.99 kΩ, with programmable decimal points for precise readings.
This model is compatible with PT100 and PT1000 resistance temperature detectors, as well as thermocouples of types J, K, T, and N.
It operates effectively in ambient temperatures ranging from -10°C to 60°C.
The unit features a universal power supply that supports 12 to 265 Vdc and 20 to 265 Vac operation.
The cutout dimensions required for panel mounting are 45 mm in height and 93 mm in width.
The LED display features four digits, with each character measuring 14 mm in height for clear visibility.
Yes, it includes two alarm outputs for versatile control signal options.
It can measure temperature, resistance, current, and voltage.
Yes, the Baumer PA408 carries CE certification, ensuring compliance with safety and quality standards.
The depth of this model is 90 mm, making it suitable for tight panel installations.
Yes, the minimum measurement value is -9999, allowing it to display negative values.
It is widely used in industrial automation, process control, electrical testing, HVAC systems, and manufacturing plants.
