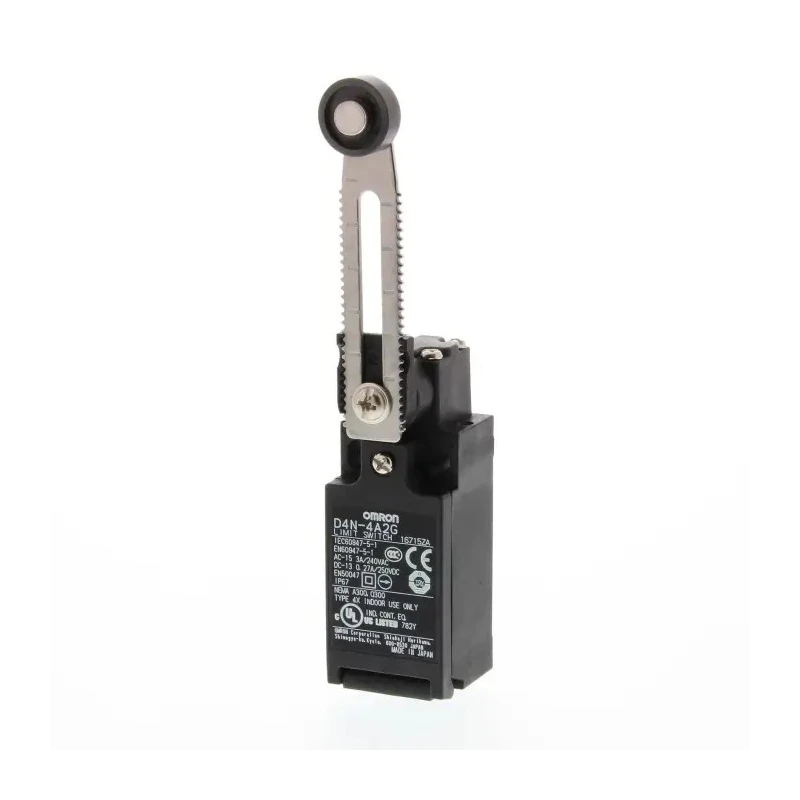

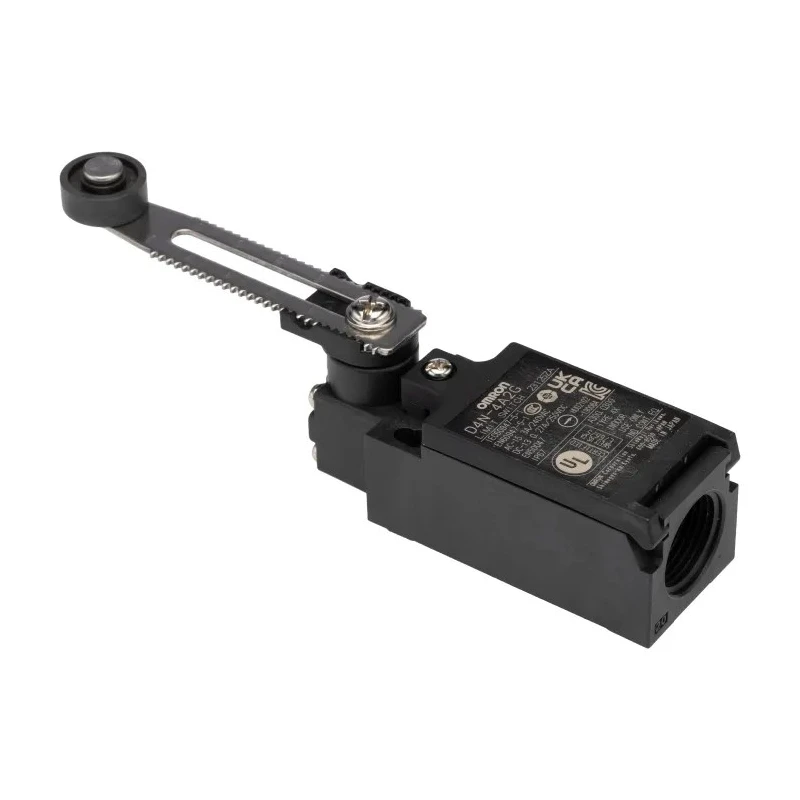

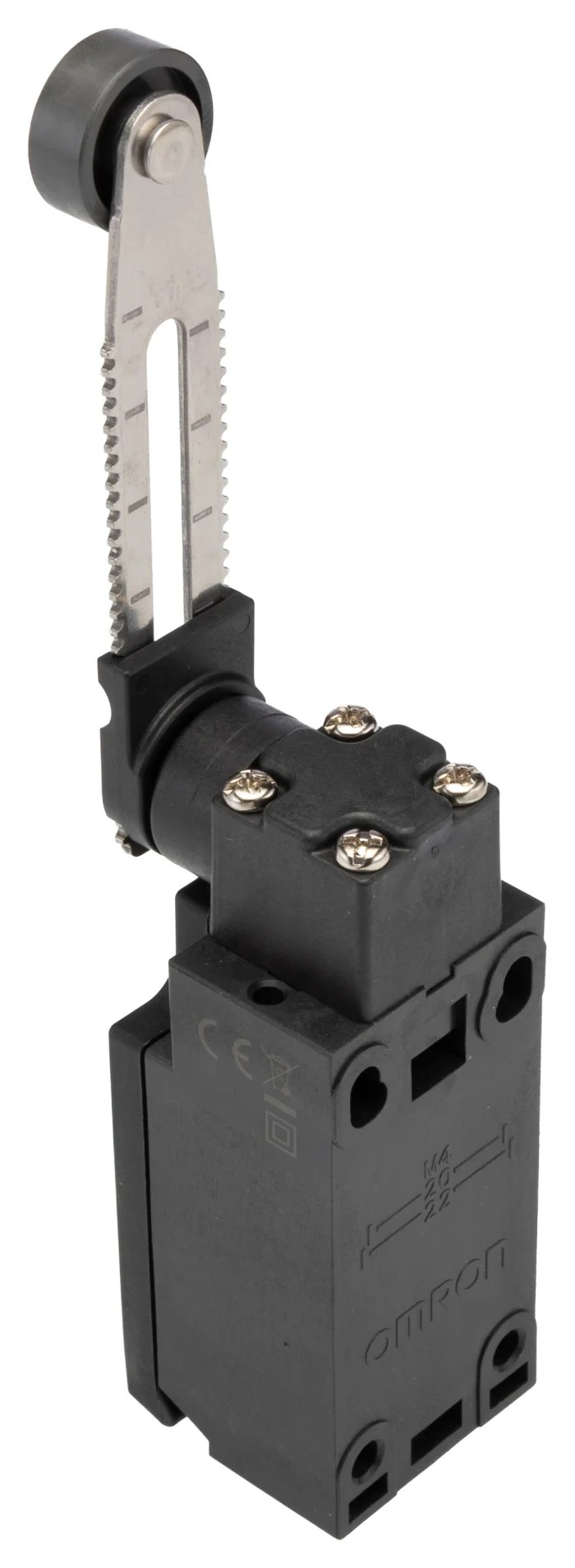

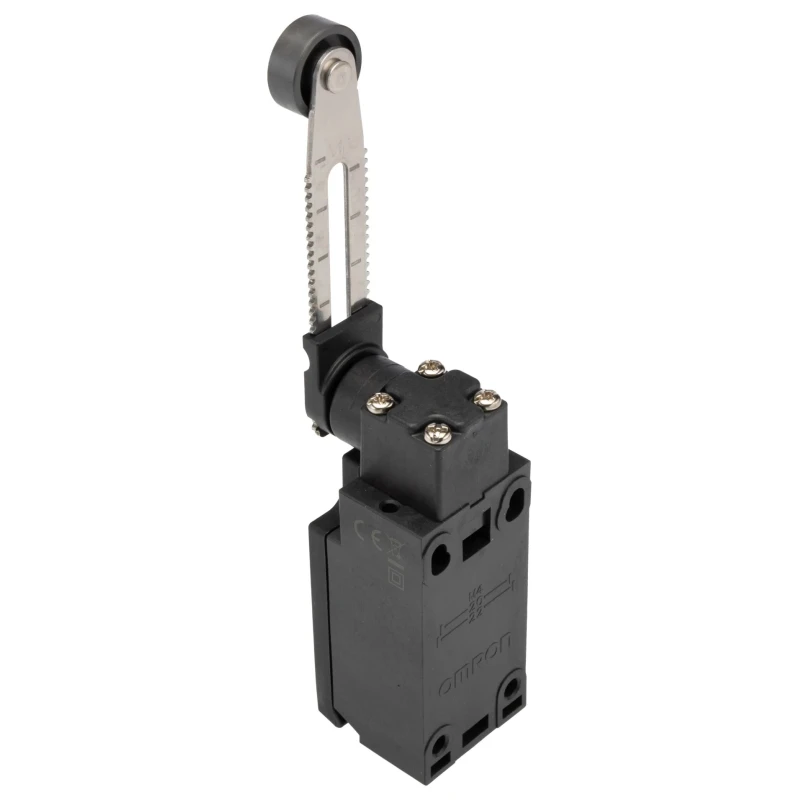

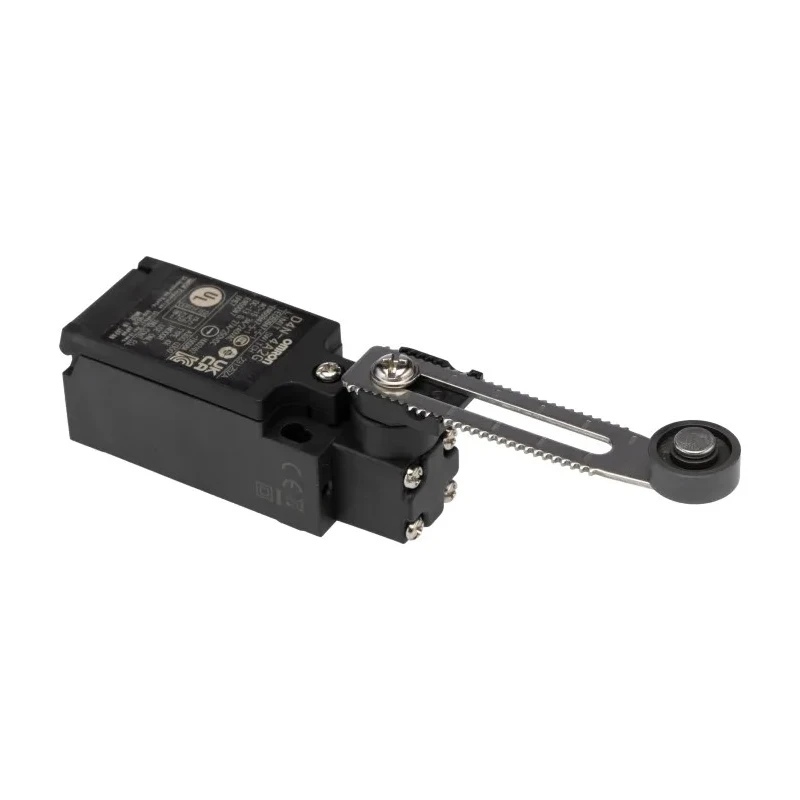

Omron Industrial Roller Lever Limit Switch 1 NO/1 NC, IP67, Metal and Resin Lever, 10A, 240V AC, Slow Action Contacts
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Length | 64mm |
| Model | IP67 |
| Depth | 45mm |
| IP Rating | IP67 |
| Width | 31mm |
| Housing Material | Metal Lever, Plastic, Resin (Lever), Sintered Stainless Steel, Stainless Steel (Lever) |
| Series | D4n |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Roller Lever |
| Contact Type | Slow Action |
| Minimum Operating Temperature | -30°C |
| Switching Current | 10A |
| Terminal type | M20 |
| Standards/Approvals | UL, TUV, RoHS, EN, CSA, CCC |
| Operating Force | 4.5N |
| Mechanical Life | 15000000Cycles |
| Switching DC Voltage | 250V |
| Switching AC Voltage | 240V |
| Conduit Entry | M20 |
Key Features
- Features 1 NO and 1 NC slow-action contacts for reliable switching.
- Constructed with metal lever, plastic and resin lever components, plus sintered stainless steel for durability.
- Supports switching currents up to 10A at 240V AC and 250V DC voltage ratings.
- IP67 rating ensures resistance to dust ingress and temporary water immersion.
- Operates across a wide temperature range from -30°C to 70°C.
- Mechanical life rated at 15 million cycles for extended service life.
- Includes adjustable roller lever actuator and M20 conduit entry for sealed wiring connections.
- Designed for industrial automation, conveyor system end detection, and panel interlocks in wet environments.
Product Description
Omron D4N-4A2G industrial roller lever limit switch is designed for precise position detection and control in automation and industrial applications. Featuring a robust metal and plastic resin housing with a sintered stainless steel lever, this device combines durability with reliable electrical performance.
The switch provides 1 normally open (NO) and 1 normally closed (NC) slow-action contact configuration capable of switching currents up to 10A at 240V AC and supports DC voltage switching up to 250V. It meets IP67 ingress protection standards, ensuring resistance to dust and ability to withstand temporary submersion in water.
With a mechanical life of up to 15 million cycles and an operating temperature range from -30°C to 70°C, the D4N-4A2G is suitable for demanding industrial environments. Its adjustable roller lever actuator allows precise actuation angle and length settings to accommodate specific application needs.
This limit switch is ideal for automation control tasks such as conveyor end-of-travel detection, machine-tool position monitoring, elevator system safety interlocks, and packaging line sensing. Installation is simplified by the M20 conduit entry, which aids sealed wiring connections to maintain the IP67 rating.
Features 1 NO/1 NC slow-action contacts with 10A switching current at 240V AC. IP67-rated housing for dust-tight and water immersion resistance. Metal lever and plastic resin lever construction with sintered stainless steel components.
Mechanical life of 15 million cycles ensures long-term reliability. Operating temperature range from -30°C to 70°C supports diverse environments. Adjustable roller lever actuator for flexible application use. M20 conduit entry maintains ingress protection for wiring.
Manufactured in Japan with certifications including UL, TUV, RoHS, EN, CSA, and CCC.
Suitable for industrial, manufacturing, and process automation applications requiring precise mechanical position sensing and control under harsh conditions. Explore the EnvMart catalog for additional Omron Limit Switches and control products tailored to your specific needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports switching currents up to 10A at 240V AC and 250V DC voltage ratings.
It has an IP67 rating, ensuring resistance to dust ingress and temporary water immersion.
The mechanical life is rated at 15 million cycles, providing extended service life.
It operates within a temperature range of -30°C to 70°C.
It features an adjustable roller lever actuator for precise actuation settings.
The dimensions are 64mm in length, 31mm in width, and 45mm in depth.
It has a contact configuration of 1 normally open (NO) and 1 normally closed (NC) slow-action contact.
It is constructed with a metal lever, plastic and resin lever components, and sintered stainless steel.
It features an M20 conduit entry for sealed wiring connections.
It is certified by UL, TUV, RoHS, EN, CSA, and CCC.
It is suitable for automation control tasks such as conveyor end-of-travel detection and machine-tool position monitoring.
