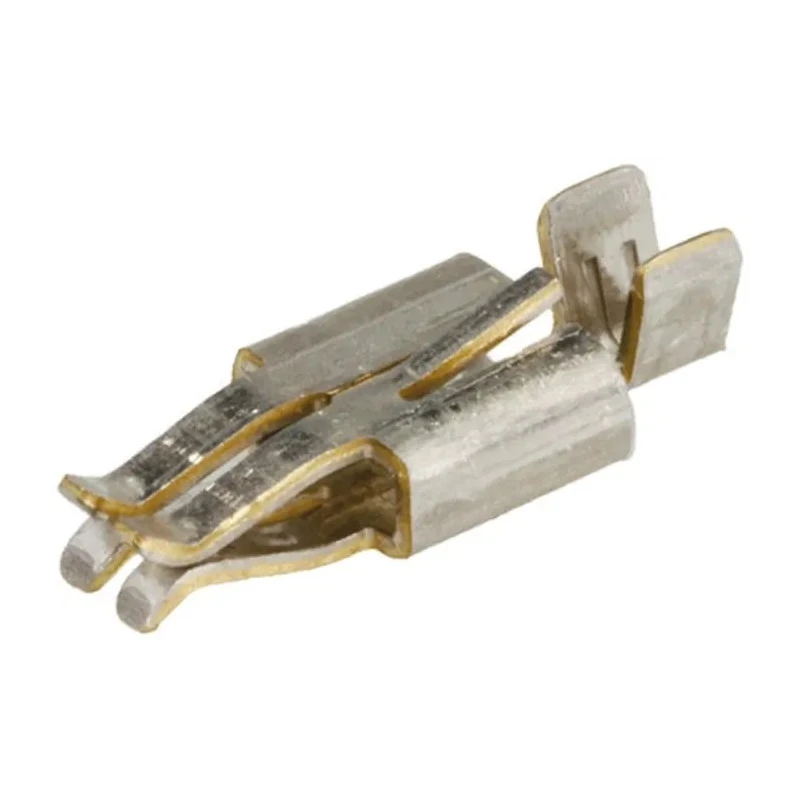

TE Connectivity Hermaphroditic Series Female Crimp Terminal, 5A Current, 22 AWG Min, 18 AWG Max, 11.9mm Length 2058302-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 5A |
| Length | 11.9mm |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | Hermaphroditic |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Hermaphroditic Blade and Receptacle Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
Key Features
- Constructed from copper alloy with tin plating for reliable conductivity and corrosion resistance.
- Crimp termination type designed for secure electrical and mechanical connection.
- Operates reliably within temperature range -40°C to 105°C.
- Compact length of 11.9mm suitable for SMT board-to-board applications.
- Compatible with Hermaphroditic Blade and Receptacle Connector Housing systems.
- Supports horizontal and vertical mating, including articulation from 90° to 180°.
- Rounded corners minimize shadowing, improving optical compatibility in LED applications.
- Redundant SMT pads and solder footprint compatible with Tyco Electronics SMT Poke-In LED connectors.
Product Description
TE Connectivity 2058302-1 female crimp terminal from the Hermaphroditic Series is engineered for secure and reliable electrical connections, supporting wire sizes from 22 AWG minimum to 18 AWG maximum with a 5 ampere current rating. It features a copper alloy contact construction with tin plating to ensure excellent conductivity and corrosion resistance. The crimp termination provides a firm mechanical and electrical join essential for industrial and electronic applications.
This crimp terminal measures 11.9mm in length and is designed for use with Hermaphroditic Blade and Receptacle Connector Housings, facilitating easy mating and unmating both horizontally and vertically. Its design supports articulation between 90° and 180°, providing flexibility in tight PCB layout constraints.
The terminal is suitable for Surface Mount Technology (SMT) processes and includes features such as low profile flat surfaces compatible with reflow soldering, rounded corners to reduce shadowing often critical in LED lighting systems, and redundant SMT pads for enhanced mechanical strength.
Typical industrial applications include LED lighting controls, LED strips, channel lettering, and other PCB connector solutions requiring high reliability and compact form factor. This Crimp Terminal complies with no specific approvals but meets industrial standards for robust operation over temperatures ranging from -40°C to 105°C.
Constructed from copper alloy with tin plating for durability and conductivity. Rated for continuous current of 5 amperes. Suitable for wire sizes from 22 AWG to 18 AWG. Length of 11.9mm optimizes PCB space usage. Compatible with Hermaphroditic Blade and Receptacle Connector Housings.
Supports versatile mating configurations including articulation. Designed for SMT and reflow soldering processes. Ideal for electronic and industrial LED lighting applications. Operates reliably between -40°C and 105°C ambient temperatures.
Explore more high-quality electronic connectors and crimp contacts in the Electronics & Electricals category on EnvMart designed for industrial, manufacturing, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal has a current rating of 5 amperes.
It supports wire sizes from 22 AWG minimum to 18 AWG maximum.
The terminal measures 11.9mm in length.
It operates reliably within a temperature range of -40°C to 105°C.
It features a crimp termination type for secure electrical and mechanical connections.
It is compatible with Hermaphroditic Blade and Receptacle Connector Housing systems.
The terminal is constructed from copper alloy with tin plating for reliable conductivity and corrosion resistance.
Typical applications include LED lighting controls, LED strips, and other PCB connector solutions.
Yes, it is designed for Surface Mount Technology (SMT) processes and includes features compatible with reflow soldering.
It supports horizontal and vertical mating, including articulation from 90° to 180°.
The country of origin for this crimp terminal is India.
The rounded corners minimize shadowing, which improves optical compatibility in LED applications.
