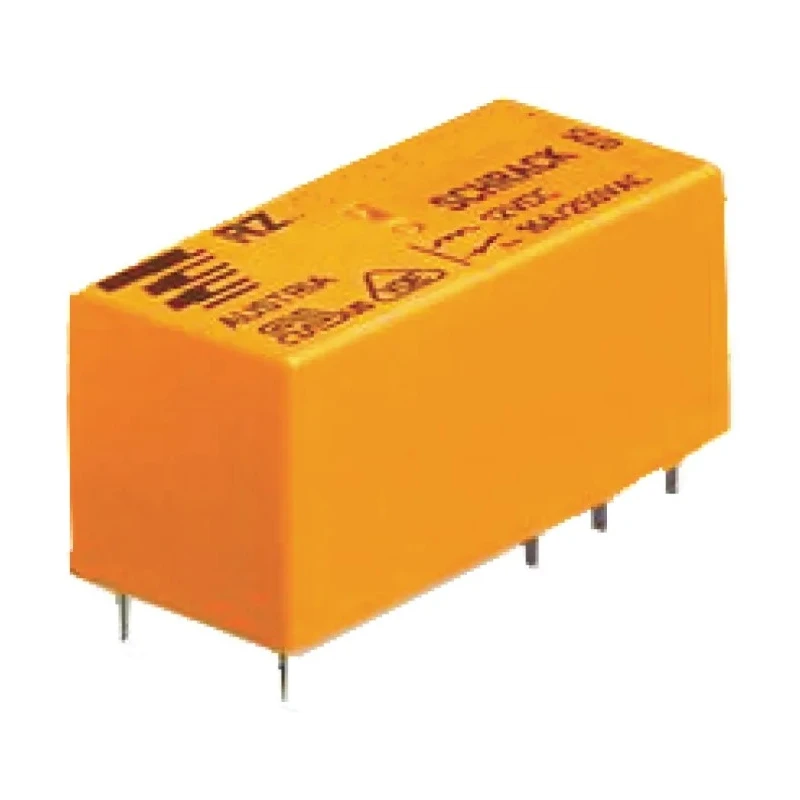

TE Connectivity RZ Series PCB Power Relay, 12V DC Coil, 12A Switching Current, SPDT Contact, Silver Alloy 1-1415899-0
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Dimensions | 29.00 x 12.70 x 15.70 mm |
| Height | 15.7mm |
| Length | 29mm |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RZ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Standards/Approvals | VDE, UL, RoHS, REACH, IEC, CQC |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Designed for PCB mounting in various automation and electrical applications.
- Equipped with silver alloy contacts for durable conductivity.
- Low coil power consumption of 400mW enhances energy efficiency.
- Compact size with dimensions 29 x 12.7 x 15.7 mm for space-saving installation.
- Operates reliably in temperatures from -40°C to 85°C.
- Supports switching AC voltage up to 400V AC.
- Complies with multiple standards including VDE, UL, RoHS, REACH, IEC, and CQC.
- Flux tight design with reinforced insulation for safety and durability.
Product Description
TE Connectivity 1-1415899-0 PCB Power Relay is a highly reliable component designed for integration in electrical, industrial automation, and control systems. Featuring a 12V DC coil and a maximum switching current of 12A, this SPDT relay offers efficient and safe switching capabilities. Its silver alloy contacts ensure excellent conductivity and long service life while maintaining minimal contact resistance.
Built within the RZ series, this power relay supports PCB mounting with solder terminals. It has a coil power consumption of only 400mW, improving overall system efficiency. The relay dimensions are 29.00 mm length, 12.70 mm width, and 15.70 mm height, making it compact enough for densely-packed electronic assemblies.
The relay functions reliably within a wide temperature range from -40°C up to 85°C, suitable for harsh industrial environments. Its switching AC voltage rating reaches up to 400V AC, with coil resistance at 360Ω providing stable operating conditions. The device incorporates a flux tight design with reinforced insulation of 5kV / 10mm, meeting appliance industry requirements per IEC60335-1 for enhanced safety.
Approved by recognized standards authorities including VDE, UL, RoHS, REACH, IEC, and CQC, this power relay is suited for demanding electrical and electronic applications such as industrial automation, control panels, HVAC equipment, manufacturing systems, and water treatment controls.
Designed for PCB mounting with solder terminal type. Features SPDT contact configuration with 12A switching current. Operates with a 12V DC coil with 400mW power consumption. Compact dimensions of 29 x 12.7 x 15.7 mm enable versatile integration.
Wide operating temperature range from -40°C to 85°C. Reinforced insulation and flux tight design enhance operational safety. Silver alloy contacts provide excellent conductivity and durability. Meets appliance industry and international safety and quality standards.
This TE Connectivity PCB Power Relay 1-1415899-0 provides a dependable solution for power switching requirements in electronic assembly and industrial equipment. For further selection and high-quality industrial components, browse our full range in the Power Relay category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current of this relay is 12A.
This model operates with a coil voltage of 12V DC.
The dimensions are 29.00 mm in length, 12.70 mm in width, and 15.70 mm in height.
The coil power consumption is 400mW, which enhances energy efficiency.
It operates reliably in temperatures ranging from -40°C to 85°C.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The relay supports switching AC voltage up to 400V AC.
This relay is designed for PCB mounting with solder terminals.
The contacts are made of silver alloy, providing excellent conductivity.
It complies with multiple standards including VDE, UL, RoHS, REACH, IEC, and CQC.
The coil resistance is 360Ω, ensuring stable operating conditions.
This relay belongs to the RZ series by TE Connectivity.
