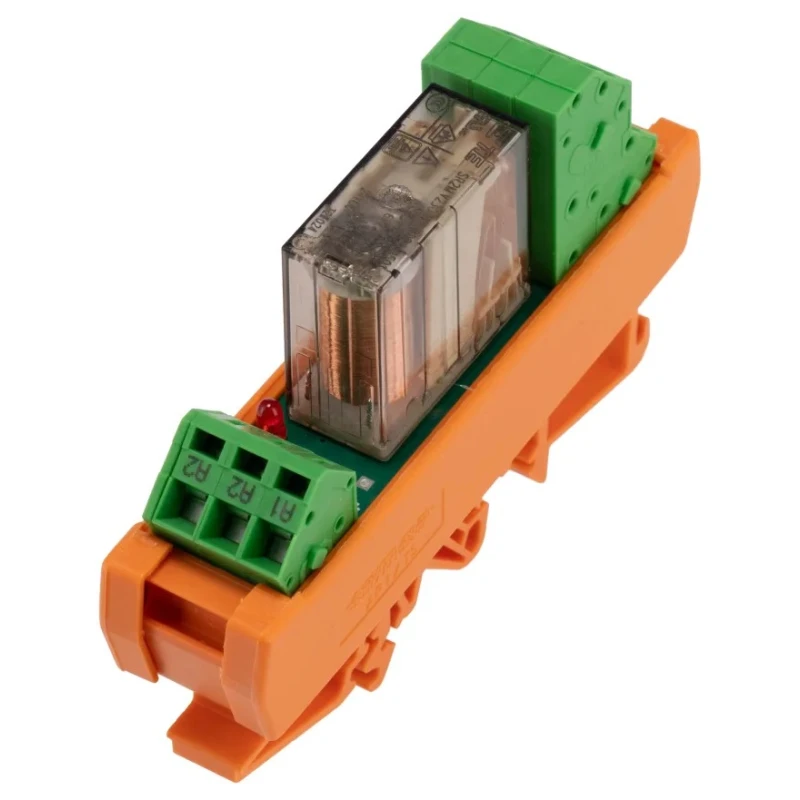

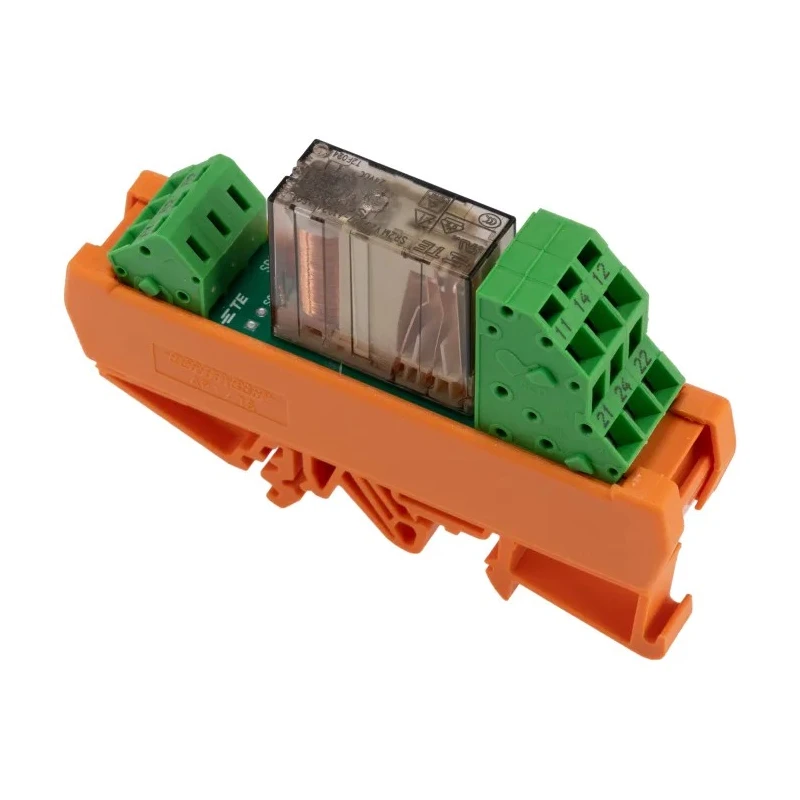

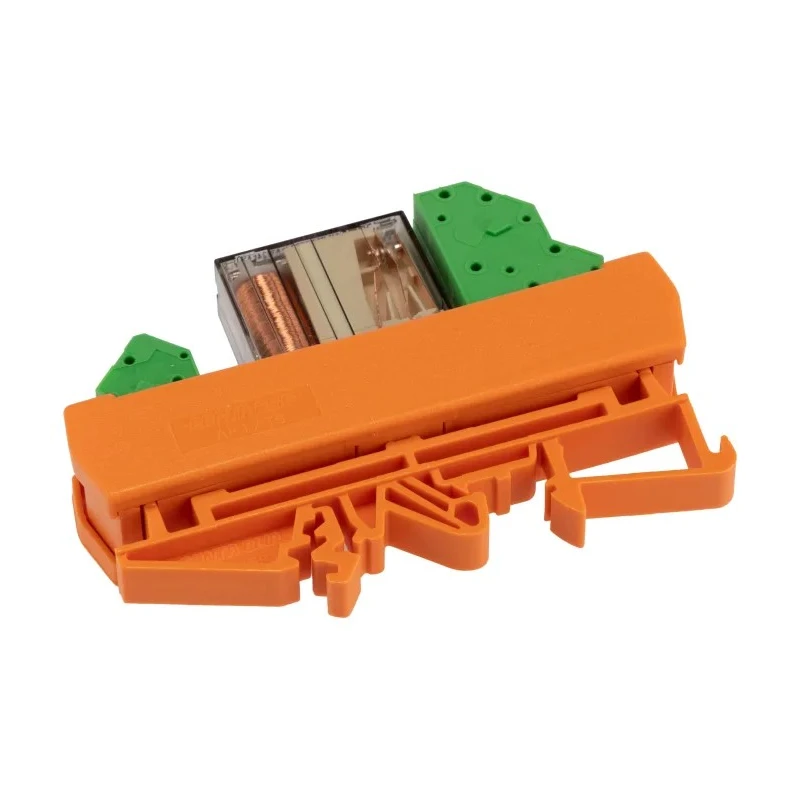

TE Connectivity DIN Rail Force Guided Relay 24V dc Coil Voltage 2-Pole DPDT SR2ZY024
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 87mm |
| Length | 64mm |
| Model | SR2ZY024 |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | SR2 Z |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 6A |
| Terminal type | Cage Clamp |
| Number of Poles | 2 |
| Coil Resistance | 823Ω |
| Coil Voltage | 24V dc |
| Coil Power | 700mW |
| Isolation Coil To Contact | 4kVrms |
| Relay SR2M | VDE, UL, TUV, CQC |
| Module SR2Z | CE |
Key Features
- Force guided relay with DIN rail mounting for easy installation.
- Operates at 24V DC coil voltage with coil resistance of 823 ohms.
- Switching current rated at 6A suitable for various control applications.
- Contact configuration is Double Pole Double Throw (DPDT) with silver alloy contacts.
- Coil power consumption is low at 700mW for efficient operation.
- Designed for temperatures from -25°C to 50°C ensuring durability.
- Terminal type is cage clamp for secure and reliable wiring.
- Compact size with length 64mm and height 87mm for space-saving installations.
Product Description
TE Connectivity SR2ZY024 is a high-quality DIN rail mounted force guided relay designed for critical safety and industrial control applications. It features a coil voltage of 24V DC, ensuring compatibility with common industrial control systems. The 2-pole, DPDT contact configuration with silver alloy contacts offers reliable switching performance and extended durability.
This relay is part of the SR2 Z series, known for its robust build and safety features. It supports a switching current of 6A and operates with a coil power of just 700mW, reducing energy consumption. The coil resistance is 823 ohms, optimized for stable operation.
The relay is suitable for harsh environments with an operating temperature range from -25°C to 50°C. It includes a cage clamp terminal type for easy and secure wiring and provides 4kVrms coil-to-contact isolation, enhancing device and operator safety.
Typical applications include contact monitoring in railway control systems, elevator safety operations, and general machine control where force guided relays ensure safe mechanical interlocking of contacts. Certifications such as VDE, UL, TUV, CQC, and CE confirm that the relay meets stringent safety standards.
Force Guided Relay with DIN rail mounting for easy installation. Operates at 24V DC coil voltage with coil resistance of 823 ohms. Switching current rated at 6A suitable for various control applications. Contact configuration is Double Pole Double Throw (DPDT) with silver alloy contacts.
Coil power consumption is low at 700mW for efficient operation. Designed for temperatures from -25°C to 50°C ensuring durability. Terminal type is cage clamp for secure and reliable wiring. Compact size with length 64mm and height 87mm for space-saving installations.
Provides 4kVrms isolation between coil and contacts for safety. Complies with approvals: VDE, UL, TUV, CQC, and CE certifications. Explore more industrial-grade relays and contactors in the Electronics & Electricals category at EnvMart for robust automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 24V DC.
It features a Double Pole Double Throw (DPDT) contact configuration.
The maximum switching current is rated at 6A.
The coil power consumption is low at 700mW, making it efficient for operation.
The relay has a length of 64mm and a height of 87mm.
It utilizes cage clamp terminals for secure and reliable wiring.
The relay is designed to operate within a temperature range of -25°C to 50°C.
It provides 4kVrms isolation between the coil and contacts for enhanced safety.
The contacts are made from silver alloy, which offers reliable performance.
The relay complies with VDE, UL, TUV, CQC, and CE certifications, ensuring it meets safety standards.
This model is designed for DIN rail mounting, facilitating easy installation.
Typical applications include contact monitoring in railway control systems, elevator safety operations, and general machine control.
