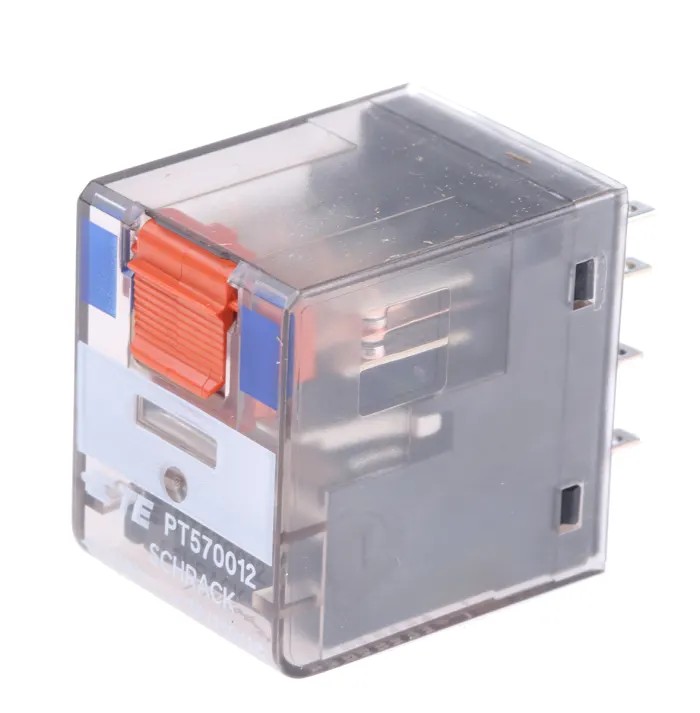

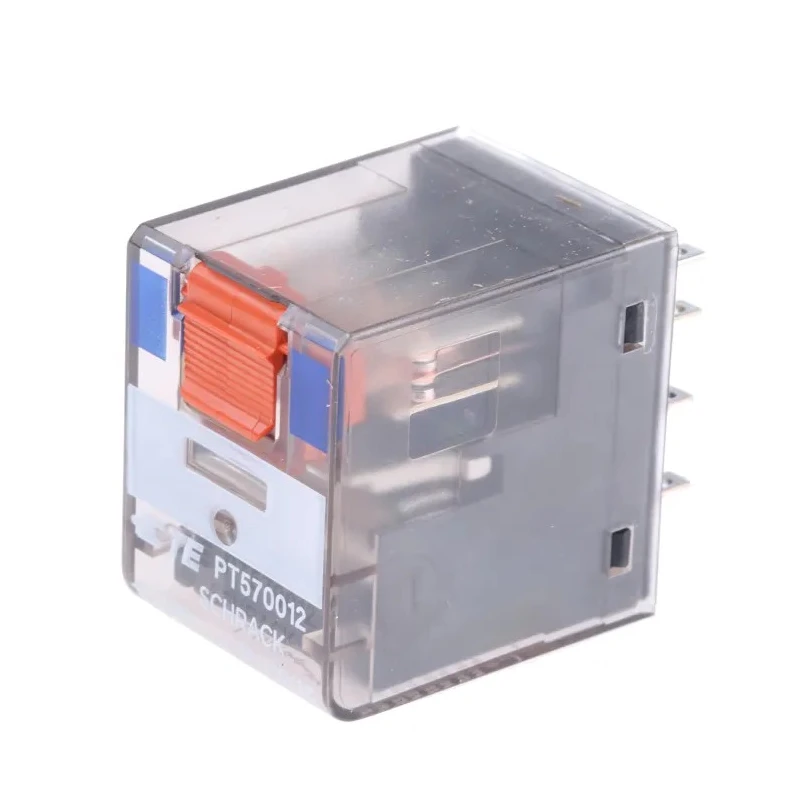

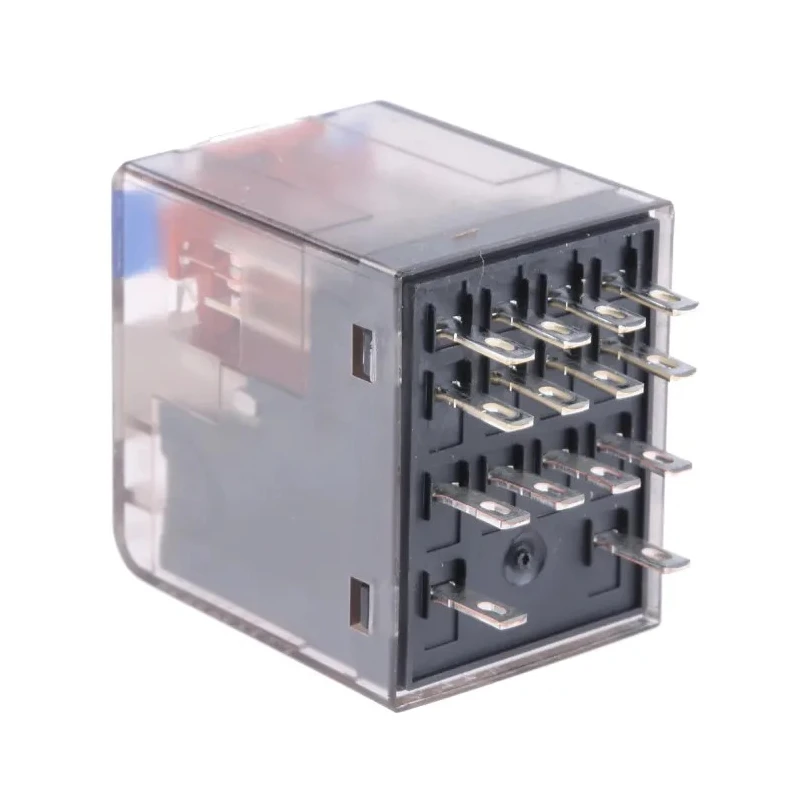

TE Connectivity PCB Power Relay 12V DC Coil 6A Switching Current 4PDT PT570012 8-1419111-0
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 35mm |
| Length | 28mm |
| Model | PT570012 8-1419111-0 |
| Width | 22.5mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Quick Connect |
| Standards/Approvals | VDE, UL, RoHS, IEC |
| Coil Resistance | 192Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 240V ac |
| Finder Relay, 12V dc Coil, 7A Switching Current, 4PDTBrand | Finder |
| Isolation Coil To Contact | 2.5kV(ac) |
| Finder 58 Series Interface Relay, DIN Rail, 12V dc Coil, 4PDT, 86mABrand | Finder |
Key Features
- Operates with a 12V DC coil voltage ensuring compatibility with common power supplies.
- Features a 4PDT contact configuration suitable for complex switching applications.
- Switching current rated at 6A for moderate power loads.

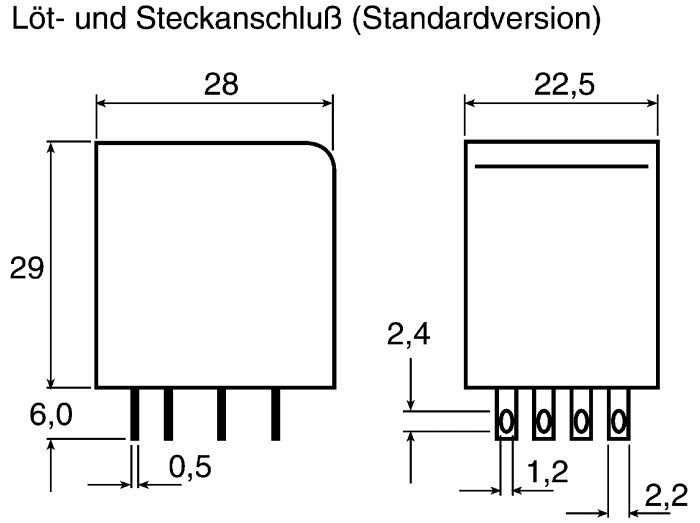

- Compact dimensions of 22.5mm width, 28mm length, and 35mm height for PCB mounting.
- Constructed with durable silver nickel alloy contacts for long-lasting performance.
- Designed for operating temperatures ranging from -40°C to 70°C ensuring versatile use cases.
- Quick connect terminal type enables fast and secure wiring installation.
- Isolated coil to contact rating of 2.5kV AC for electrical safety and reliability.
Product Description
TE Connectivity PT570012 8-1419111-0 PCB Power Relay is engineered for precise electrical control with a 12V DC coil and a 6A switching current capacity. Its 4PDT (Four-Pole Double-Throw) contact configuration allows for multiple circuit switching, making it suitable for various industrial and automation applications.
This relay is designed for PCB mounting, featuring compact dimensions of 22.5mm width, 28mm length, and 35mm height. The contact material is silver nickel alloy, ensuring durability and reliable conductivity over prolonged use. The relay supports operating temperatures from -40°C up to 70°C, making it suitable for harsh environments.
Equipped with quick connect terminals, assembly and wiring are efficient and secure. The coil to contact isolation voltage of 2.5kV AC provides safety against electrical interference. Compliant with international standards such as VDE, UL, RoHS, and IEC, this relay meets rigorous quality and safety benchmarks.
Its mechanical life expectancy reaches up to 20 million operations AC and 30 million DC, ensuring long-term dependable performance. Primarily used in industrial automation, control panels, and signal switching, it supports demanding electrical applications requiring reliable switching.
Country of origin is Austria, reflecting the product's premium manufacturing quality. This product’s package typically contains one PCB power relay unit ready for integration into control circuits and industrial automation systems.
Operates with a 12V DC coil voltage ensuring compatibility with common power supplies. Features a 4PDT contact configuration suitable for complex switching applications. Switching current rated at 6A for moderate power loads.
Compact dimensions of 22.5mm width, 28mm length, and 35mm height for PCB mounting. Constructed with durable silver nickel alloy contacts for long-lasting performance. Designed for operating temperatures ranging from -40°C to 70°C ensuring versatile use cases.
Quick connect terminal type enables fast and secure wiring installation. Isolated coil to contact rating of 2.5kV AC for electrical safety and reliability. Complies with major standards including VDE, UL, RoHS, and IEC for quality assurance.
Explore more Power Relays and control components at EnvMart to meet your industrial automation and electrical system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a 12V DC coil voltage, ensuring compatibility with common power supplies.
It has a switching current rated at 6A, suitable for moderate power loads.
This model features a 4PDT (Four-Pole Double-Throw) contact configuration, allowing for multiple circuit switching.
The relay has compact dimensions of 22.5mm in width, 28mm in length, and 35mm in height, designed for PCB mounting.
The isolation coil to contact rating is 2.5kV AC, providing safety against electrical interference.
The contacts are constructed from silver nickel alloy, ensuring reliable conductivity over prolonged use.
It is designed for operating temperatures ranging from -40°C to 70°C, making it suitable for various environments.
This relay is equipped with quick connect terminals, enabling fast and secure wiring installation.
It complies with international standards including VDE, UL, RoHS, and IEC, ensuring quality and safety benchmarks.
The mechanical life expectancy reaches up to 20 million operations AC and 30 million DC, ensuring long-term performance.
It is primarily used in industrial automation, control panels, and signal switching, supporting demanding electrical applications.
The country of origin for this relay is Austria, reflecting its manufacturing quality.
