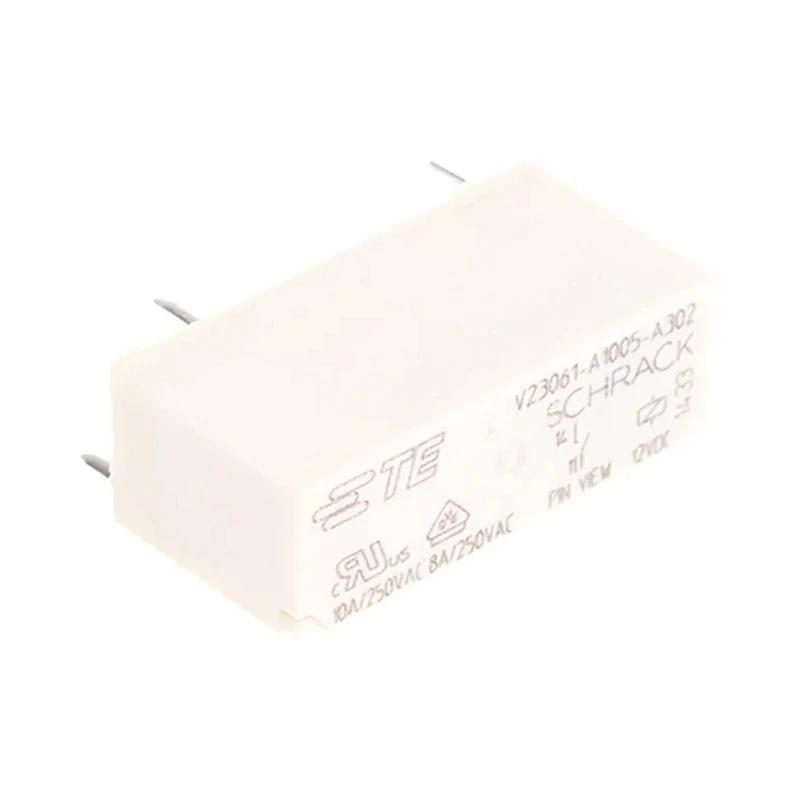

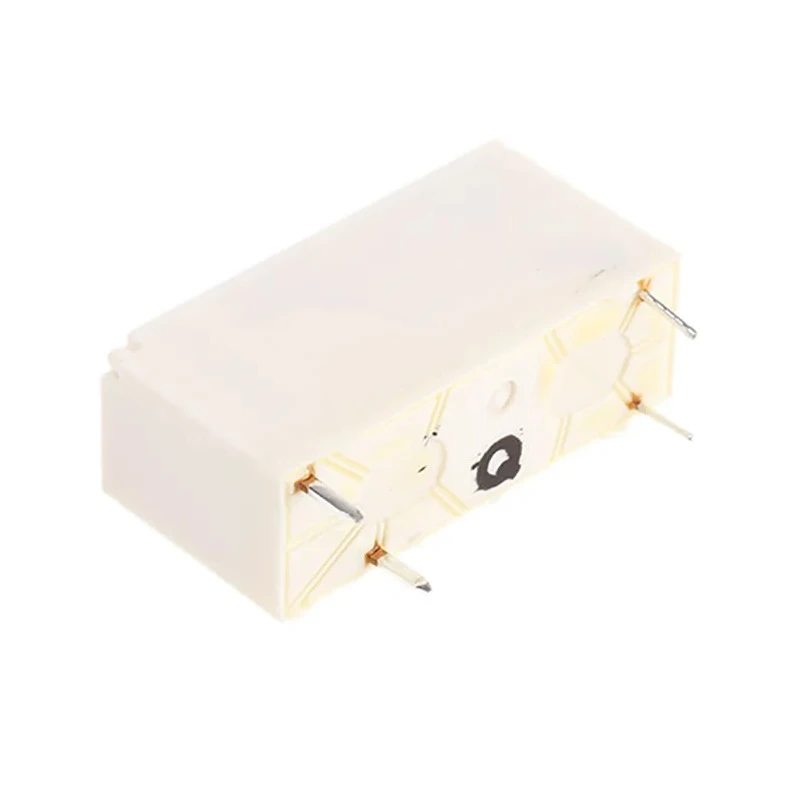

TE Connectivity PCB Power Relay 12V DC Coil 8A Switching Current SPST V23061A1005A302
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 28.6mm |
| Model | V23061A1005A302 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | MSR |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 652Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 221mW |
| Certified | VDE, UL, CSA, SEV, SEMKO, SETI |
Key Features
- Rated switching current of 8 amperes ensures robust performance.
- Single Pole Single Throw (SPST) contact provides simple on/off control.
- PCB mounting type facilitates easy integration into printed circuit boards.
- Coil resistance of 652 ohms and coil power consumption of 221 milliwatts optimize energy usage.
- Operating temperature range from -40°C to 85°C suits harsh industrial environments.
- Construction includes silver alloy contact material for durability and low resistance.
- Certified to RoHS standards and complies with VDE, UL, CSA, SEV, SEMKO, SETI certifications.
Product Description
TE Connectivity V23061A1005A302 PCB Power Relay is engineered for industrial and electronic applications requiring reliable and efficient switching. This relay features a 12V DC coil voltage with an 8A switching current capacity, configured as Single Pole Single Throw (SPST) contact type. Its PCB mount design ensures easy installation on printed circuit boards.
The relay's coil resistance of 652 ohms and coil power of 221 milliwatts contribute to low power consumption and enhanced operational efficiency. It supports a wide operating temperature range from -40°C to 85°C, making it suitable for demanding environments in industrial automation, control systems, and power management.
Constructed with silver alloy contacts, this relay offers durable performance with minimal contact resistance and supports a switching AC voltage up to 400V. Certified to RoHS standards and renowned safety approvals including VDE, UL, CSA, SEV, SEMKO, and SETI ensure compliance for global applications.

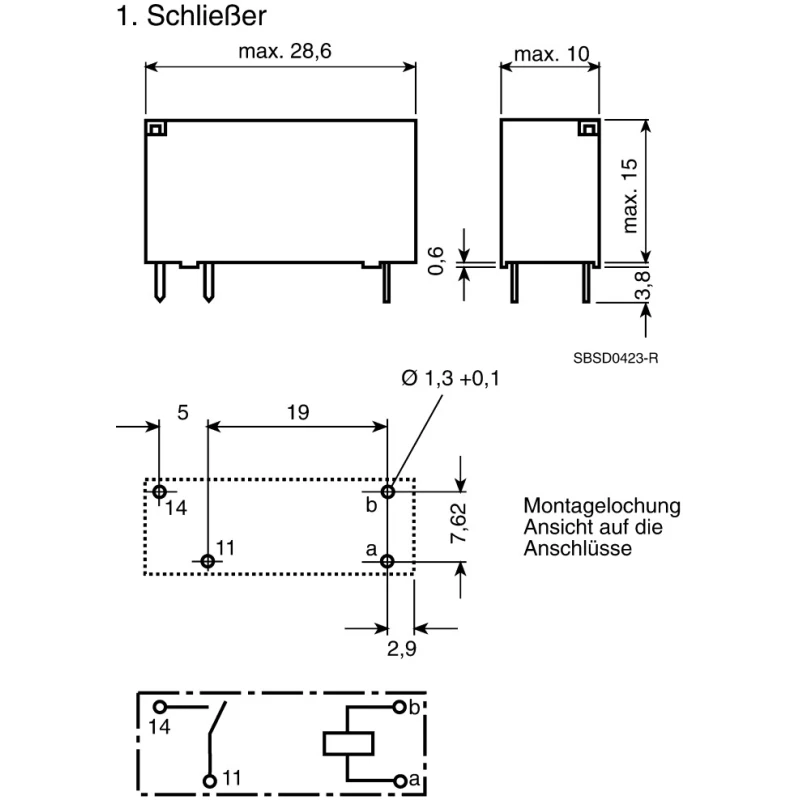

The compact form factor with dimensions 28.6mm length, 10mm width, and 15mm height optimizes board space. Terminal type is solder, ensuring secure electrical connections for reliable long-term use in electronic assemblies.
Rated switching current of 8 amperes for robust electrical loads. Single Pole Single Throw (SPST) configuration for straightforward circuit control. PCB mounting type compatible with automated assembly lines. Low coil power of 221 milliwatts conserving energy in continuous operation.
Wide temperature range suitable for industrial, automation, and electrical equipment. Silver alloy contacts enhance durability and conductivity. Certified to multiple international safety and environmental standards for assurance.
Compact size facilitates integration into dense electronic systems.
This power relay is ideal for use cases including industrial automation, control panels, power supplies, HVAC systems, and various electrical switching applications. Its reliability and certifications make it suitable for professional engineering and manufacturing environments. Explore more Power Relays and electronic components at EnvMart to support your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a rated switching current capacity of 8 amperes, making it suitable for robust electrical loads.
This model operates with a coil voltage of 12V DC.
It features a Single Pole Single Throw (SPST) contact configuration, allowing for simple on/off control.
The coil resistance is 652 ohms, contributing to its low power consumption.
The coil power consumption is 221 milliwatts, optimizing energy usage during operation.
It can operate within a temperature range of -40°C to 85°C, making it suitable for harsh industrial environments.
The relay has dimensions of 28.6mm in length, 10mm in width, and 15mm in height.
The contacts are made of silver alloy, which enhances durability and conductivity.
It is certified to RoHS standards and complies with VDE, UL, CSA, SEV, SEMKO, and SETI certifications.
This relay is designed for PCB mounting, facilitating easy integration into printed circuit boards.
The relay supports a maximum switching AC voltage of 400V.
It features solder terminals, ensuring secure electrical connections for reliable long-term use.
