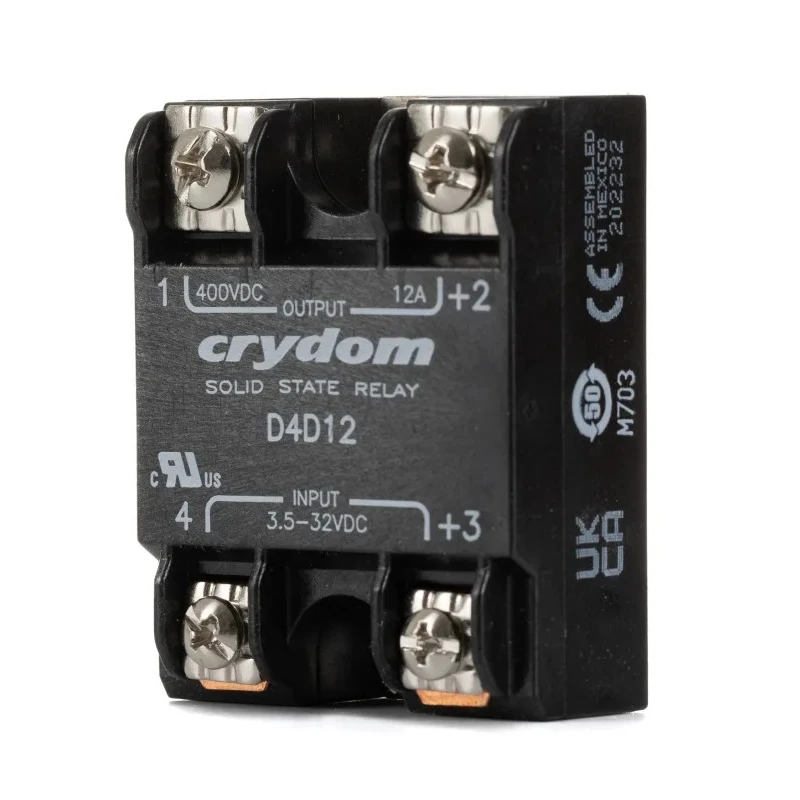

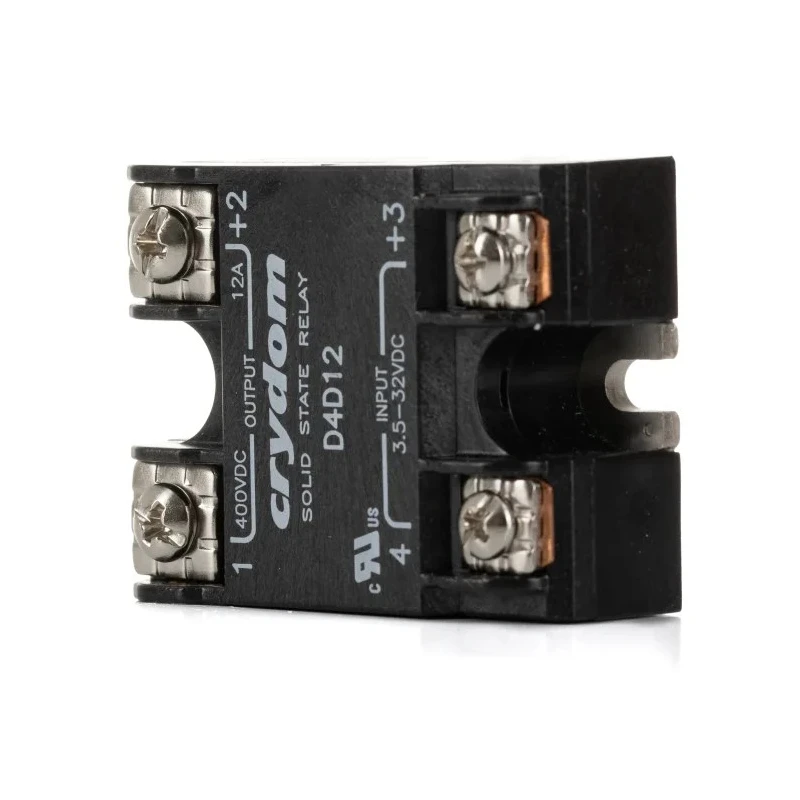

Crydom 1-DCL Series Solid State Relay Panel Mount, 12 A Load Current, 400 V Load Voltage, 32 V Control Voltage D4D12

Crydom D4D12 is a 1-DCL Series Solid State Relay designed for panel mount applications, delivering 12 A load current and operating at a maximum load voltage of 400 V and control voltage up to 32 V. It efficiently converts electrical signals to optical signals enabling contactless switching, thereby reducing wear and tear and enhancing reliability in industrial use.

Featuring zero cross switching technology, it minimizes electrical noise during switching operations, contributing to stable performance in control systems. The relay boasts an operational temperature range of -20°C to 80°C, making it suitable for demanding industrial environments such as automation, manufacturing, and process control.

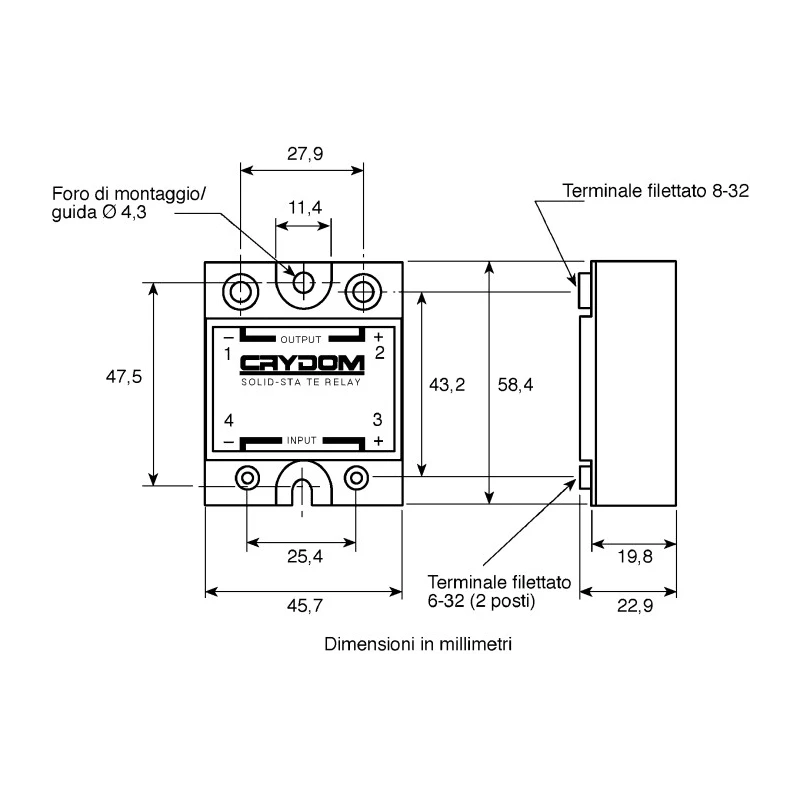

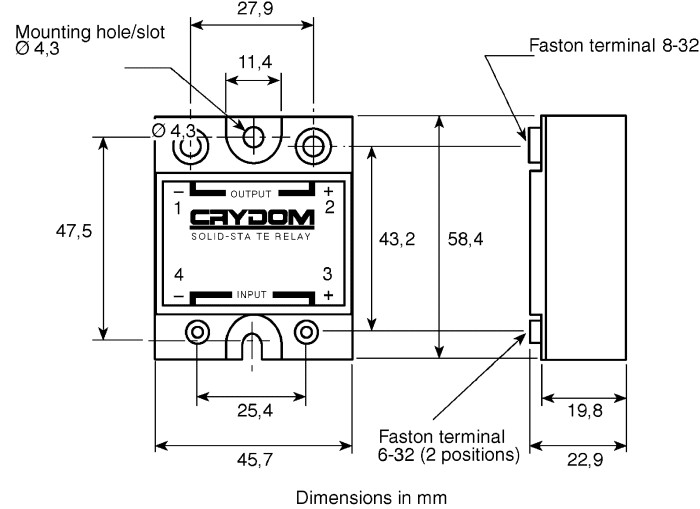

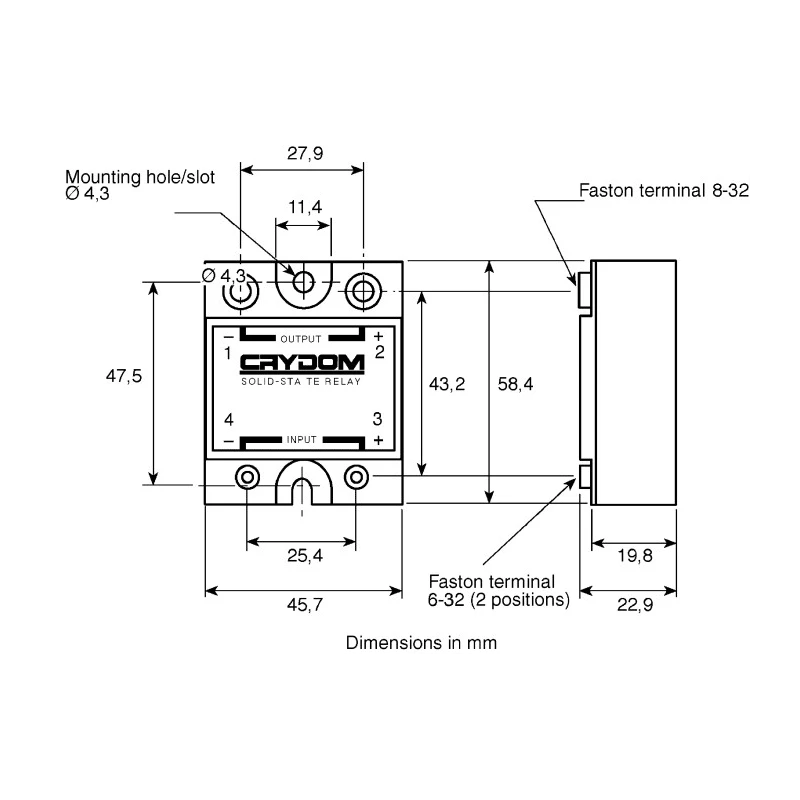

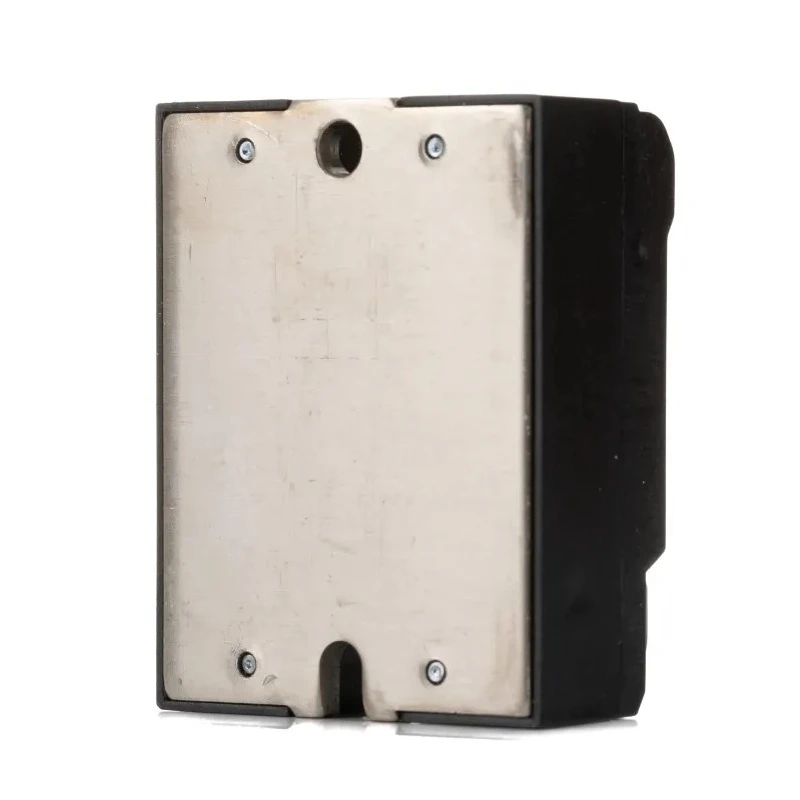

The compact physical dimensions (45.7 mm length, 22.6 mm width, and 23 mm height) facilitate integration into control panels with limited space. Its durable aluminium base plate resists mechanical impacts and corrosion, while the housing is self-extinguishing to ensure safety in case of fire incidents.

This solid state relay employs screw-type terminal connections and includes anti-rotation barriers in the housing for vibration-proof installation. Its output type is SCR, providing robust switching capabilities with a very low off-state leakage current of 0.3mArms and a capacitance of 8 pF, ensuring efficient electrical performance.

The product holds important international approvals including CSA, RoHS, and UR certifications, validating its quality and compliance with safety standards. Industrial applications include automation control, HVAC systems, manufacturing equipment, and other environments requiring reliable and silent switching solutions.

Panel mounting screw terminals ensure secure and vibration resistant installation. Durable aluminum base plate protects against mechanical damage and corrosion. Zero cross switching minimizes electrical noise and prolongs system life.

Compact size designed for easy integration within control panels. Wide temperature range suits diverse industrial applications. Self-extinguishing housing enhances operational safety. Certified to CSA, RoHS, and UR standards for reliable industrial use.

This Crydom 1-DCL Series Solid State Relay D4D12 is a premium choice for industrial automation requiring fast and durable switching under various load conditions. Explore more precision electronic components and relays in the Electronics & Electricals category at EnvMart.
