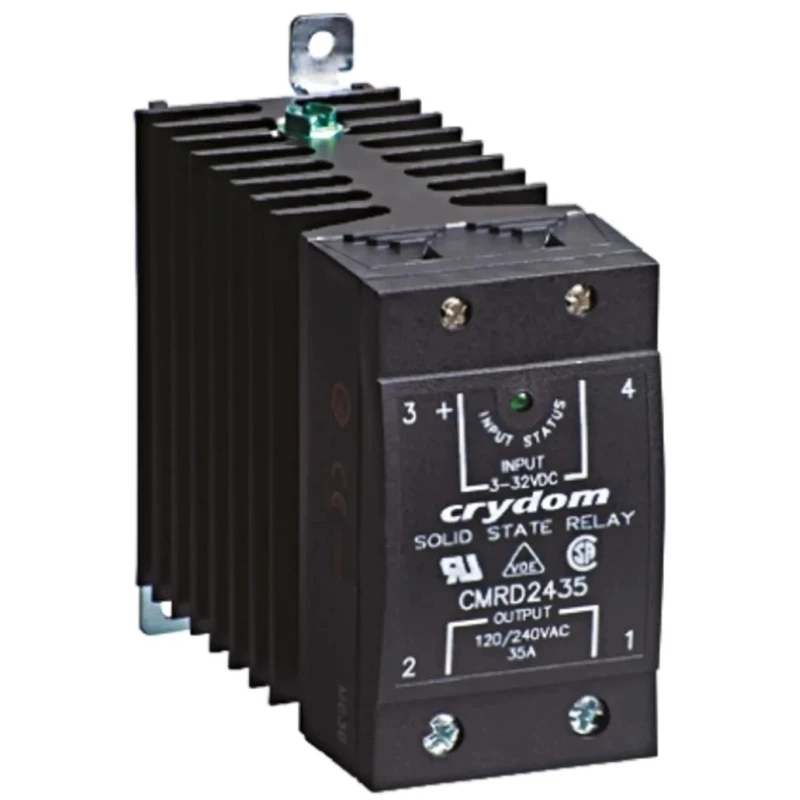

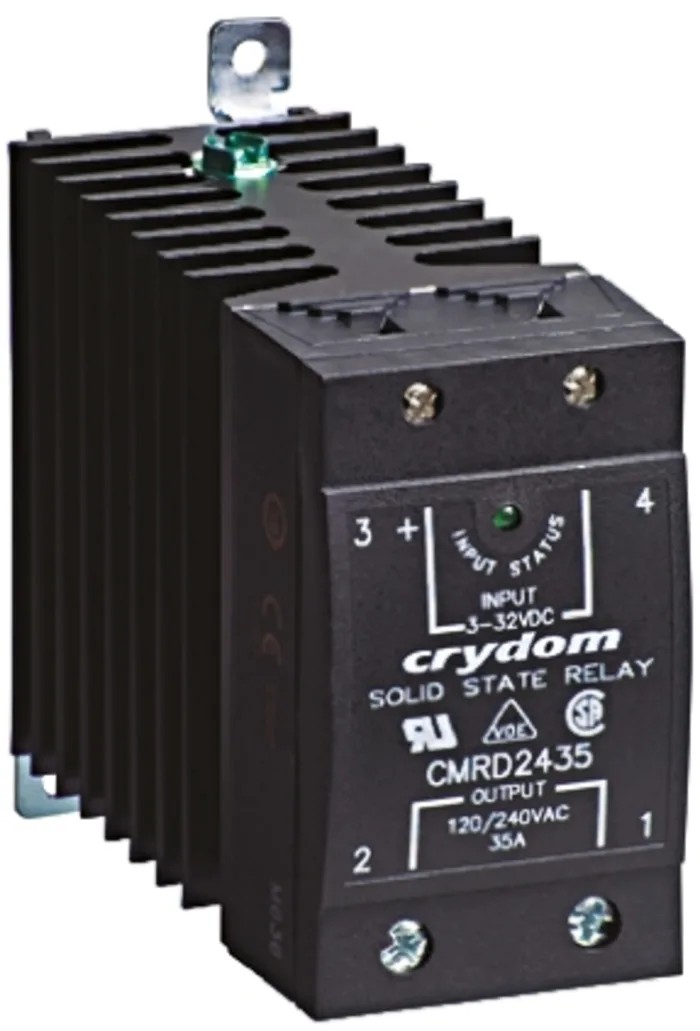

Crydom Solid State Relay, 45 A Load Current, 280 V Load Voltage, DIN Rail Mount, 32V Control CMRD2445

The Crydom CMRD2445 Solid State Relay is engineered to provide reliable and efficient switching of AC loads up to 45 amperes with a maximum load voltage rating of 280 volts. It is designed for easy DIN rail mounting, making it suitable for a wide range of industrial and electrical control panel applications where compact and safe installations are required.

This relay features a SPST-NO (Single Pole Single Throw - Normally Open) contact configuration with zero cross switching, minimizing electrical noise and extending the life of connected devices. The control circuit operates within 3V DC minimum to 32V maximum, ensuring compatibility with standard industrial control signals.

The integral heatsink combined with a fingerproof safety cover ensures safe operation and thermal management during high load switching. Additionally, the device includes a LED status indicator for simple and rapid operational checks, reducing maintenance time.

With a durable design capable of operating between -40°C to 80°C, the CMRD2445 relay is suited for use in varied industrial environments. Its low off-state leakage current of 10 mArms and capacitance of 8pF contribute to energy efficiency and signal integrity. The screw terminal type facilitates secure and reliable wiring.

The relay dimensions (Height: 109.2 mm x Width: 44.5 mm x Depth: 76.2 mm) make it compact enough for modern gear assemblies and electrical enclosures. The product complies with RoHS standards, demonstrating commitment to environmental protection.

Capable of switching load currents up to 45 amperes for high-power applications. Designed for DIN rail installation facilitating easy mounting and wiring. Supports load voltages up to 280 volts suitable for AC load control.

Control voltage range from 3V dc minimum to 32V maximum ensures compatibility with various control circuits. SPST contact configuration with zero cross switching for reduced electrical noise and wear. Integral heatsink and fingerproof safety cover provide enhanced operational safety.

Compact dimensions of 109 mm length, 44.5 mm width, and 76.2 mm height optimize panel space usage. Operating temperature range from -40°C to 80°C allows reliable performance in diverse environments. Low off-state leakage current of 10 mArms reduces power loss during open circuit conditions.

LED status indicator aids quick operational diagnostics and troubleshooting. RoHS compliant ensuring adherence to environmental regulations.

This relay is widely used in industrial, electrical automation, manufacturing, HVAC control systems, and other commercial applications requiring precise and safe switching of AC loads. It represents a robust component for control panels and automated systems requiring reliability and compliance with environmental standards.
