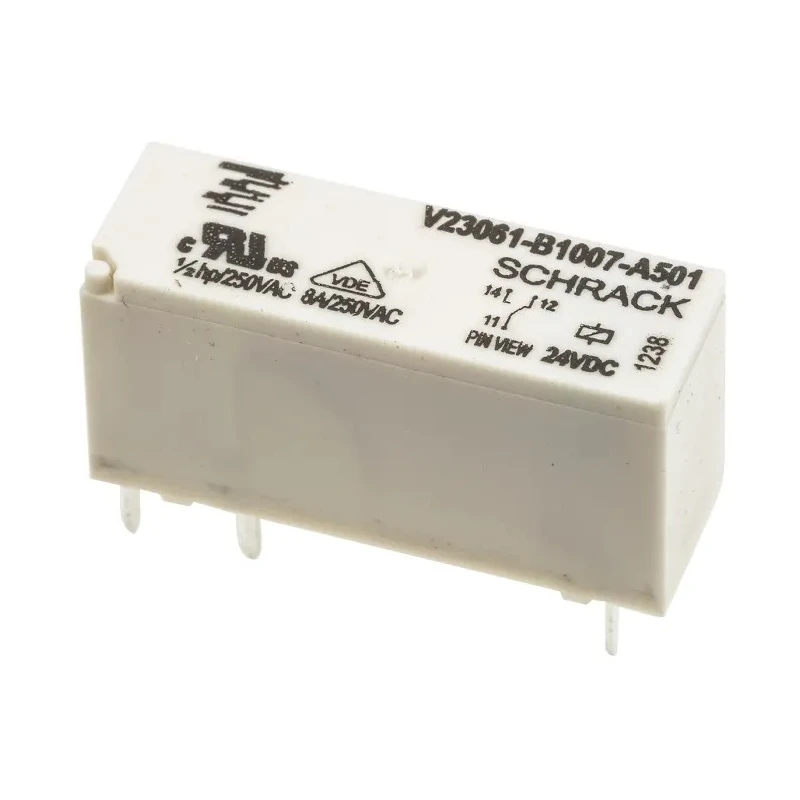

TE Connectivity PCB Power Relay 24V DC Coil 8A Switching Current SPDT V23061B1007A501

TE Connectivity V23061B1007A501 PCB Power Relay is a highly reliable component designed for electrical and automation systems requiring precise switching control. This relay features a 24V DC coil and supports an 8A switching current with SPDT contact configuration, ideal for industrial and commercial applications.

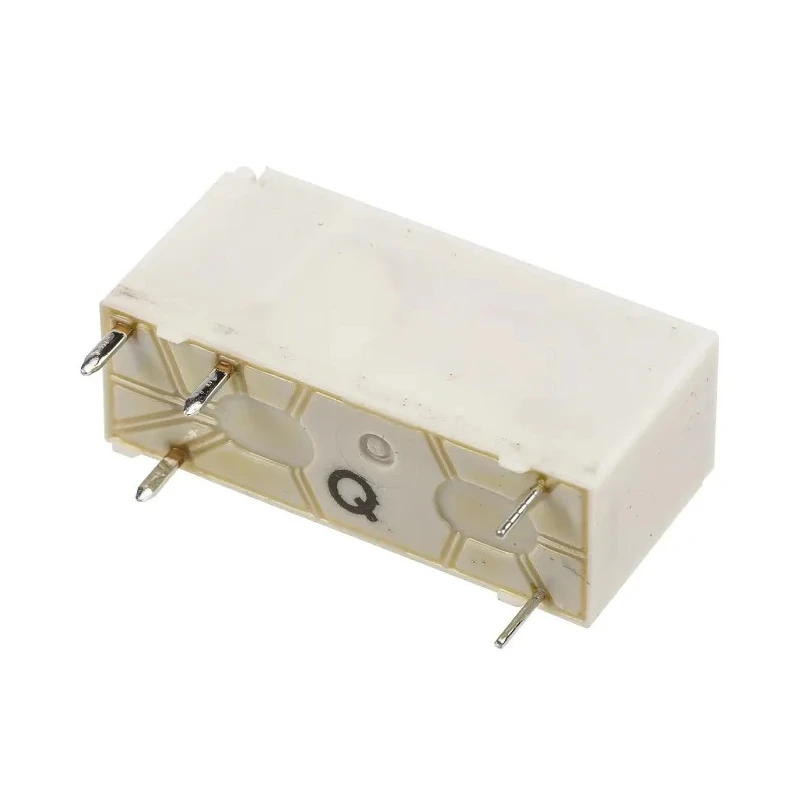

The relay mounts directly onto PCBs using solder terminals, facilitating seamless integration in electrical assemblies. Its coil power is low at 254mW with a coil resistance of 2.3kΩ, contributing to efficiency and reducing power loss within circuits. The switching AC voltage capacity is rated up to 400V AC, enabling it to handle a variety of load requirements.

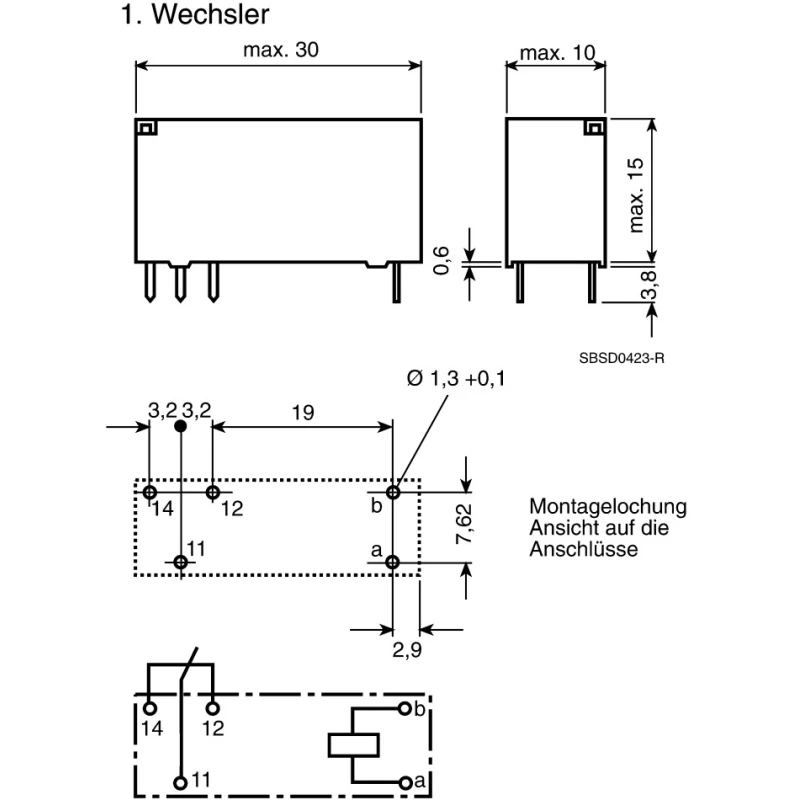

Operating at temperatures ranging from -40°C to +85°C, this relay withstands harsh environmental conditions. Constructed with silver alloy contacts, it assures excellent conductivity and longevity. With dimensions of 30mm (L) x 10mm (W) x 15mm (H), its compact form factor allows for space-efficient PCB layouts.

This model complies with RoHS directives and carries certifications from leading international bodies including VDE, UL, CSA, SEV, SEMKO, and SETI, reflecting its safety and quality assurance. It is also washproof and designed to manage high inrush currents via AgSnO contact technology, enhancing performance under demanding operational scenarios.

Applicable industrial domains include electrical automation, manufacturing control systems, HVAC control panels, and other commercial electrical equipment requiring robust relay components. The relay’s reliable switching capabilities ensure uninterrupted operation in critical industrial processes.

Choose TE Connectivity V23061B1007A501 for durable, efficient, and certified power relay applications within electronics and industrial automation. Designed for mounting on PCB with solder terminal type for secure installation.

Coil power consumption is 254mW with coil resistance of 2.3kΩ ensuring energy efficiency. Supports switching AC voltage up to 400V and ambient operating temperatures from -40°C to 85°C. Constructed with silver alloy contact material providing excellent conductivity and durability.

Compact dimensions of 30mm length, 10mm width, and 15mm height allow efficient space usage. Compliance with RoHS and certified by VDE, UL, CSA, SEV, SEMKO, and SETI standards ensures reliability and safety. Washproof design and capable of handling high inrush currents with AgSnO contact technology.
