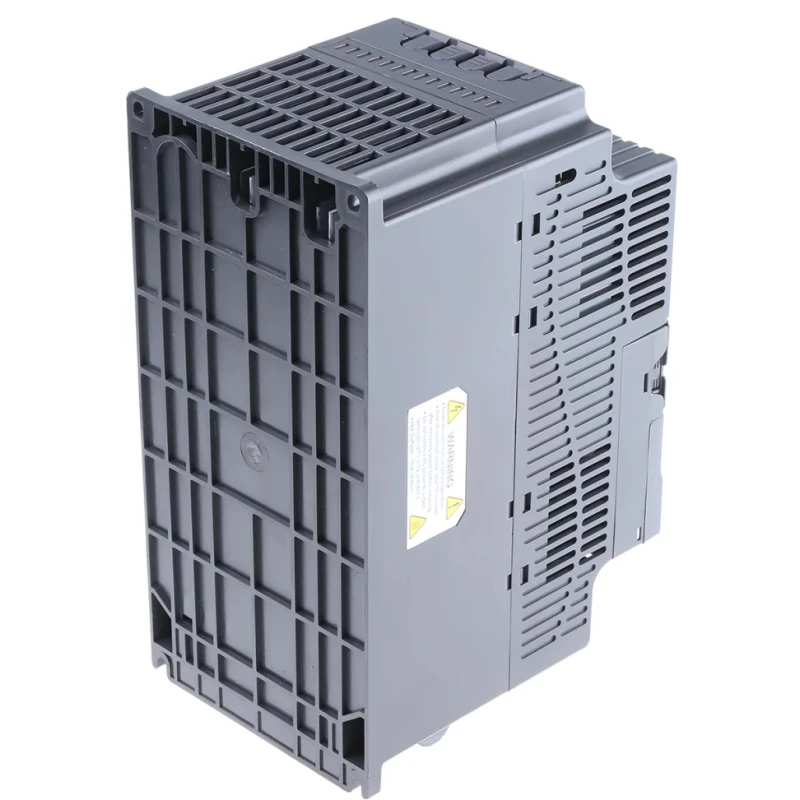

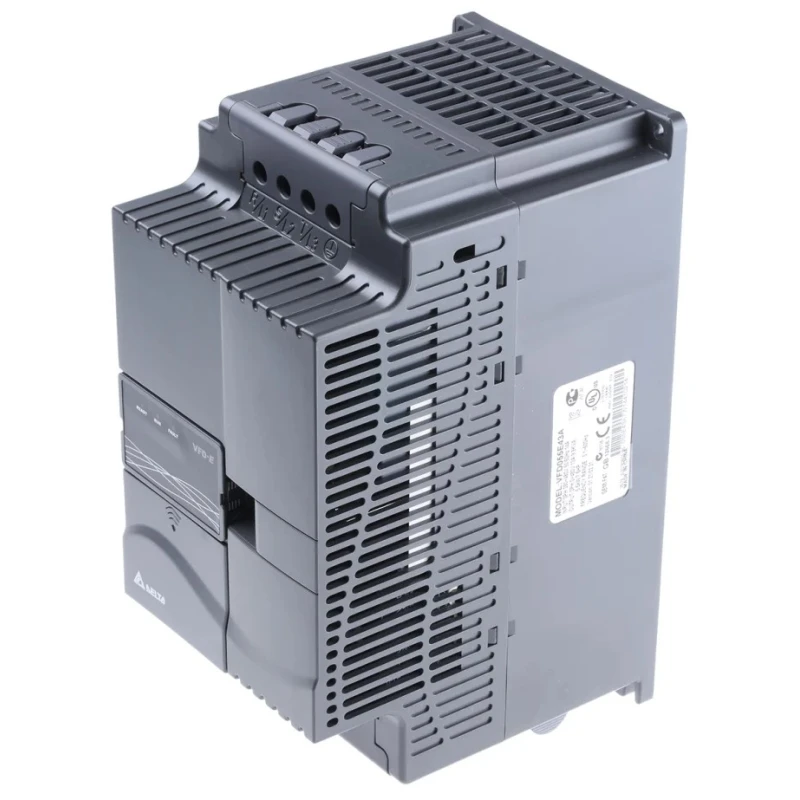

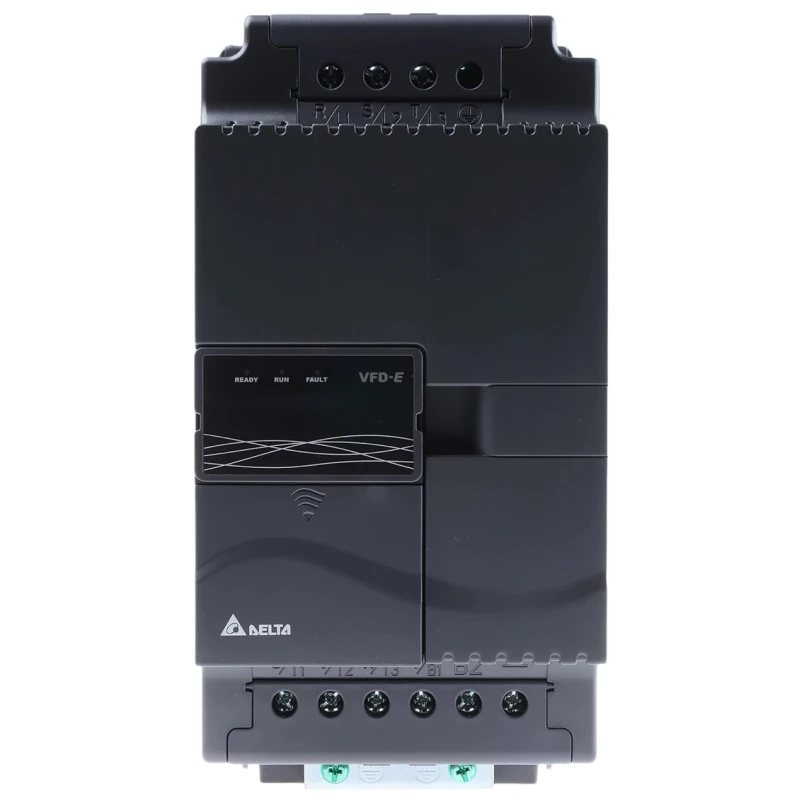

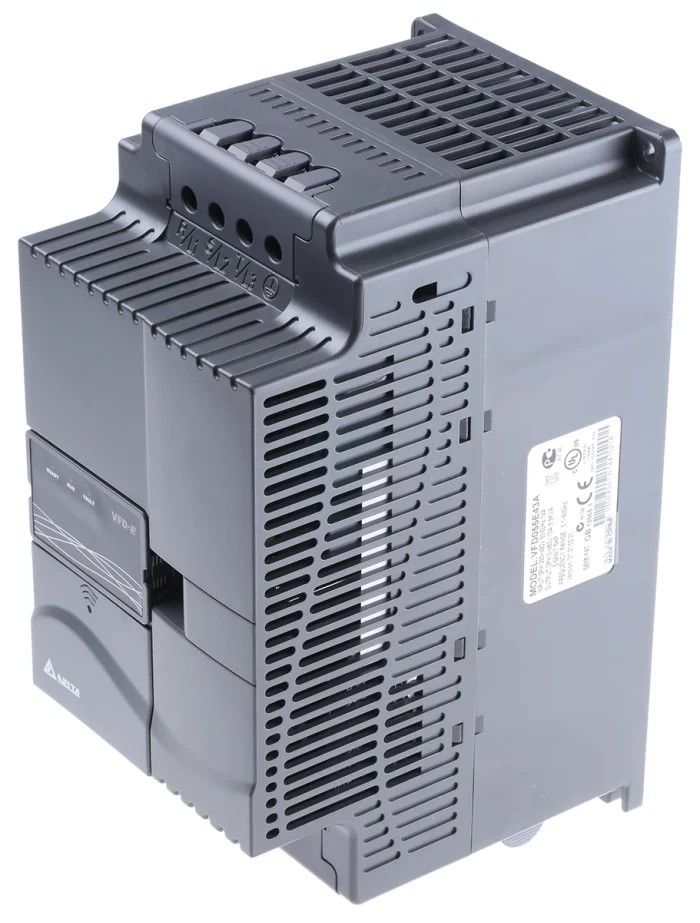

Delta Electronics Inverter Drive 5.5 kW 3 Phase Variable Frequency Drive VFD055E43A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Delta Electronics |
| Model | VFD055E43A |
| IP Rating | IP20 |
| Drive Type | Variable Frequency |
| Mount Type | Side |
| Overall Length | 260mm |
| Series | VFD-E |
| Overall Width | 130mm |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | +50°C |
| Output Frequency | 599Hz |
| Minimum Operating Temperature | -10°C |
| Number of Phases | 3 |
| Maximum Output Current | 13A |
| Overall Depth | 169.2mm |
| Minimum Supply Voltage | 460V ac |
| Better World Claim | Saves Energy |
| Compatible Motor Type | AC Motor |
Key Features
- Designed for AC motor compatibility with sensorless vector control.
- Features a modular compact design with flexible extension options.
- Includes built-in PLC and EMI filters for enhanced functionality.
- Supports output frequency range from 0.1 to 600 Hz for wide application scope.
- Equipped with RFI switch for mains and easy DC BUS sharing capability.
- IP20 rated enclosure ensures protection and reliability in industrial environments.
- Suitable for diverse industrial applications like cranes, washing machines, and HVAC systems.
- Operates reliably within temperature range of -10°C to +50°C.
Product Description
Delta Electronics VFD055E43A is a 5.5 kW, 3 phase inverter drive belonging to the VFD-E series, designed for controlling AC motors with variable frequency technology. It features a side mount design and an IP20 rating, ensuring protection suitable for industrial use. The drive supports a maximum output current of 13 A and operates at a supply voltage of 460V ac with output frequency capability up to 599 Hz.
The VFD-E series is engineered to provide low horsepower constant torque performance with a sensorless vector control method. Its modular and compact construction allows flexible extension through optional cards and built-in PLC functionality, enabling users to create and execute ladder logic programming tailored to specific application needs.
Additional protective features include a built-in EMI filter and an RFI switch for mains interference reduction. The drive facilitates easy DC BUS sharing and offers optional fieldbus communication modules including DeviceNet, Profibus, LonWorks, and CANopen, enhancing connectivity in modern industrial automation systems.
This inverter drive is ideal for industrial applications such as smaller cranes, washing and grinding machines, drilling and woodworking equipment, textile machinery like webbing looms, large air conditioning units, and water supply systems in large buildings. It operates over a temperature range from -10°C to +50°C, ensuring reliable performance in varied environments.
Designed for AC Motor compatibility with sensorless vector control. Modular and compact design with flexible extension capabilities. Built-in PLC and EMI filter for advanced control and noise reduction. Output frequency adjustable from 0.1 to 600 Hz.
Includes RFI switch for mains and easy DC BUS sharing. IP20 rated for protection and durability in industrial settings. Supports optional fieldbus communication modules (DeviceNet, Profibus, LonWorks, CANopen). Operates reliably within minimum and maximum temperatures of -10°C to +50°C.
The Delta Electronics VFD-E Series Inverter Drive is a sustainable product designed to save energy, compliant with industrial standards, and suited for a wide range of automation control applications in manufacturing, HVAC, and water treatment industries. For comprehensive industrial solutions, explore additional products and accessories within the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 5.5 kW.
The maximum output frequency supported by this unit is 599 Hz.
It has an IP20 rating, providing protection suitable for industrial environments.
The inverter drive operates reliably within a temperature range of -10°C to +50°C.
This model is compatible with AC motors.
The maximum output current for this unit is 13 A.
It features a side mount design.
Yes, it supports optional fieldbus communication modules including DeviceNet, Profibus, LonWorks, and CANopen.
It includes a built-in PLC and EMI filters for advanced control and noise reduction.
The overall dimensions are 260 mm in length, 130 mm in width, and 169.2 mm in depth.
This inverter drive is suitable for applications such as cranes, washing machines, HVAC systems, and more.
The country of origin for this model is India.
