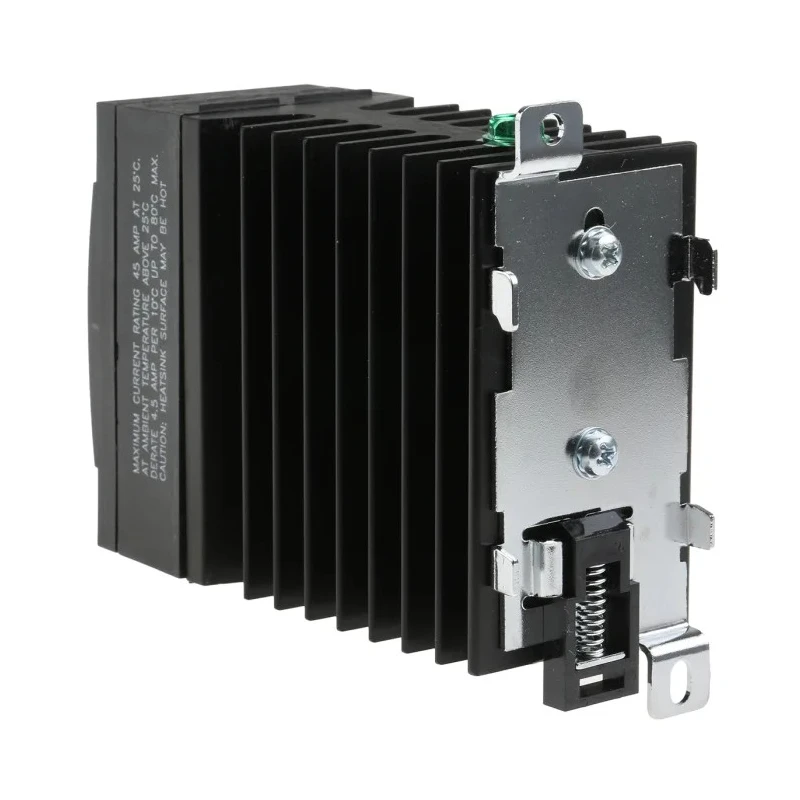

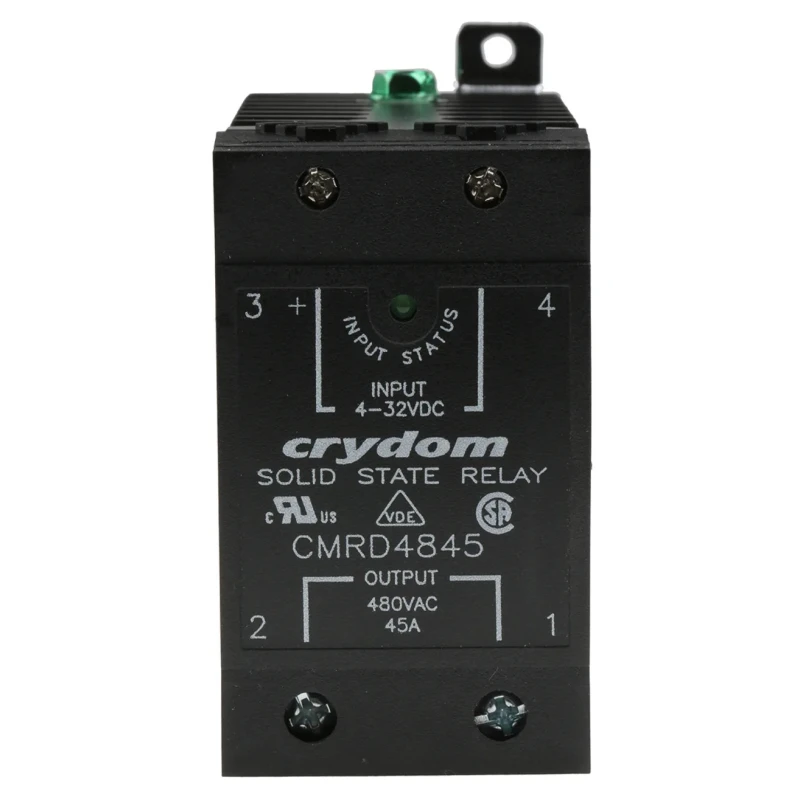

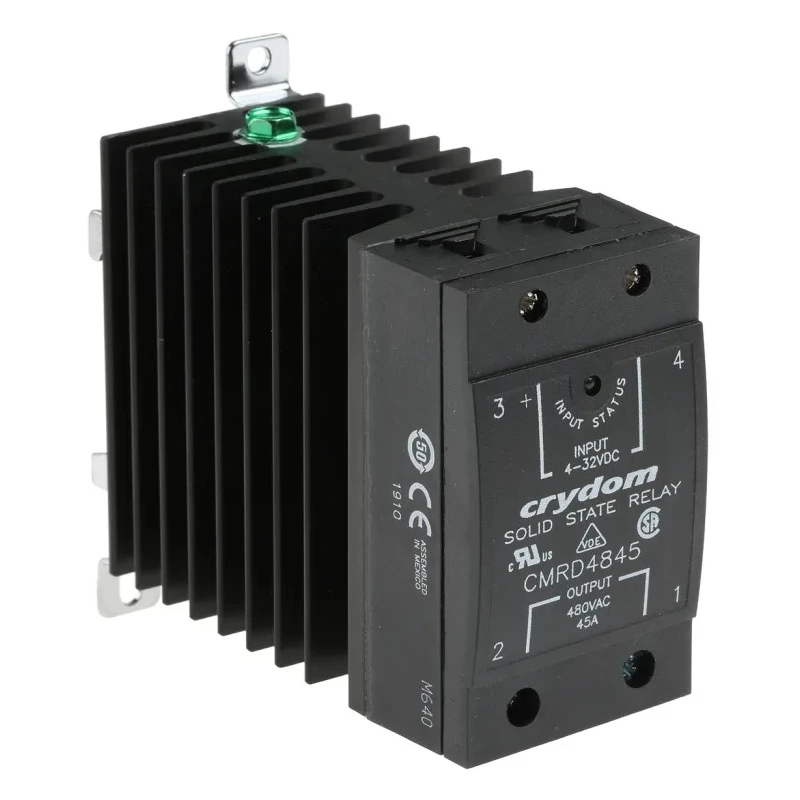

Crydom Solid State Relay, 45 A Load, 530 V Load, 32 V Control, DIN Rail Mount CMRD4845

Crydom CMRD4845 Solid State Relay is designed for industrial and automation use, handling a maximum load current of 45 A with a load voltage rating of 530 V. It mounts securely on DIN rails, facilitating easy integration in electrical panels.

This relay utilizes a single-pole single-throw (SPST) contact configuration and provides zero cross switching, which minimizes electrical noise during switching. It operates reliably across a wide control voltage range from 4 V DC to 32 V and supports a minimum load voltage of 48 V AC.

The product features an integral heatsink for enhanced thermal management and a fingerproof safety cover ensuring operator safety. An LED status indicator offers clear visual confirmation of operational status.

Designed for durability, it functions efficiently between -40°C and 80°C ambient temperatures. The compact dimensions of 109.2 mm height, 44.5 mm width, and 76.2 mm depth make it suitable for space-constrained control cabinets.

Connections are facilitated by screw terminals with a caged rising clamp mechanism, providing secure and vibration-resistant wiring. The off-state leakage current is maintained at 10 mArms to ensure minimal energy loss.

This solid state relay complies with RoHS environmental standards and is manufactured in Mexico. It is ideal for industrial automation, HVAC systems, electrical equipment control, and manufacturing applications requiring reliable electronic switching.

Supports maximum load current of 45 A with a load voltage up to 530 V. Operates with a control voltage range from 4 V DC to 32 V. Equipped with SPST contact configuration and zero cross switching function. Rated for minimum operating temperature of -40°C and maximum operating temperature of 80°C.

Constructed with integral heatsink and fingerproof safety cover for protection. Features LED status indicator for operational monitoring. Compact dimensions: Height 109.2 mm, Width 44.5 mm, Depth 76.2 mm. Terminals use screw connection with caged rising clamp design.

Off-state leakage current is limited to 10 mArms for energy efficiency. Complies with RoHS and is manufactured in Mexico. Discover advanced electrical components like the Crydom CMRD4845 in the Solid State Relay category on EnvMart for industrial and commercial electrical system solutions.
