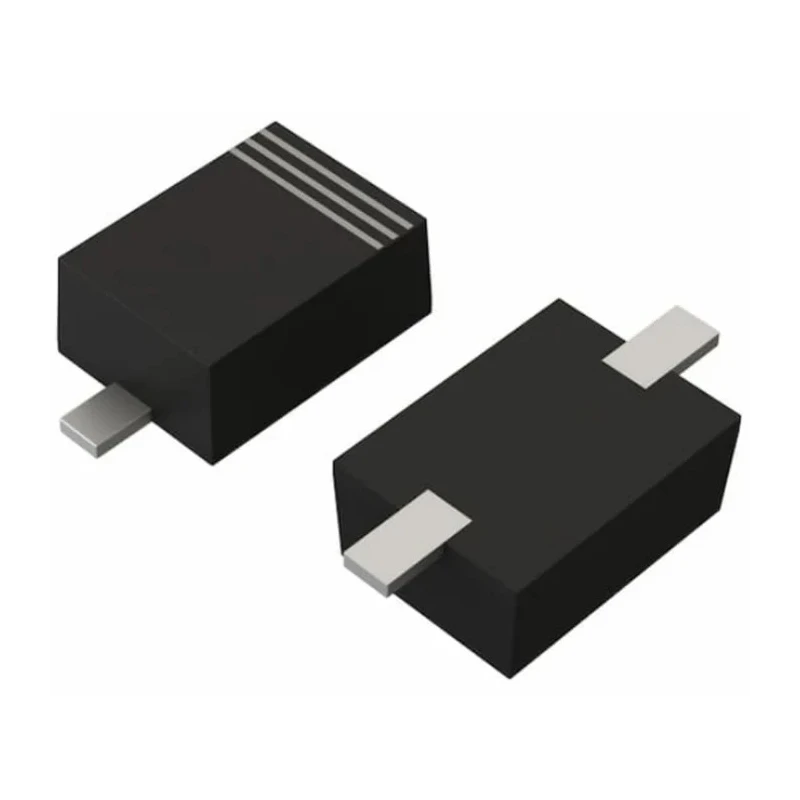

ROHM Uni-Directional TVS Diode 200 mW 2-Pin SOD-323FL UDZUVFHTE-175.6B

The ROHM UDZUVFHTE-175.6B is a uni-directional Transient Voltage Suppressor (TVS) diode designed for effective electrostatic discharge (ESD) protection in electronic devices. It features a single diode configuration with a peak pulse power dissipation of 200 mW, making it suitable for protecting sensitive components against voltage spikes.

Housed in a compact 2-pin SOD-323FL surface mount package measuring 1.35 mm in length and 2.7 mm in height, this diode supports integration into space-constrained circuit boards. The minimum breakdown voltage is 5.49 V, and the maximum reverse stand-off voltage is 3.3 V, providing reliable suppression of transient voltages.

With an operating temperature range from -55°C to 150°C, it performs reliably under harsh and industrial environmental conditions. The diode is compliant with the automotive grade standard AEC-Q101, making it an ideal choice for automotive electronics requiring automotive reliability standards.

The device offers high ESD protection in accordance with IEC61000-4-2 and is RoHS compliant, supporting environmentally friendly manufacturing. Its low parasitic capacitance of approximately 8.0 pF makes it suitable for high-frequency applications requiring minimal signal distortion.

Packaging is provided as minimum 3000 units per embossed tape reel, designed for automated assembly lines to improve production efficiency.

This ROHM TVS diode is widely used in industrial, automotive, telecommunications, and consumer electronics applications where transient voltage protection is critical for device longevity and operational stability.

The device features a single diode configuration optimized for surge suppression. It offers a minimum breakdown voltage of 5.49 volts and maximum reverse stand-off voltage of 3.3 volts. Designed for surface mount with a compact SOD-323FL package, dimensions 1.35 mm length and 2.7 mm height.

Operating temperature range from -55°C to 150°C ensures reliable performance in harsh environments. Automotive grade component compliant with AEC-Q101 standard, suitable for stringent automotive applications. High ESD protection capability compliant with IEC61000-4-2 standard.

Capacitance approximately 8 pF supports high-frequency circuits. RoHS compliant and lead-free for environmental safety. Package supplied in embossed tape with minimum 3000 unit pack quantity for efficient manufacturing integration.
