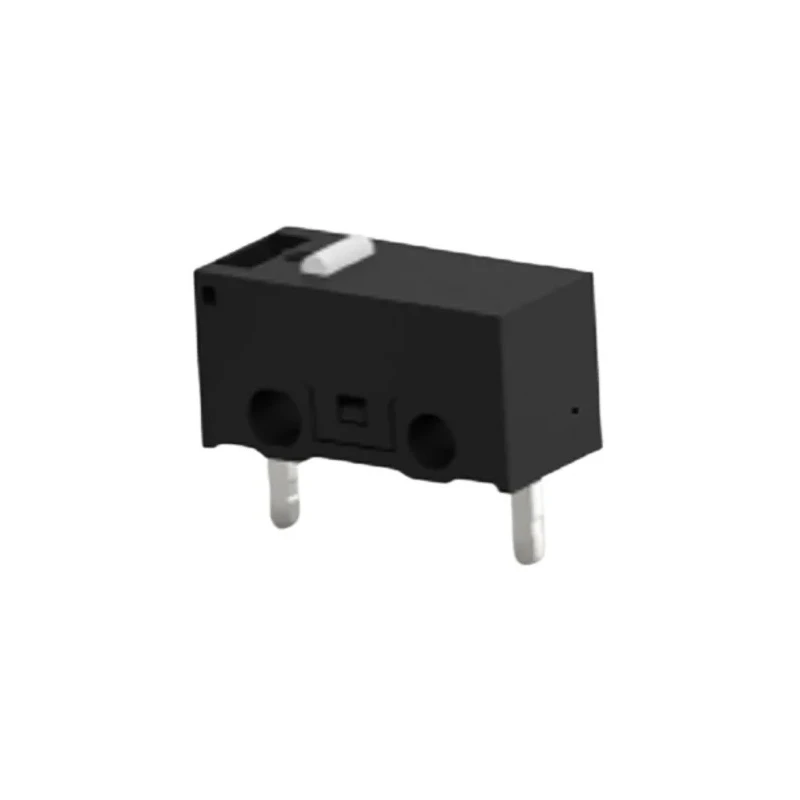

TE Connectivity Pin Plunger Snap Action Miniature Micro Switch PCB Terminal 3A SPST SAJ13XXPP0N88SNCPTQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ13XXPP0N88SNCPTQ |
| Series | SAJ |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPST |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 3A |
| Operating Force | 0.75N |
| Mechanical Life | 500000Cycles |
| Microswitch Type | Miniature |
Key Features
- The actuator type is a pin plunger providing precise switching action.
- Rated for a current of 3 amperes for reliable circuit control.
- Features PCB terminal type for secure printed circuit board mounting.
- Operates reliably between -25°C and 75°C temperature range.
- Mechanical life expectancy of 500,000 cycles ensures long-term durability.
- Contact configuration is SPST, supporting single pole single throw switching.
- Operating force is 0.75 newtons for easy actuation.
- Designed as a miniature type suitable for compact applications.
Product Description
TE Connectivity SAJ13XXPP0N88SNCPTQ is a miniature pin plunger snap action micro switch designed to convert mechanical motion into electrical signals reliably. It is ideal for applications in home appliances, consumer electronics, and factory automation where compact, durable switching components are required. Featuring PCB terminals, this switch ensures secure connection on printed circuit boards, making it suitable for industrial and domestic products.
This micro switch supports a single pole single throw (SPST) contact configuration rated for up to 3 amperes, providing dependable performance in low to moderate current switching circuits. The actuation force is specifically calibrated at 0.75N, offering precise and consistent actuation with minimal user effort.
With a robust mechanical life of 500,000 cycles, it assures longevity and reliability in continuous operation environments. The device operates effectively in temperatures ranging from -25°C to 75°C, enabling use in varied climatic and industrial conditions. Additionally, the miniature form factor allows integration into compact assemblies without compromising performance.
Manufactured under strict quality standards in China, the switch complies with RoHS directives, ensuring environmentally safe materials and production processes. This part is dimensionally compatible with other popular micro switch brands, facilitating easy replacement or design integration.
The pin plunger actuator delivers precise and reliable switching. PCB terminals provide secure and stable circuit board mounting. The switch supports 3A current handling for versatile usage. Operating temperature range of -25°C to 75°C suits diverse environments.
Mechanical durability rated at 500,000 cycles ensures extended service life. SPST contact configuration for straightforward circuit control. Compliant with RoHS standards, promoting safe and environmentally friendly use.
This TE Connectivity micro switch is widely applied in industrial automation systems, electrical and electronic control panels, HVAC equipment, and consumer devices, delivering performance where precision and reliability are critical. Explore the full range of Micro Switches at EnvMart for compatible products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 3 amperes, making it suitable for low to moderate current switching circuits.
It operates effectively between -25°C and 75°C, allowing for use in diverse climatic and industrial conditions.
The switch features a single pole single throw (SPST) contact configuration, which supports straightforward circuit control.
It has a mechanical life expectancy of 500,000 cycles, ensuring longevity and reliability in continuous operation environments.
This unit uses a pin plunger actuator, which provides precise and reliable switching action.
The operating force for actuation is calibrated at 0.75 newtons, allowing for easy actuation with minimal user effort.
It features PCB terminals, ensuring secure and stable mounting on printed circuit boards.
Yes, it complies with RoHS directives, ensuring that it is manufactured with environmentally safe materials and processes.
The switch is manufactured in China, adhering to strict quality standards.
It is widely applied in industrial automation systems, electrical control panels, HVAC equipment, and consumer devices.
This micro switch is part of the SAJ series by TE Connectivity.
It is dimensionally compatible with other popular micro switch brands, facilitating easy replacement or design integration.
