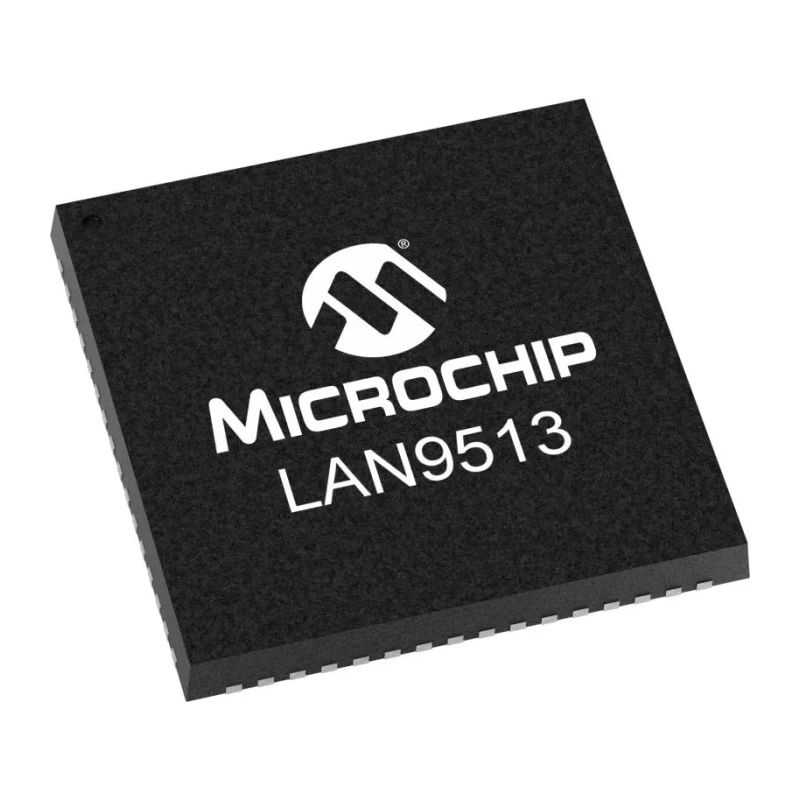

Microchip 3.3 V 480 Mbps Ethernet Controller 64-Pin QFN Full Duplex/Half Duplex LAN9513I-JZX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 9mm |
| Model | LAN9513I-JZX |
| Width | 9mm |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Sub Type | Controller |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 2 |
| Communication Mode | Full Duplex/Half Duplex |
| Pin Count | 64 |
| Maximum Supply Voltage | 3.3V |
| Supply Current | 74mA |
| Maximum Data Rate | 480Mbps |
| Standard Supported | IEEE |
Key Features
- Integrated Hi-Speed USB 2.0 hub and 10/100 Ethernet controller in a single package.
- 64-pin QFN package for compact system designs.
- Operates within -40°C to 85°C temperature range.
- Maximum supply voltage and minimum supply voltage both 3.3 V ensuring stable operation.
- Low supply current consumption of 74 mA for power efficiency.
- Supports IEEE standards for Ethernet communication.
- Includes EEPROM-less design option to reduce BOM costs.
- Unique PHYBoost technology for programmable four-level USB signal drive strengths.
Product Description
Microchip LAN9513I-JZX is a high-performance Ethernet controller integrated with a 3-port Hi-Speed USB 2.0 hub, designed for efficient USB to Ethernet and multi-port USB connectivity solutions. Housed within a 64-pin QFN package measuring 9x9x1 mm, it provides up to 480 Mbps data transfer rates at 3.3 V supply voltage.
This controller supports both Full Duplex and Half Duplex communication modes compliant with IEEE Ethernet standards. It operates over a wide temperature range from -40°C to 85°C, making it suitable for diverse industrial, consumer electronics, and mobile internet device applications.
The EEPROM-less design option lowers the bill of materials, reducing overall system cost. The device also features Microchip’s unique PHYBoost technology that allows programmable USB signal drive strengths, ensuring signal integrity and performance optimization in various environments.
Key performance attributes include a low supply current of 74 mA and automotive standards not applicable for this model. The LAN9513I-JZX’s compact footprint and integrated functionality make it ideal for space-constrained designs requiring reliable USB and Ethernet interface capabilities.
Applications include embedded systems, industrial equipment, communication devices, and consumer electronics requiring fast and stable Ethernet connectivity with integrated USB hub functionality. The package contents include the LAN9513I-JZX controller chip supplied in a tray ready for insertion into manufacturing processes.
Integrated Hi-Speed USB 2.0 hub and 10/100 Ethernet controller in one package. Wide operating temperature range from -40°C to 85°C. Compact 64-pin QFN package measuring 9 mm x 9 mm x 1 mm. Low power consumption with 74 mA supply current.
Supports IEEE Ethernet standards with Full Duplex/Half Duplex modes. EEPROM-less design option reduces system costs. PHYBoost technology enables programmable USB signal strengths. Ideal for mobile internet and embedded device applications.
Stable operation at 3.3 V supply voltage. Supplied in trays for efficient manufacturing insertion. Explore more Ethernet Interface Ics and Microchip products at EnvMart for industrial and commercial electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this model is 480 Mbps.
It operates at a stable supply voltage of 3.3 V.
This controller supports both Full Duplex and Half Duplex communication modes.
The LAN9513I-JZX operates within a temperature range of -40°C to 85°C.
This model is housed in a 64-pin QFN package measuring 9 mm x 9 mm x 1 mm.
The supply current consumption is 74 mA, which contributes to its power efficiency.
Yes, it includes an EEPROM-less design option to reduce bill of materials costs.
It supports a Hi-Speed USB 2.0 interface.
The country of origin for this model is India.
It supports IEEE standards for Ethernet communication.
It is suitable for embedded systems, industrial equipment, communication devices, and consumer electronics requiring fast and stable Ethernet connectivity.
It features Microchip’s unique PHYBoost technology for programmable four-level USB signal drive strengths.
