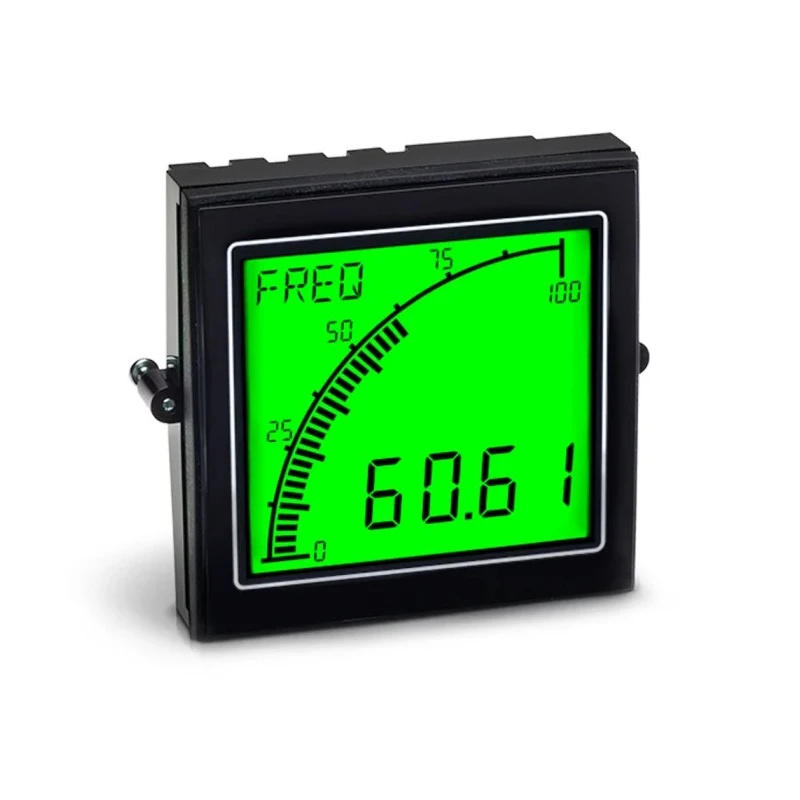

Trumeter Advanced Panel Meter 3-in-1 LCD Digital Panel Multifunction Meter for Current Frequency Voltage 68mm x APM-M1-APO

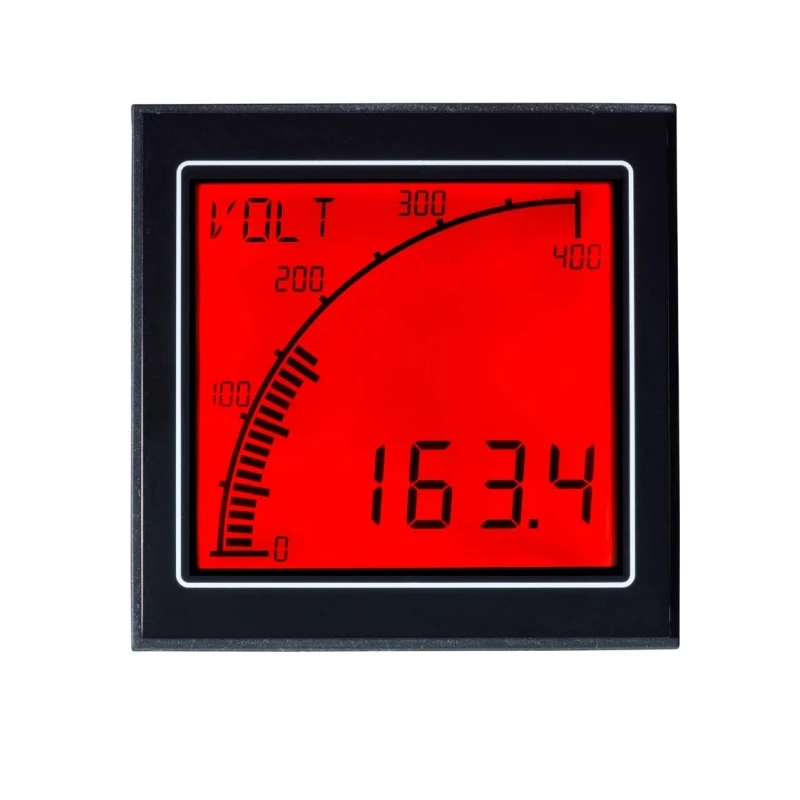

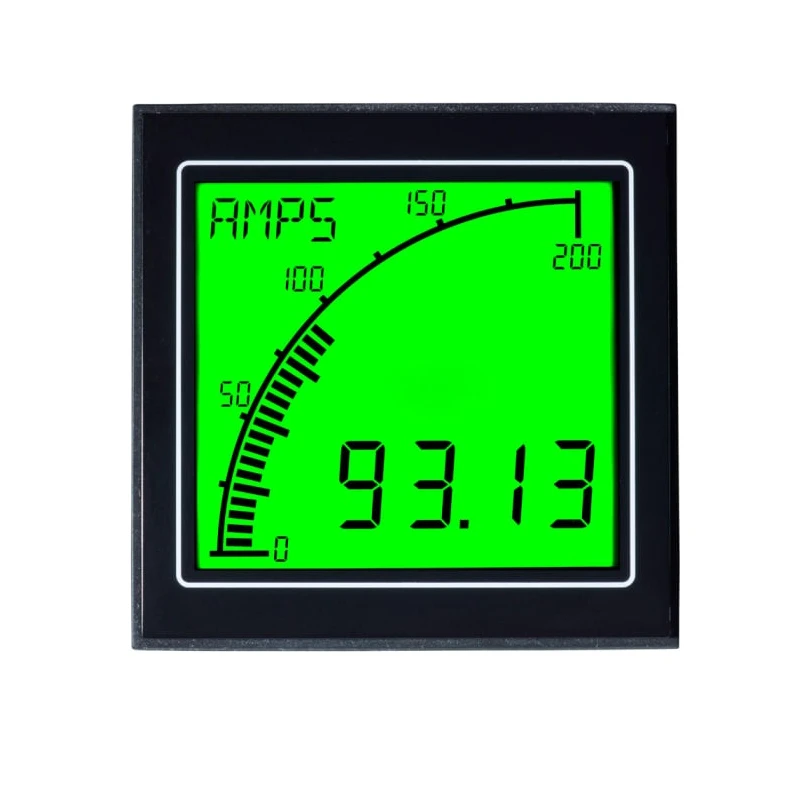

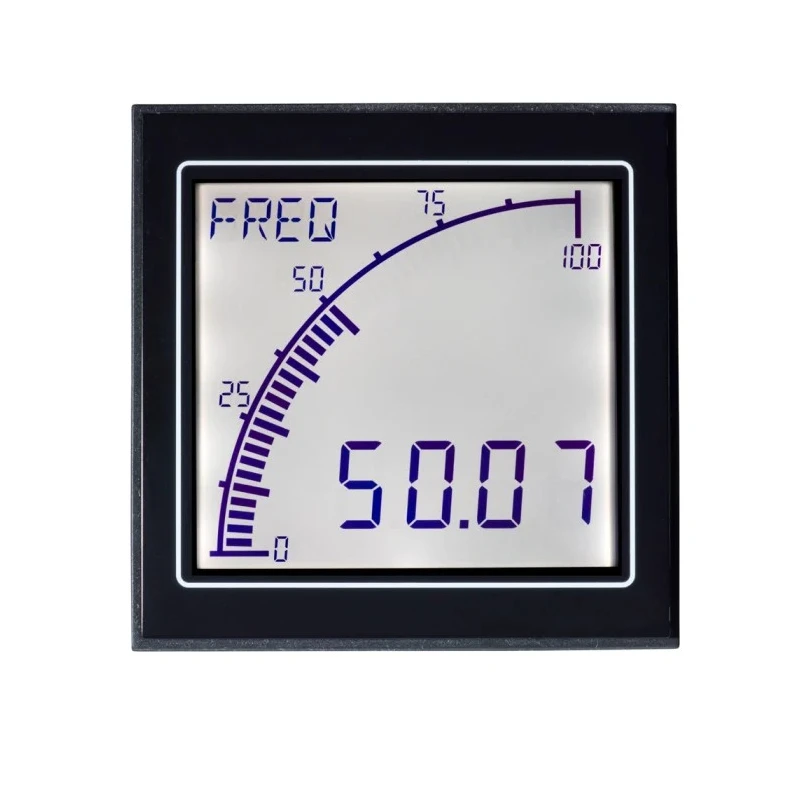

Trumeter APM-M1-APO is an advanced 3-in-1 LCD digital panel multifunction meter designed to measure current, frequency, and voltage with high precision and reliability. It features a 4-digit LCD display coupled with a 40-segment bar graph and a dynamic color-changing backlight that provides immediate visual feedback on measurement conditions. The meter fits into a compact 68 mm by 68 mm panel cutout and has a depth of 53 mm, making it suitable for various industrial control panels.

This electronic meter operates on a 12-24V AC/DC power supply and is ruggedly built to withstand harsh environments, rated at IP65 for protection against dust and water ingress. It supports extensive customization through free APM configuration software, allowing users to set scale and range values, configure alarms with ten setpoints, and program digital messaging. Two independent outputs are included, which can be set as open collector digital outputs or 4-20mA analog outputs for integration into control systems.

The meter provides measurement accuracies of 1% for voltage and current, and 0.5% for frequency within the 2-400Hz range, making it versatile for electrical, process control, and automation applications. Its high-contrast anti-glare LCD and wide viewing angle enable easy readability even in bright industrial settings. The meter is CE, RoHS, and UL certified and is manufactured in Malaysia.

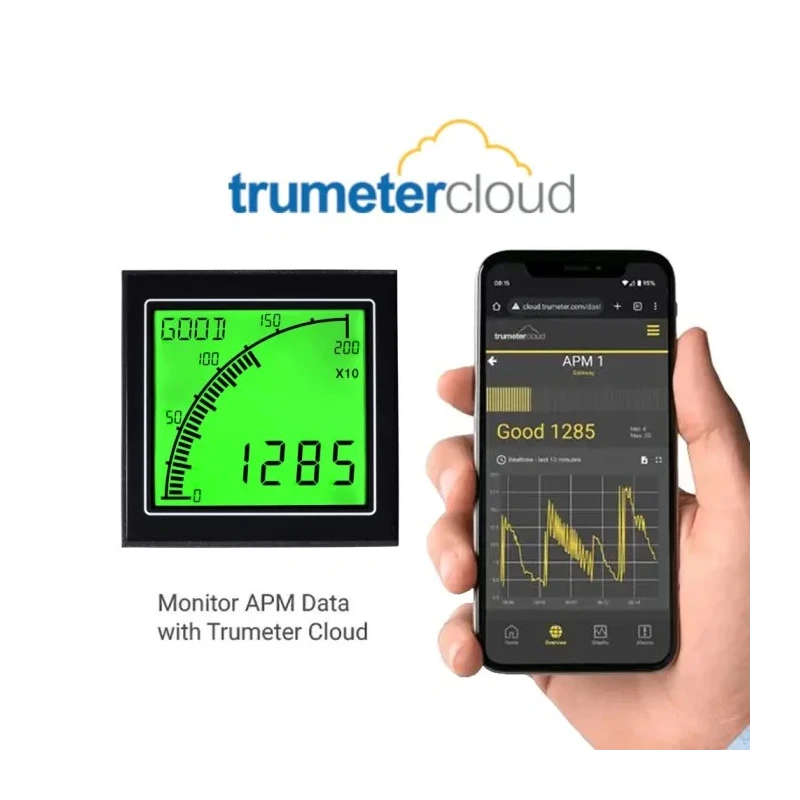

Remote monitoring capabilities are unlocked when used with the Trumeter APM IoT Gateway and the Trumeter Cloud platform, providing real-time data access, recording, and alert notifications via online, SMS, or email channels. This feature is ideal for industrial, manufacturing, laboratory, and HVAC monitoring applications.

Measures current, frequency, and voltage with high accuracy. Large, anti-glare LCD with dynamic color backlight and 40-segment bar graph. User-configurable via APM software for extensive settings customization. Dual outputs configurable as digital or 4-20mA analog signals.

Operates on 12-24V AC/DC power with IP65 environmental protection. Remote monitoring through Trumeter Cloud using IoT Gateway. Complies with CE, RoHS, and UL standards. Compact panel design with 68 mm x 68 mm cutout and 53 mm depth.

Wide operating temperature range from -10°C to 60°C. Explore this Digital Panel Multifunction Meter to enhance your industrial automation and process control setup at EnvMart.
