Trumeter Advanced Panel Meter Energy Meter AC with Multi-measurement Capabilities APM-PWR-APO

Free Delivery in India | Lowest Global Shipping Charges

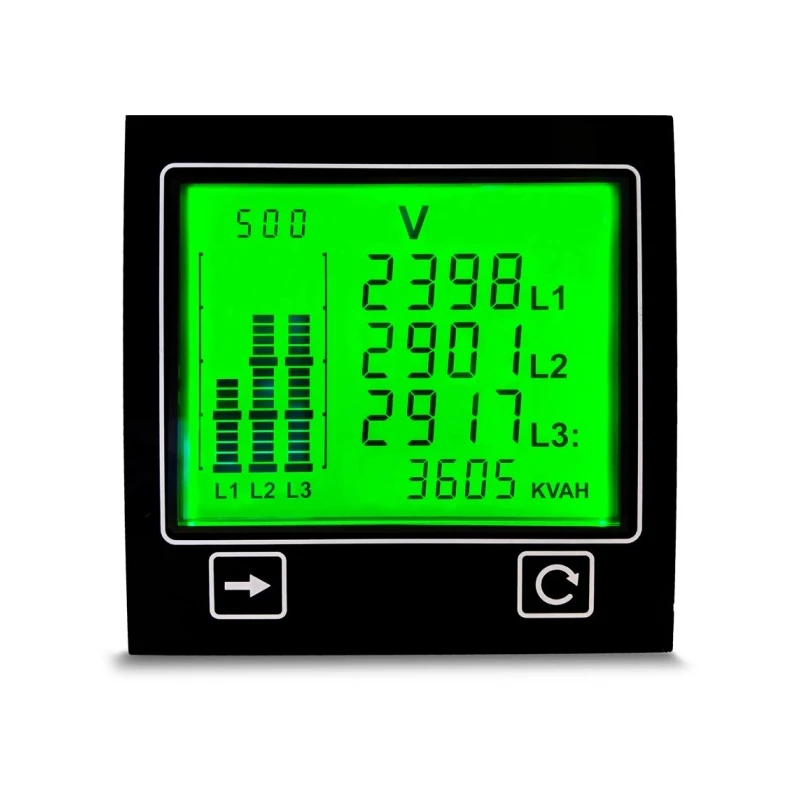

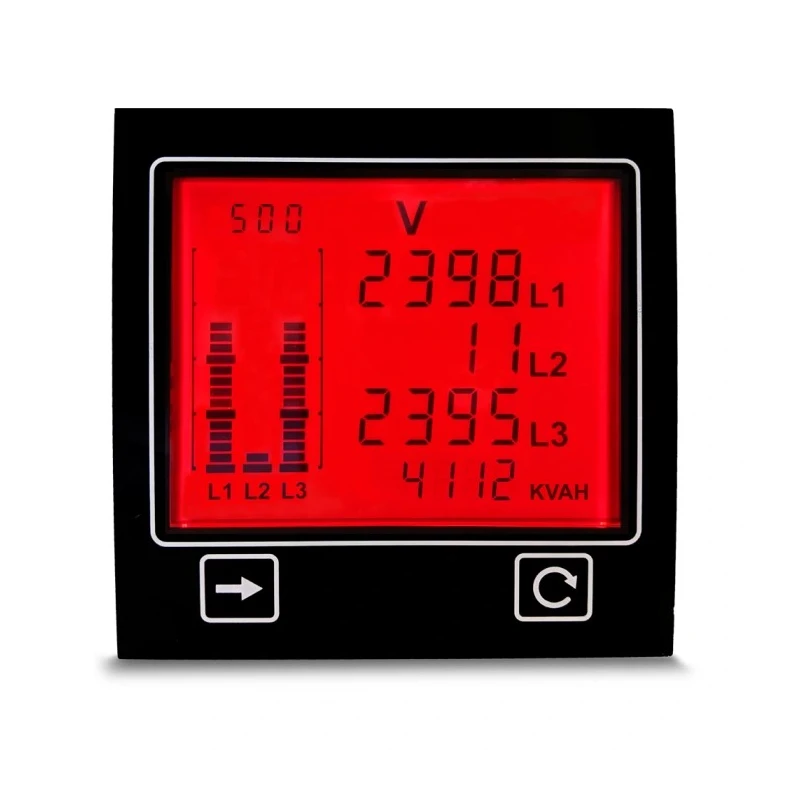

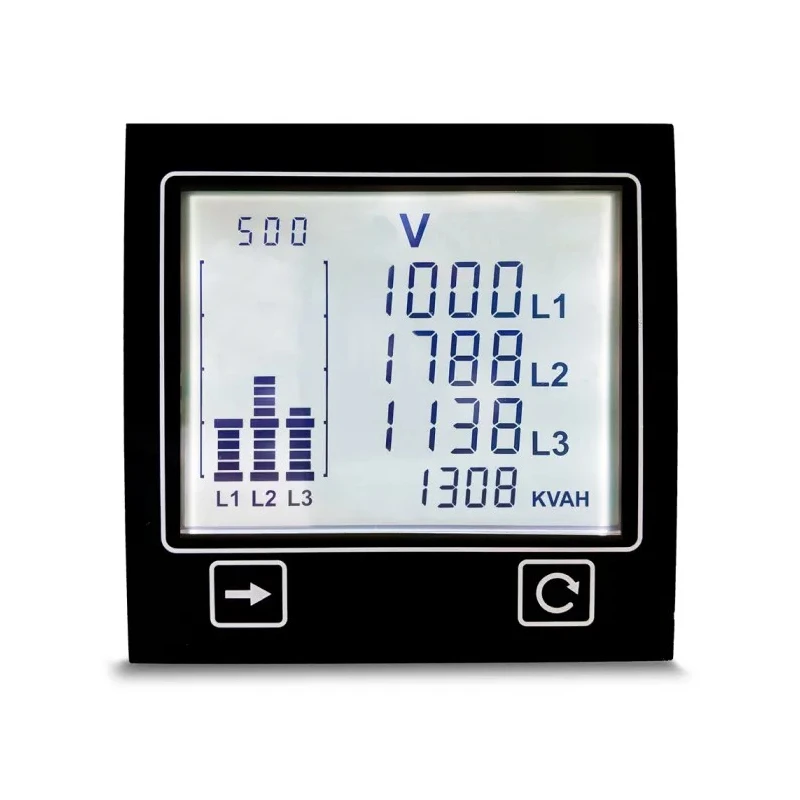

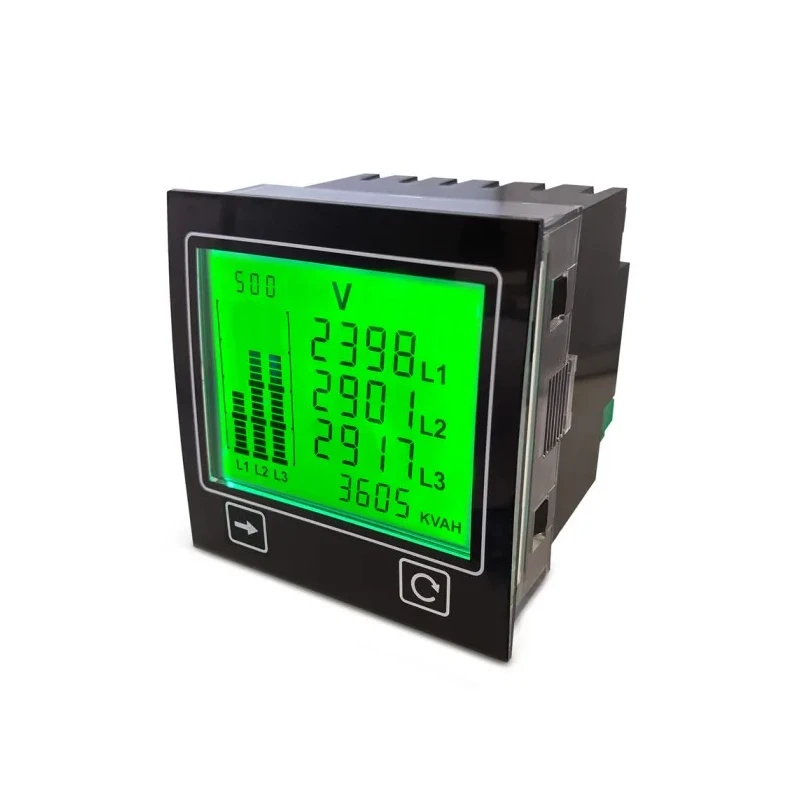

Trumeter Advanced Panel Meter Energy Meter AC with Multi-measurement Capabilities APM-PWR-APO

Name: Trumeter Advanced Panel Meter Energy Meter AC with Multi-measurement Capabilities APM-PWR-APO
Brand: Trumeter
SKU: 167816
Price: 310.15 USD
Availability: InStock



Category Energy Meter Brand Trumeter Condition New

Specifications

Country of Origin	Malaysia
Brand	Trumeter
Model	APM-PWR-APO
Series	APM
Maximum Operating Temperature	50°C
Current Type	AC
Standards/Approvals	UL, CE, RoHS
Cutout Height	68mm
Cutout Width	68mm

Key Features

Measures active, reactive, and apparent power accurately.
Displays voltage, current, frequency, power factor, and total energy.
Features a large backlit LCD with dynamic colour-changing backlight for instant condition feedback.
Supports user configuration with scale ranges, alarms, and custom messages.
Includes Modbus RTU communication and multiple outputs for integration.
Programmable CT and PT ratios enhance flexibility for various applications.
Robust operation up to 50°C maximum ambient temperature.
Complies with UL, CE, and RoHS standards for safety and quality.

Product Description

Trumeter APM-PWR-APO is an advanced energy meter designed for AC single-phase, split-phase, and three-phase networks. It supports a broad range of voltage and current inputs, making it suitable for various industrial and commercial electrical systems. The meter provides comprehensive electrical measurements including active (W), reactive (VAr), and apparent (VA) power, as well as voltage (L-L and L-N), current, frequency, power factor, and total energy consumption (kWh or kVAh).

The large, backlit LCD display features a dynamic colour-changing backlight that provides immediate visual feedback on electrical performance and alarms. The starburst display area is designed for showing programmable messages and alarm statuses. This meter supports user configuration via free APM software, allowing customization of scales, alarm setpoints, CT/PT ratios, and display colours.

In addition to measurements, the meter includes two independent opto-isolated digital outputs and one analogue 4-20mA output, facilitating integration with control systems. Modbus RTU communication enables remote monitoring and data collection, crucial for preventive maintenance and energy management.

The Trumeter Energy Meter operates reliably in temperatures up to 50°C and complies with UL, CE, and RoHS standards, ensuring safety and environmental compliance.

This product is ideal for use in industrial plants, commercial buildings, electrical distribution panels, and energy monitoring systems in sectors such as manufacturing, utilities, and HVAC.

Measures active, reactive, and apparent power for comprehensive electrical monitoring. Backlit LCD with dynamic colour backlight for easy parameter visualization. User-configurable scale and alarm messages for customized operation.

Includes digital and analogue outputs plus Modbus RTU communication. Supports programmable CT and PT ratios for flexible installations. Operates up to 50°C with UL, CE, and RoHS certifications. Explore more Energy Meters and related instrumentation in the Industrial Measuring & Testing Instruments category on EnvMart.
