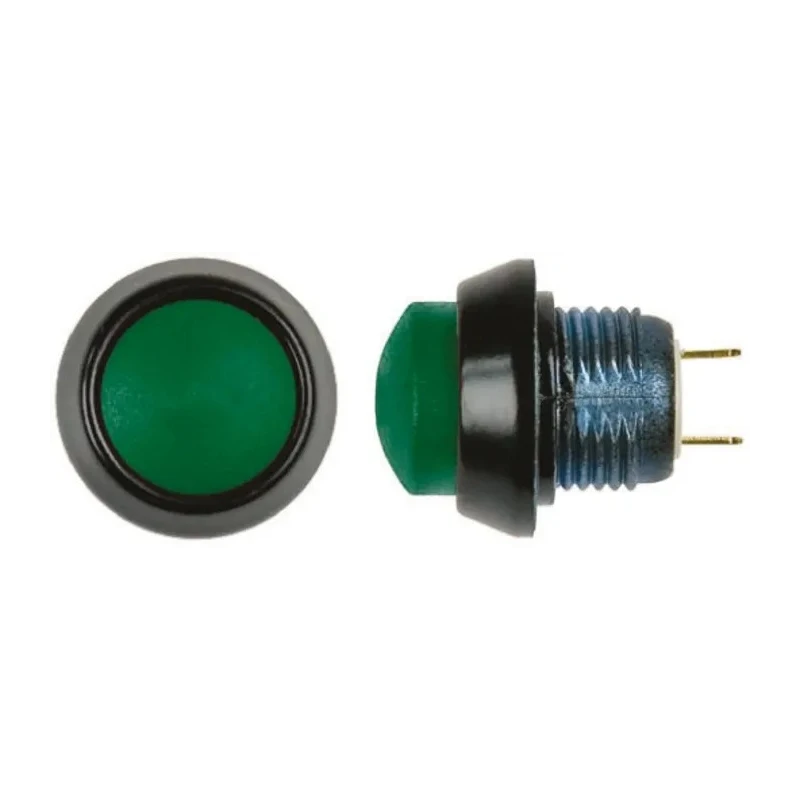

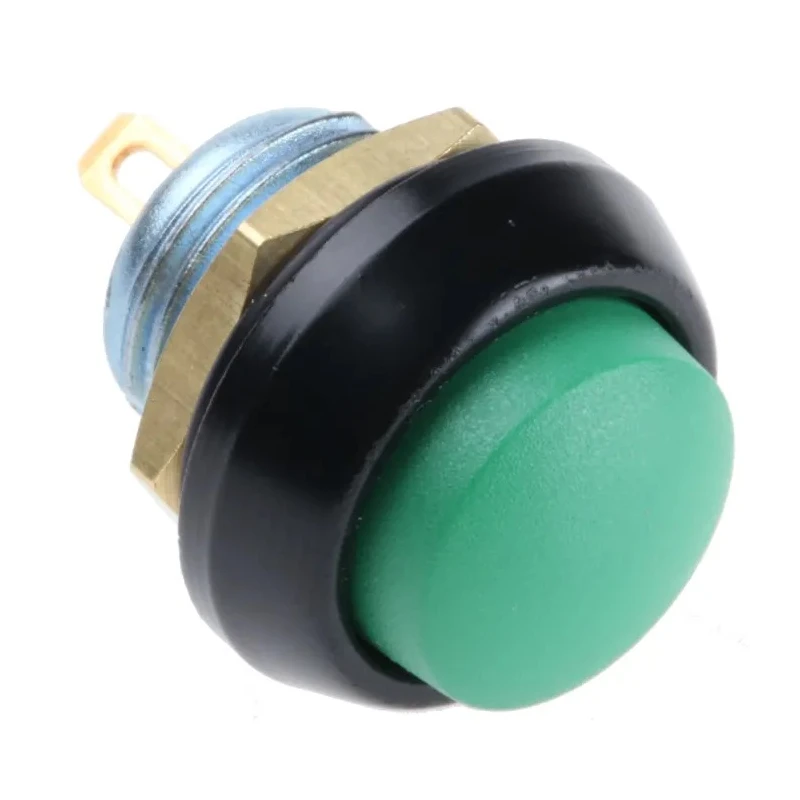

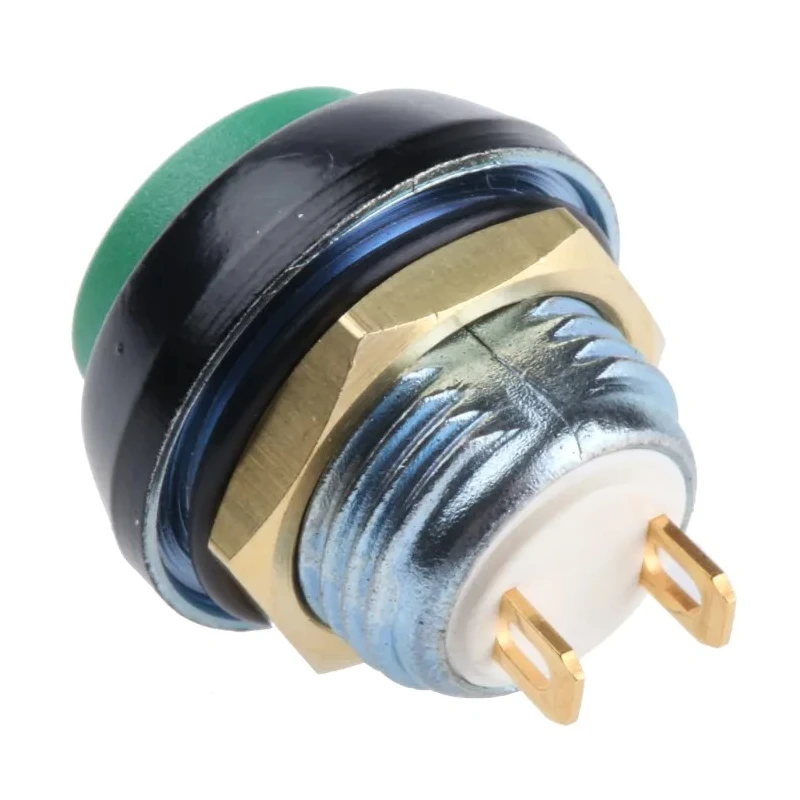

ITW Switches 59 Series Miniature Push Button Switch Panel Mount 14 mm Cutout Green SPST IP67 59-900090
Specifications
| Country of Origin | India |
|---|---|
| Brand | ITW Switches |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | 59 |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Cutout Diameter | 14mm |
| Push Button Colour | Green |
| Push Button Style | Round |
Key Features
- Features a panel mount with 14 mm diameter cutout ensuring easy installation.
- The SPST contact configuration provides a single-pole, single-throw switching action.
- Constructed with a green round push button for clear operator interface.
- Sealed to IP67 standard, providing dust tight and temporary immersion protection.
- Operates reliably over a wide temperature range from -40°C to 105°C.
- Switch body material options include non-spark zinc alloy or durable PBT plastic.
- Gold contacts ensure superior conductivity and long electrical life.
- Non-illuminated button variant reduces power consumption and complexity.
Product Description
ITW Switches 59-900090 is a miniature panel mounted push button switch designed for demanding environments, featuring a 14 mm cutout and a green round push button. It offers momentary action with a single-pole, single-throw (SPST) contact configuration suitable for various industrial and commercial applications.
This switch is panel sealed to IP67 standards, ensuring full protection against dust ingress and water immersion up to 1 meter depth for 30 minutes. It is rugged and impact resistant, ideal for use in communications equipment, military environments, instrumentation, data entry devices, and mass transport control panels.
The housing is available in either a non-spark zinc alloy or a molded polybutylene terephthalate (PBT) plastic body, both delivering durability and resistance to harsh conditions. Gold contacts provide reliable electrical performance and high longevity.
The switch is non-illuminated with a round green button and uses solder terminals for secure wiring. It can operate over an extended temperature range from -40°C up to 105°C. Its compact 14 mm cutout size allows installation into tight panel spaces and its design offers high environmental sealing to prevent contamination.
Panel mount push button switch with 14 mm cutout diameter. SPST configuration for simple on/off control. Green round styled push button. IP67 rated sealing for dust and water resistance. Operating temperature range from -40°C to 105°C.
Rugged construction using zinc alloy or PBT materials. Gold contacts for enhanced electrical reliability. Non-illuminated push button variant. Solder terminal connections. Suitable for industrial, military, instrumentation, communication, and mass transport applications.
This ITW Switches miniature push button switch belongs to the 59 Series, designed for high-reliability applications requiring compact size and environmental sealing. Browse the Electronics & Electricals category at EnvMart for more Push Button Switches and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch has an IP67 rating, providing full protection against dust ingress and temporary immersion in water up to 1 meter for 30 minutes.
This model requires a 14 mm cutout diameter for panel mounting.
It operates reliably over a wide temperature range from -40°C to 105°C.
It features a single-pole, single-throw (SPST) contact configuration suitable for simple on/off control.
The switch body can be made from either a non-spark zinc alloy or durable PBT plastic.
It uses solder terminals for secure wiring connections.
No, this model features a non-illuminated push button variant, which helps reduce power consumption and complexity.
The push button is green and has a round style for clear operator interface.
It complies with RoHS standards, ensuring it meets environmental regulations regarding hazardous substances.
This switch is suitable for various industrial and commercial applications, including communications equipment, military environments, and mass transport control panels.
Gold contacts provide superior conductivity and enhance the electrical reliability and longevity of the switch.
The country of origin for this switch is India.
