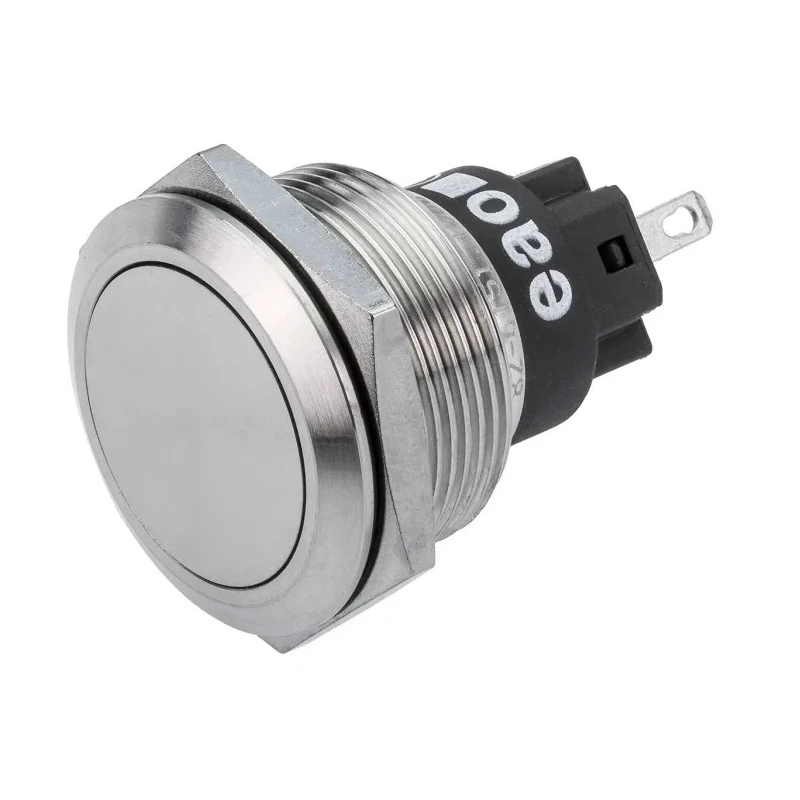

EAO 82 Series Silver Momentary Push Button Switch, Panel Mount, 22.3 mm Cutout, SPDT, IP65 IP67, 240V DC 36V AC 82-6651.1000

EAO 82-6651.1000 Push Button Switch is a high-quality momentary switch designed for panel mounting applications requiring robust performance and reliable operation. It features a silver actuator with a round style and a panel cutout size of 22.3 mm, making it suitable for various industrial control and automation tasks.

This switch has a single-pole double-throw (SPDT) contact configuration and a change-over (CO) switch configuration, enabling diverse circuit control options. Rated for 240 V DC and 36 V AC, it safely manages currents up to 3 amps.

Its IP65 and IP67 ingress protection ratings ensure it is dust tight and resistant to water jets and temporary immersion, supporting use in harsh environments such as exposed public areas like ticketing and vending machines, industrial machinery, elevators, and building security systems.

The switch provides excellent tactile feedback with a vandal and impact-resistant construction. It is engineered for a minimum operating temperature of -30°C and a maximum of 70°C, suitable for a wide range of climates.

Long-lasting durability is guaranteed with a service life exceeding one million cycles of operation. The switch is compliant with international safety standards including CB, CCC, cUL, and UL, ensuring reliability and peace of mind.

Applications include industrial automation, building management, lifting and moving equipment such as elevators and people movers, audio/video equipment, medical devices, and food industry environments where corrosion resistance is important.

This product helps meet strict industrial and commercial requirements for control panels and automation systems with proven quality and safety certifications. Its panel mounting style and silver actuator design allow for easy integration into existing switchboards and control stations.

The switch features a momentary operation type for temporary contact engagement. Silver-colored round actuator provides excellent tactile feedback and durability. Designed for panel mounting with a 22.3 mm diameter cutout.

Offers dual IP protection ratings IP65 and IP67 for ingress resistance to dust and water. Contact configuration SPDT and switch configuration CO allow versatile circuit switching. Can handle contact AC voltage up to 36 V and DC voltage up to 240 V with a contact current of 3 A.

Robust construction ensures vandal resistance and impact resistance for exposed public and industrial use. Operating temperature range from -30°C to 70°C supports harsh environments. Long service life supporting over 1 million operation cycles for industrial reliability.

Complies with CB, CCC, cUL, and UL safety standards for quality assurance. Explore the EAO Push Button Switch range and related industrial components at EnvMart for comprehensive solutions in electrical switching and control.
