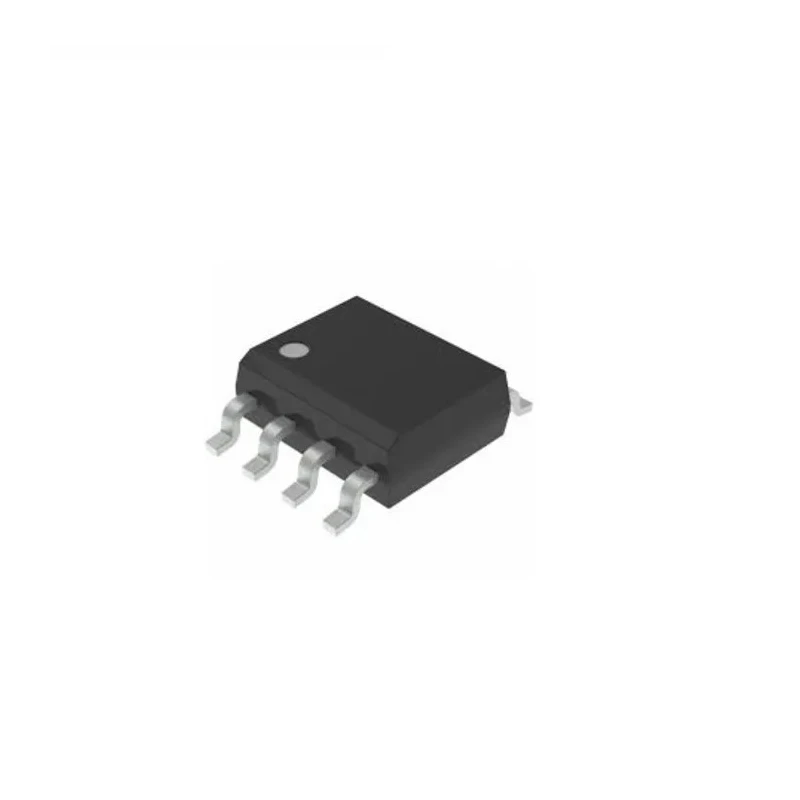

Microchip 16 kB Serial-SPI EEPROM 8-Pin SOIC 1.8-5.5V 20 MHz 80 ns AT25160B-SSHL-B
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Model | AT25160B-SSHL-B |
| Mount Type | Surface |
| Series | AT2516 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Memory size | 16kB |
| Interface Type | Serial-SPI |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Supply Current | 10mA |
| Maximum Clock Frequency | 20MHz |
| Organisation | 2K x 8 bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 80ns |
| Number of Words | 2k |
Key Features
- The device operates with a supply voltage range of 1.8V to 5.5V.
- Featuring an 8-pin SOIC surface mount package with a compact 1.5 mm height.
- Supports SPI modes 0 and 3 for communications.
- Offers a maximum clock frequency of 20 MHz and maximum random access time of 80 ns.
- Includes 32-Byte page mode and block write protection capabilities.
- Data retention is specified for 100 years, ensuring long-term reliability.
- Operating temperature ranges from -40°C to 85°C for robust environmental tolerance.
- Supply current of 10 mA and write protection via WP pin and instructions.
Product Description
Microchip AT25160B-SSHL-B is a 16 kB electrically erasable and programmable read-only memory (EEPROM) designed for low-power and low-voltage industrial and commercial applications. It features a Serial Peripheral Interface (SPI) compatible with modes 0 and 3, allowing flexible communication with microcontrollers and logic devices.
The device is packaged in a space-saving 8-lead SOIC package with a height of 1.5 mm and operates over a wide supply voltage range from 1.8 V to 5.5 V. It offers a maximum clock frequency of 20 MHz, ensuring fast data access with a maximum random access time of 80 nanoseconds.
Memory organization consists of 2,048 words of 8 bits each, supporting 32-byte page mode for efficient data writing. It includes hardware and software write protection features such as a write-protect (WP) pin and specific instructions to protect 1/4, 1/2, or the entire memory array.
Designed for reliability, the EEPROM has a guaranteed data retention time of 100 years and operates in industrial temperature ranges from -40°C to 85°C. Power consumption is optimized with a supply current of 10 mA during operations.
RoHS compliance ensures that the product meets strict environmental regulations. This EEPROM is ideal for industrial control systems, instrumentation, automotive electronics, consumer devices, and other embedded applications requiring persistent, rewritable non-volatile memory.
The device operates with a supply voltage range of 1.8V to 5.5V. Supports SPI modes 0 and 3 for serial communication. 32-byte page mode enables efficient block writes. Hardware and software write protection ensure data integrity.
Data retention guaranteed for 100 years under normal usage. Wide operating temperature range from -40°C to 85°C. Compact 8-pin SOIC package with low profile of 1.5 mm height. Low supply current of 10 mA facilitating power efficient design.
Compliant with RoHS environmental standards.
This Microchip EEPROM is supplied in a tube packaging, ready for insertion into machinery and manufacturing processes, improving production efficiency and integration. Explore more EEPROM products and semiconductor solutions from Microchip and related categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a memory size of 16 kB, organized as 2,048 words of 8 bits each.
The device operates with a supply voltage range of 1.8V to 5.5V.
It supports a maximum clock frequency of 20 MHz for fast data access.
The maximum random access time is specified at 80 ns.
It utilizes a Serial Peripheral Interface (SPI) compatible with modes 0 and 3.
The operating temperature range is from -40°C to 85°C.
The device is packaged in an 8-pin SOIC with a height of 1.5 mm.
It includes hardware and software write protection features, such as a write-protect (WP) pin and specific instructions to protect portions of the memory array.
The supply current during operation is 10 mA.
Yes, it is compliant with RoHS environmental standards.
It is supplied in tube packaging, ready for insertion into machinery and manufacturing processes.
It supports a 32-byte page mode for efficient block writes, allowing multiple bytes to be written in a single operation.
