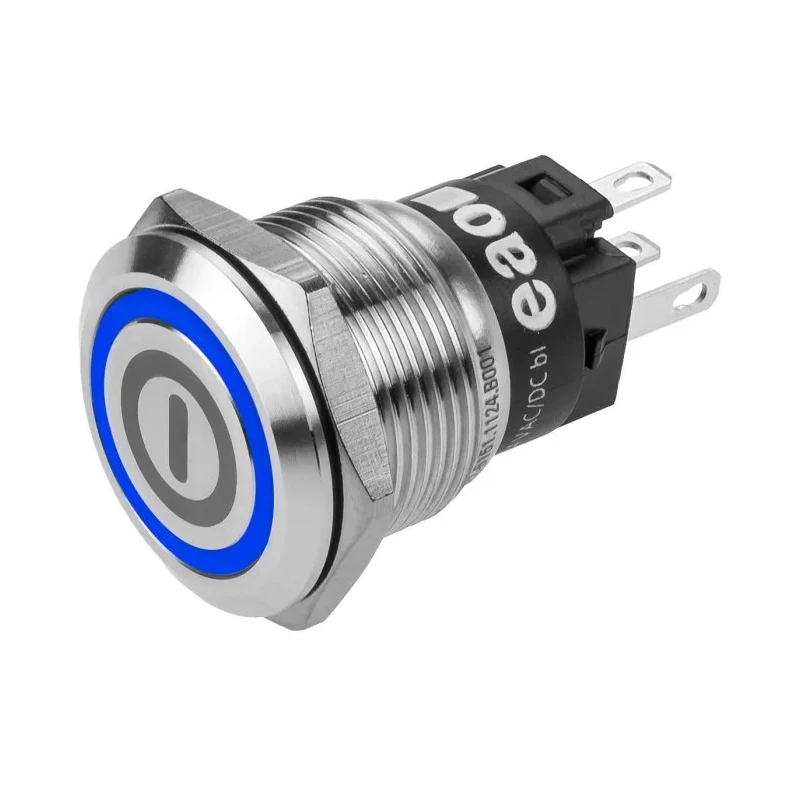

EAO Illuminated Push Button Switch Panel Mount Latching SPDT Blue LED IP65 IP67 19 mm Cutout 240 V dc 240 V 82-5151.2124.B001
Specifications
| Country of Origin | India |
|---|---|
| Brand | EAO |
| Length | 35.5mm |
| Model | 82-5151.2124.B001 |
| IP Rating | IP65, IP67 |
| Mount Type | Panel |
| Series | 82 |
| Industrial | Machinery and factory equipment |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Switch Configuration | CO |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 19 mm |
| Standards/Approvals | CB, CCC, cUL, UL |
| LED Colour | Blue |
| Switch Operation | Latching |
| Contact DC Voltage | 240V dc |
| Actuator Style | Round |
| Switch Contact Current | 3A |
| Contact AC Voltage | 240V ac |
| Legend | On-Off |
| Vandal-resistant | Impact resistant |
| Exposed public areas | e.g. ticketing and vending machines |
| Lifting and moving | Elevators and people movers |
| Building management | Access control and security systems |
Key Features
- The switch features a vandal-resistant, impact-resistant design for enhanced durability.
- It provides excellent tactile feedback with gold-plated silver contacts for low voltage and current applications.
- Rated for IP65 and IP67 ingress protection, ensuring suitability for harsh environmental conditions.
- Operating temperature range from -30°C to 70°C allows versatility in various industrial environments.
- The switch is suitable for exposed public areas, industrial machinery, lifting and moving equipment, building management, and medical equipment.
- Long service life exceeding 1 million operation cycles ensures reliability in continuous usage.
- Actuator style is round with a center-off (CO) switch configuration and On-Off legend.
- The mounting type is panel with a cutout size of 19 mm and length of 35.5 mm.
Product Description
EAO 82-5151.2124.B001 Illuminated Push Button Switch is a high-quality, latching panel mount switch designed for demanding industrial and commercial applications. Featuring a round actuator with a blue LED indicator, this switch is designed to operate at 240 volts dc and 240 volts ac, with a single pole double throw (SPDT) contact configuration.
The switch offers superior vandal resistance and impact protection, making it ideal for exposed public areas such as ticketing and vending machines. It also finds extensive use in industrial machinery, factory equipment, elevator systems, access control, security systems, audio and video equipment, medical devices, and food industry applications due to available corrosion and acid-resistant variants.
This push button switch is rated IP65 and IP67 for ingress protection, ensuring protection against dust and water jets. It operates reliably within a broad temperature range from -30°C to 70°C and includes gold-plated silver contacts for superior low voltage and current switching performance. The product is part of the renowned EAO 82 series, known for its robustness and long service life exceeding 1 million operations.
The switch measures 35.5 mm in length and requires a 19 mm cutout in the mounting panel. Its center-off (CO) switch configuration with On-Off legend ensures clear operational status. Mounting is via the panel, providing secure installation in various control panels.
The switch is vandal-resistant and impact-resistant. It features blue LED illumination for clear indication. The switch supports both 240 V dc and 240 V ac operation. Rich applications include industrial machinery, building management, and public access systems.
Long operating life and excellent tactile feedback ensure reliable performance.
This EAO push button switch is designed for use in industrial, laboratory, construction, HVAC, manufacturing, water treatment, agricultural, commercial, and medical equipment environments. The durable design and multiple approvals including CB, CCC, cUL, and UL, make it a trusted choice for control and signaling applications.
Explore more EAO Push Button Switches and components at EnvMart for your industrial and electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a single pole double throw (SPDT) contact configuration.
The maximum operating temperature for this model is 70°C.
This switch requires a panel cutout size of 19 mm for installation.
It is rated for IP65 and IP67 ingress protection, ensuring suitability for harsh environmental conditions.
This model operates at 240 V dc and 240 V ac.
The actuator style is round, featuring a center-off (CO) switch configuration.
It is suitable for applications in industrial machinery, building management, access control, and public areas like ticketing and vending machines.
The switch measures 35.5 mm in length.
The switch has a service life exceeding 1 million operation cycles, ensuring reliability in continuous usage.
This model has multiple approvals including CB, CCC, cUL, and UL.
It provides excellent tactile feedback with gold-plated silver contacts for low voltage and current applications.
Yes, it features a vandal-resistant and impact-resistant design for enhanced durability.
