Baumer EAM580 Series Magnetic Absolute Encoder 30V dc, Push Pull Signal, Solid Shaft 6 mm EAM580

Free Delivery in India | Lowest Global Shipping Charges

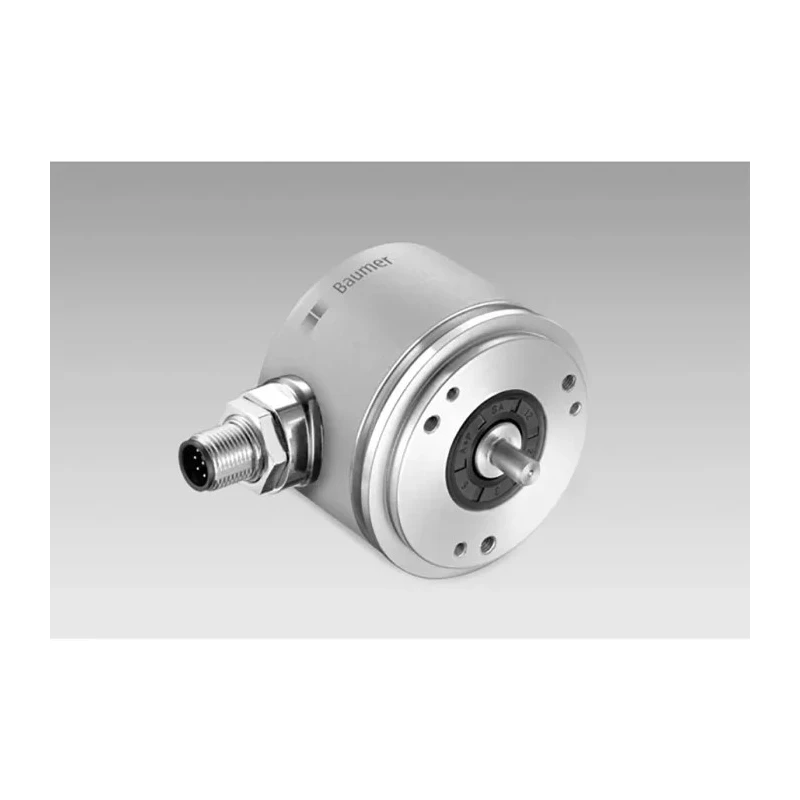

Baumer EAM580 Series Magnetic Absolute Encoder 30V dc, Push Pull Signal, Solid Shaft 6 mm EAM580

Name: Baumer EAM580 Series Magnetic Absolute Encoder 30V dc, Push Pull Signal, Solid Shaft 6 mm EAM580
Brand: Baumer
SKU: 304496
Price: 788.36 USD
Availability: InStock



Category Absolute Encoder Brand Baumer Condition New

Specifications

Country of Origin	Switzerland
Brand	Baumer
Model	EAM580
IP Rating	IP67
Mount Type	Synchro Flange Mount
Series	EAM580
Overall Width	58mm
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Shaft Diameter	6mm
Overall height	58mm
Switching Frequency	350kHz
Shaft Type	Solid
Terminal type	Cable
Interface Type	CAN Open
Maximum Supply Voltage	30V dc
Overall Depth	39mm
Encoder Technology	Magnetic
Maximum Revolutions	6000rpm
Output Signal Type	Push Pull

Key Features

Employs magnetic encoder technology ensuring reliable angular accuracy.
Supports up to 6000 rpm maximum revolutions.
Equipped with a synchro flange mount for secure installation.
High IP67 protection rating for resistance against dust and water ingress.
Operates over a temperature range from -40°C to 85°C for rugged environments.
Features a switching frequency of 350 kHz supporting fast response signals.
Solid shaft type with a diameter of 6 mm enhances mechanical robustness.
Interface type includes CAN Open protocol for flexible industrial connectivity.

Product Description

Baumer EAM580 Series Magnetic Absolute Encoder EAM580 delivers accurate, robust performance with 30V dc power supply and a solid 6 mm diameter shaft. Designed to provide precise angular positioning with a magnetic sensing technology, this encoder supports single- or multi-turn absolute position readings ideal for advanced automation and motion control systems.

The product features a high protection rating of IP67, making it resistant to dust and water, and is built to sustain challenging operational conditions with a temperature range from -40°C up to 85°C. Its sturdy synchro flange mount and solid shaft ensure reliable mechanical stability in industrial applications.

This encoder facilitates a push-pull output signal and supports CAN Open interface protocol, enabling seamless integration into modern industrial networks. Operating up to 6000 rpm with a switching frequency of 350 kHz, it ensures responsive and precise signal transmission necessary for dynamic motion control processes.

The Baumer EAM580 encoder's compact dimensions (58 mm height and width, 39 mm depth) and solid shaft specification deliver versatility for use in manufacturing, robotics, HVAC, process control, and other industrial automation domains. Its electronic gear function and high resistance to shock and vibration further enhance its suitability for demanding operational environments.

Employs magnetic encoder technology ensuring reliable angular accuracy. Supports up to 6000 rpm maximum revolutions. Equipped with a synchro flange mount for secure installation. High IP67 protection rating for resistance against dust and water ingress.

Operates over a temperature range from -40°C to 85°C for rugged environments. Features a switching frequency of 350 kHz supporting fast response signals. Solid shaft type with a diameter of 6 mm enhances mechanical robustness.

Interface type includes CAN Open protocol for flexible industrial connectivity. Cable terminal type enables straightforward wiring integration. This Baumer encoder series is manufactured in Switzerland, ensuring premium build quality.
