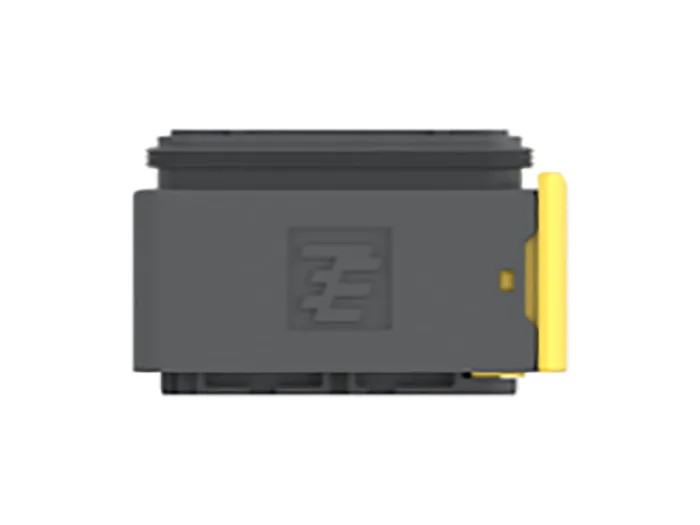

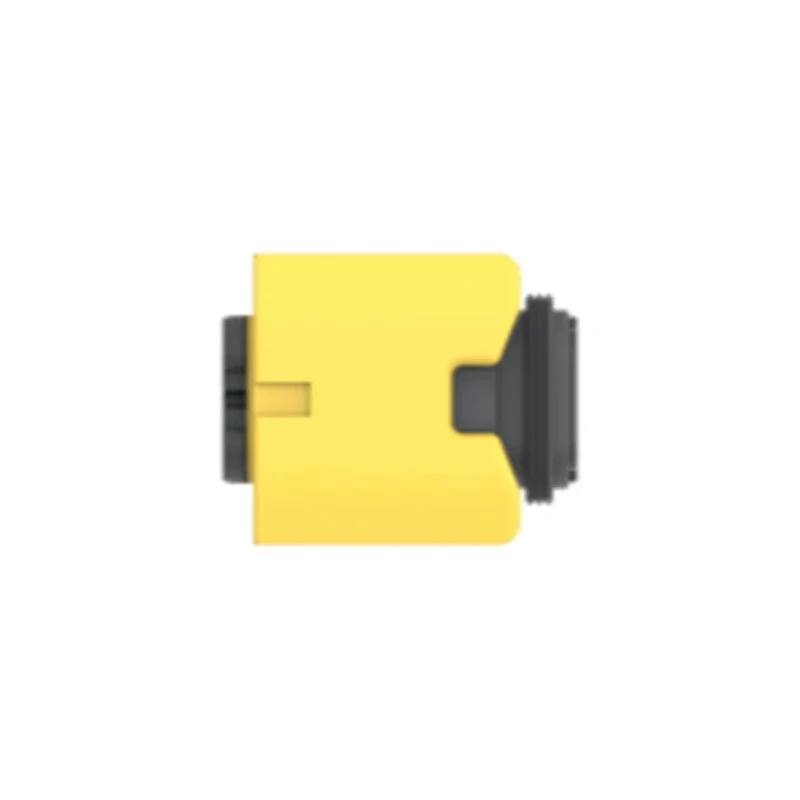

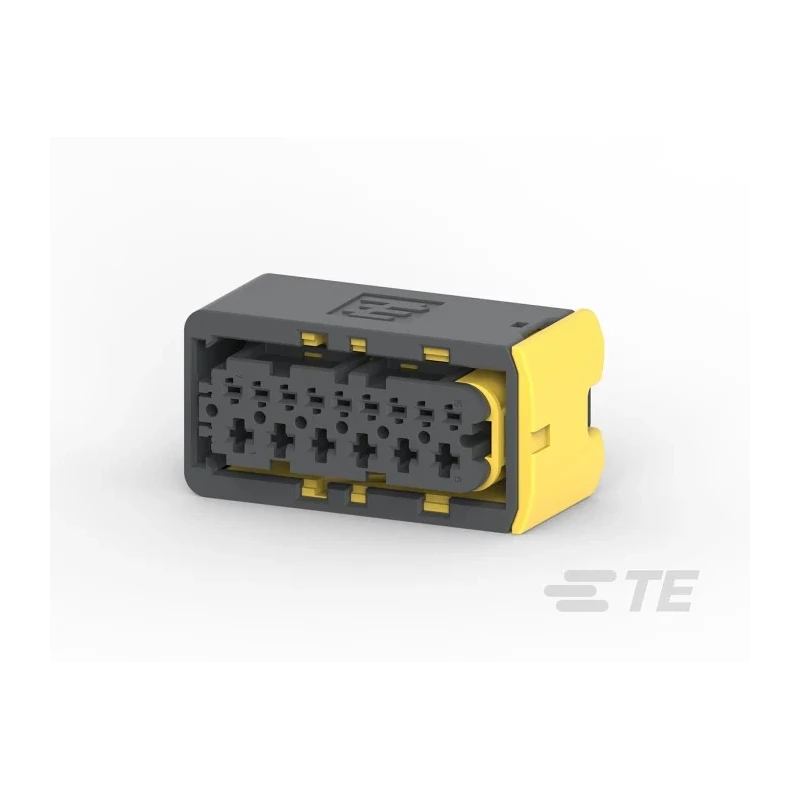

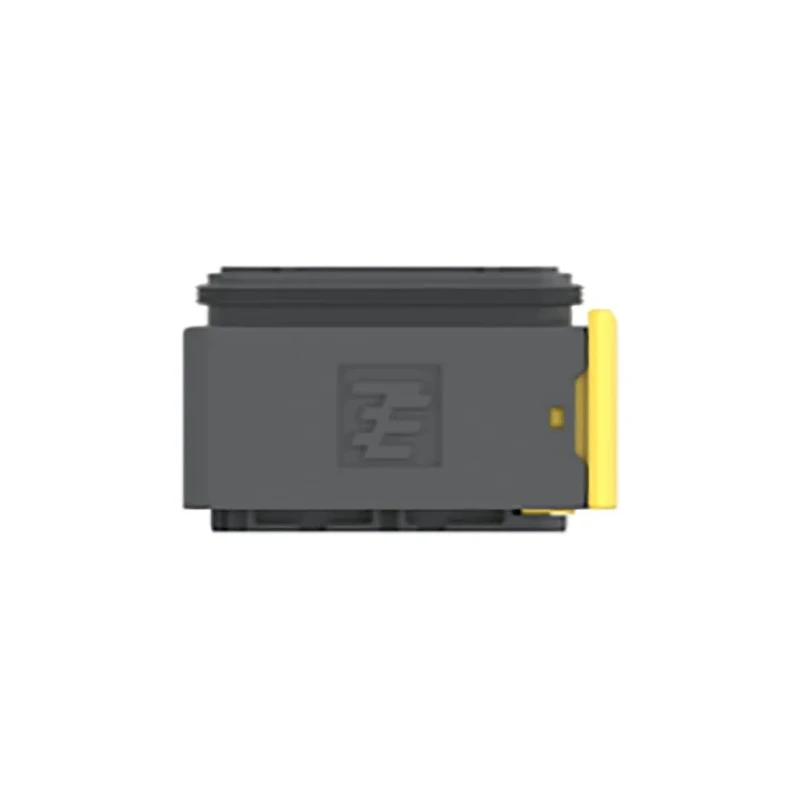

TE Connectivity HDSCS Automotive Connector Female Black Cable 15 Way Crimp Termination 20-40A 1-1563878-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Current | 20, 40A |
| Height | 25.7mm |
| Depth | 31.3mm |
| IP Rating | IP67, IP6K9K |
| Width | 51.2mm |
| Gender | Female |
| Mount Type | Cable |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | HDSCS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 140°C |
| Sub Type | Receptacle Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | EU ELV, EU RoHS |
| Contact Plating | Tin |
| Number of Contacts | 15 |
Key Features
- This connector features 15 contacts arranged over 2 rows for reliable connectivity.
- The crimp termination type ensures secure cable attachment without soldering.
- The connector supports current ratings up to 20 and 40 amps for high power circuits.
- Its black housing is made of fibreglass reinforced polybutylene terephthalate, providing mechanical strength.
- Rated IP67 and IP6K9K, it offers high resistance to dust and water ingress.
- Rated temperature range from -40°C to 140°C supports automotive environmental conditions.
- Contact plating is tin, providing corrosion resistance and conductivity.
- Mounting type is cable, suitable for cable to cable or cable to device connections.
Product Description
TE Connectivity 1-1563878-1 HDSCS automotive connector female black cable 15 way crimp termination is a robust, environmentally sealed receptacle housing designed for demanding automotive electrical wiring applications.
This connector supports up to 15 contacts organized in 2 rows, providing multi-circuit connectivity with crimp termination for secure cable attachment. It supports current ratings of 20 and 40 amperes, making it suitable for both low and higher power automotive circuits.
The black housing is constructed from fibreglass reinforced polybutylene terephthalate, offering mechanical durability and resistance to automotive vibrations and contaminants. Its tin-plated contacts ensure reliable electrical performance and corrosion resistance.
Environmental sealing is rated to IP67 and IP6K9K standards, protecting against dust, water jets, and high pressure wash-downs that are common in automotive and industrial conditions. It operates reliably within a wide temperature range from -40°C to +140°C.
Mounting is cable type, intended for cable-to-cable or cable-to-device connections with a slide lock for secure mating. The connector’s compact dimensions of 51.2 mm width, 25.7 mm height, and 31.3 mm depth enable integration in constrained spaces.
This automotive connector is ideal for use in industrial vehicle wiring harnesses, heavy-duty machinery, construction equipment, and other demanding automotive applications. The HDSCS series from TE Connectivity is known for its durability, environmental resistance, and flexibility supporting multiple ampacity levels and contact arrangements.
Compliance with EU ELV and EU RoHS directives ensures environmental safety and regulatory adherence. Black colour and rugged housing material offer visual and physical robustness suited for harsh environments. Applications include automotive manufacturing, heavy vehicle assembly, industrial equipment wiring, and replacement or upgrade of vehicle connectors.
For professional electrical and automotive connector solutions, explore related products in the 'Automotive Connectors' category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports current ratings of 20 and 40 amperes, making it suitable for both low and higher power automotive circuits.
It is rated IP67 and IP6K9K, providing high resistance to dust and water ingress, suitable for demanding automotive and industrial conditions.
The housing is made of fibreglass reinforced polybutylene terephthalate, which offers mechanical strength and durability.
The dimensions are 51.2 mm in width, 25.7 mm in height, and 31.3 mm in depth.
It features a crimp termination type, ensuring secure cable attachment without the need for soldering.
It operates reliably within a temperature range from -40°C to +140°C, suitable for automotive environmental conditions.
This connector has 15 contacts arranged over 2 rows, providing multi-circuit connectivity.
The mounting type is cable, designed for cable-to-cable or cable-to-device connections.
It complies with EU ELV and EU RoHS directives, ensuring environmental safety and regulatory adherence.
The contacts are tin-plated, providing corrosion resistance and reliable electrical performance.
This connector is manufactured in India.
It is ideal for automotive manufacturing, heavy vehicle assembly, industrial equipment wiring, and replacement or upgrade of vehicle connectors.
