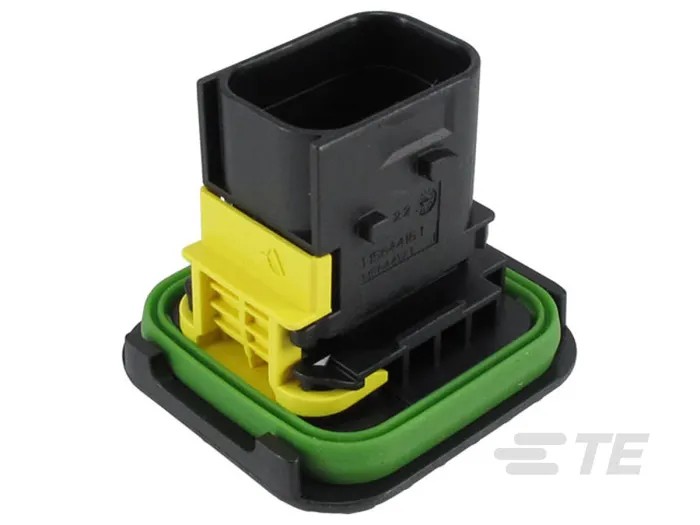

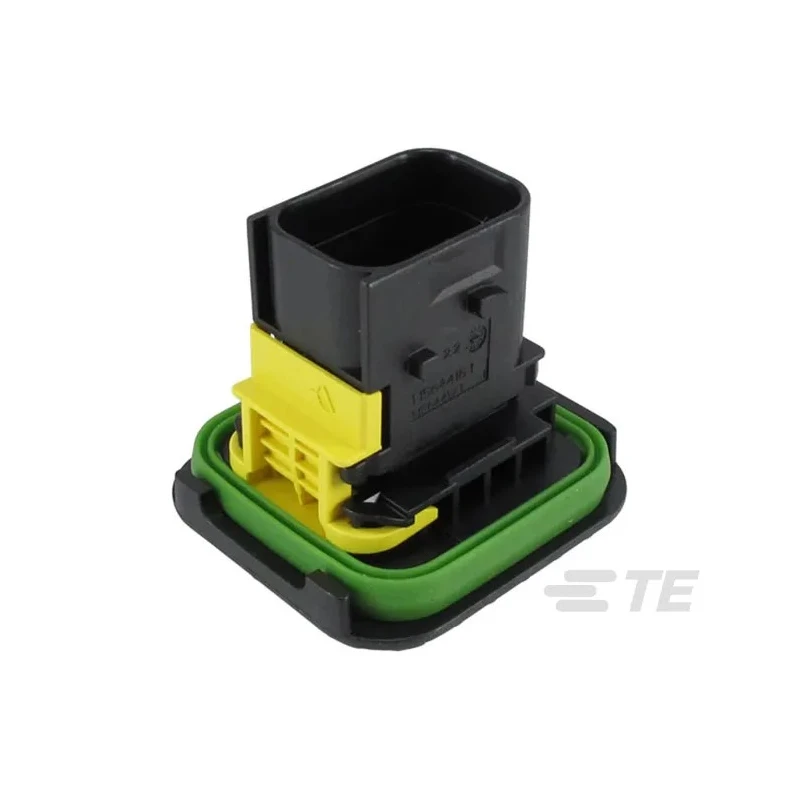

TE Connectivity HDSCS Automotive Connector Female Black Flange 8 Way Crimp Termination 1-1564416-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Current | 20A |
| Height | 27mm |
| Depth | 47.1mm |
| IP Rating | IP67, IP6K9K |
| Width | 32.6mm |
| Gender | Female |
| Mount Type | Flange |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | HDSCS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 140°C |
| Sub Type | Tab Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | EU ELV, EU RoHS |
| Contact Plating | Tin |
| Number of Contacts | 8 |
Key Features
- Heavy-duty, environmentally sealed connector rated IP67 and IP6K9K.
- Features a black fibreglass reinforced polybutylene terephthalate housing for durability.
- Designed for flange mount with 8 female contacts in 2 rows.
- Supports crimp termination style with tin-plated contacts rated for 20 amps current.
- Operates from -40°C up to 140°C temperature range for automotive environments.
- Meets EU ELV and EU RoHS standards for electrical safety and environmental compliance.
- Slide lock mechanism ensures secure mating with compatible connectors.
Product Description
TE Connectivity 1-1564416-1 HDSCS Automotive Connector female flange 8 way crimp termination is a robust and reliable electrical connector designed for demanding automotive applications. The connector features a black fibreglass reinforced polybutylene terephthalate housing that provides mechanical strength and chemical resistance, ensuring durability in harsh automotive environments. It offers environmental sealing rated at IP67 and IP6K9K to protect against dust, water, and high-pressure washdown.
The connector has 8 female contacts arranged in 2 rows with crimp termination compatible with AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts. The tin-plated contacts carry up to 20 amps of current, supporting reliable electrical performance for automotive wiring harnesses. The flange mounting type facilitates secure attachment to devices or panels.
Operating over a wide temperature range from -40°C to 140°C, this connector complies with EU ELV and EU RoHS directives, ensuring environmental and safety standards are met. Its slide lock mechanism provides positive locking and mating retention to prevent accidental disconnection during operation.
This connector is ideally suited for industrial, automotive electrical wiring, manufacturing, and repair applications requiring robust, sealed, and durable connectors. The high level of protection and quality materials make it reliable for long-term use in vehicles, marine, and industrial machinery.
Heavy-duty environmentally sealed design with IP67 and IP6K9K ratings. Fibreglass reinforced polybutylene terephthalate housing ensures durability. Flange mount type with 8 female contacts arranged in 2 rows. Crimp termination style with tin-plated contacts supporting 20A current.
Wide operating temperature range from -40°C to 140°C. Complies with EU ELV and RoHS standards for safety and environment. Slide lock mechanism for secure mating and disconnection prevention. Discover more automotive electrical connectors and components to optimize your vehicle's wiring systems in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This automotive connector is rated for a maximum current of 20 amps.
It uses a crimp termination style with tin-plated contacts.
The connector operates within a temperature range of -40°C to 140°C.
This model features 8 female contacts arranged in 2 rows.
The housing is made of fibreglass reinforced polybutylene terephthalate, providing mechanical strength and chemical resistance.
It has environmental sealing rated at IP67 and IP6K9K, protecting against dust and water.
This connector is designed for flange mounting, ensuring secure attachment to devices or panels.
It complies with EU ELV and EU RoHS standards for electrical safety and environmental compliance.
The depth of this connector is 47.1mm.
The width of this connector is 32.6mm.
The height of this model is 27mm.
It is suitable for industrial, automotive electrical wiring, manufacturing, and repair applications requiring robust and sealed connectors.
